7.8.11.9. Application of Logical channel in the Profile/timer mode
See also: Chapter 7.12. PROFILES/TIMERS.
Task:
Create the Profile/timer in the logical channel 1 in the edge (once) triggering mode.
The trigger source is the logical channel 2 which is connected to the current input from UI4
module. The profile consists of 4 sections: 1. ramp from 0 to 10 in 5 seconds, 2. constant
value 8 in 2 seconds, 3. ramp from 8 to 4 in 3 seconds and 4. constant value 4 in 1 seconds.
The idle value is 0 and looping is disabled.
Solution:
First configure the device as follows. Then connect the current converter to the UI4
module as it is shown in
Fig. 7.63
(see also
Appendices 8.2. UI4, UI8, UI12, U16, U24, I16,
I24 – VOLTAGE and CURRENT MEASUREMENT MODULES
).

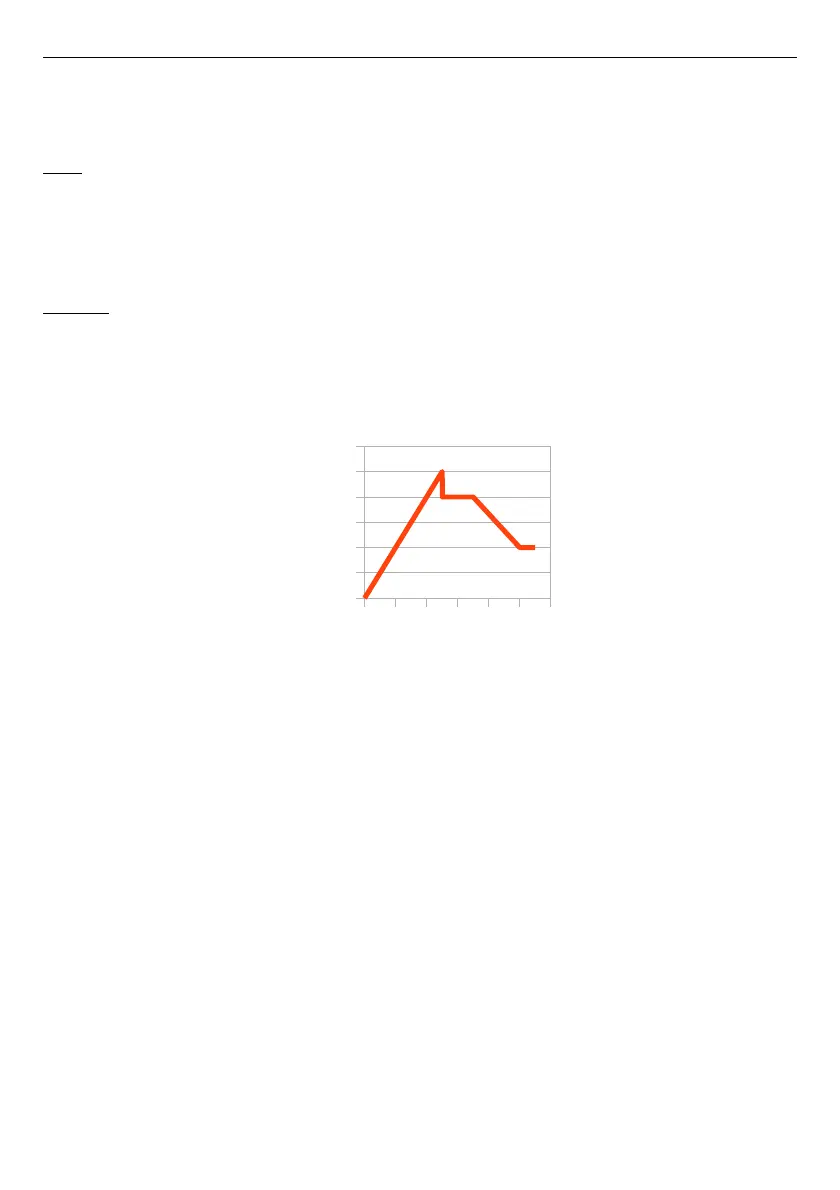

Fig. 7.79. Example of Profile waveform
For the logical channel in the Profile/timer mode:
– touch the screen and press the
Menu
button,
– press the
Device configuration
button,
– enter the
Logical channels
menu,
– using the arrows in the top navigation bar, select any
logical channel
such as 1,
– in the
Name
parameter write
Profile
,
–
Mode
parameter set as
Profile/timer
,
–
Source
parameter set as
P/T1:”Profile 1”
,
– press the
Configure source
button,
•
Mode
parameter set as
edge (once)
,
•
Triggering source
parameter set as
Log.ch.2
,
• in the
Idle value
parameter write
0
,
• press the
Section list
button,
◦ press the green button at the bottom left side of the screen,
◦
Section num.
parameter should be set as
1
,
– in
Duration
parameter write
0
,
–
Unit
parameter set as
second
,
144
0 2 4 6 8 10 12
0
2
4
6
8
10
12
Time [s]
Value
