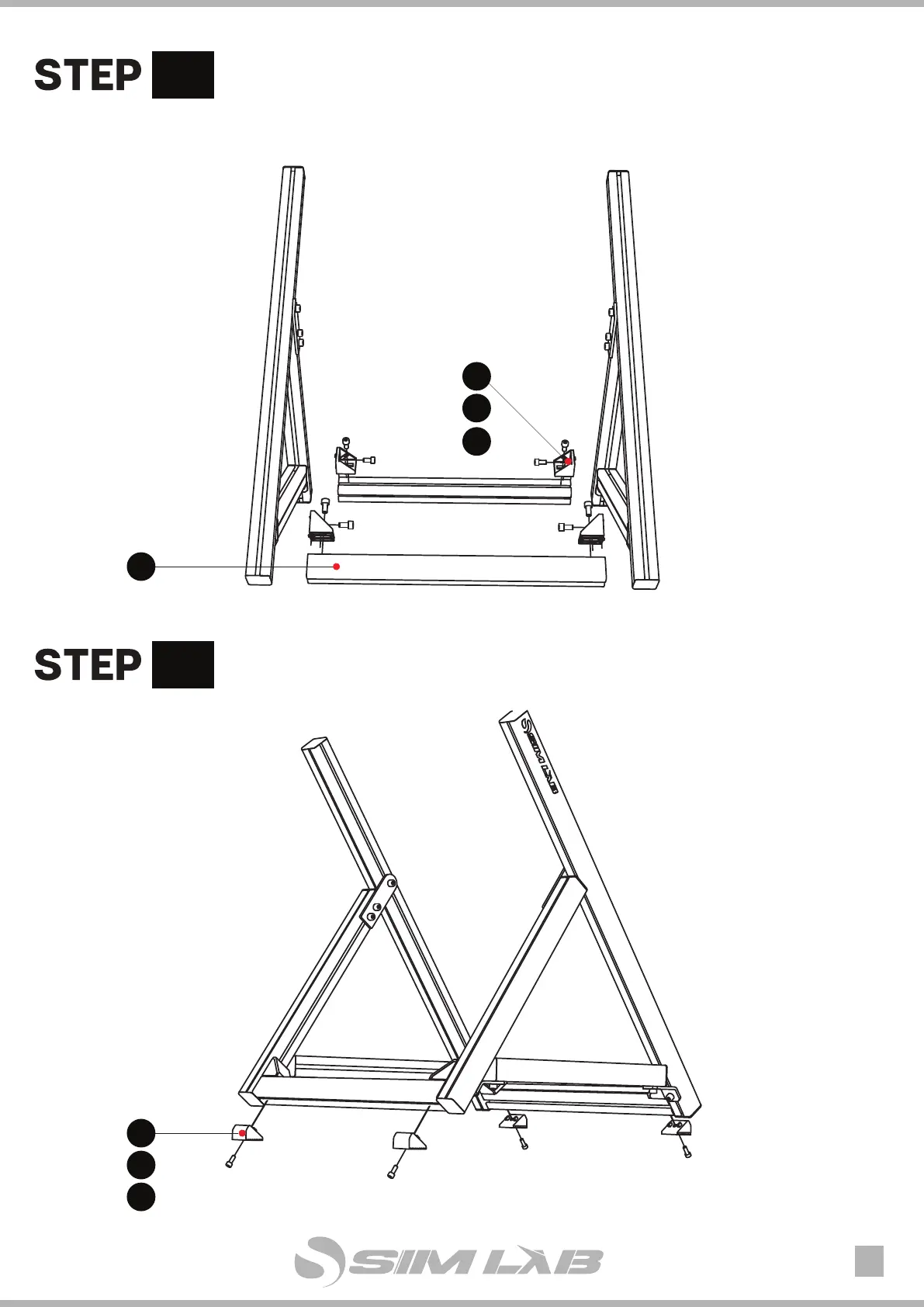

The Sim-Lab WS-PRO Wheel Stand is a robust and versatile racing simulator cockpit designed to provide a stable and adjustable platform for steering wheels, pedals, and a seat. This instruction manual outlines the assembly process for the WS-PRO Wheel Stand and its optional seat support, detailing each step with clear diagrams and a comprehensive parts list.

Function Description:

The WS-PRO Wheel Stand serves as the foundational structure for a racing simulator setup. Its primary function is to securely mount a steering wheel, pedal set, and an optional racing seat, allowing users to create an immersive and ergonomic sim racing experience. The design emphasizes adjustability to accommodate various user preferences and equipment configurations. The stand is constructed from high-quality aluminum profiles, ensuring durability and rigidity during intense racing sessions. The modular nature of the design, utilizing T-slot aluminum profiles, allows for future expansion and customization.

Important Technical Specifications:

The WS-PRO Wheel Stand is primarily built using 40mm slot 8 aluminum profiles, specifically the 40x40L3N type, which indicates a 40mm by 40mm profile with 3 sides having a T-slot and a lightweight core. Different lengths of these profiles are used for various sections of the stand:

A1: Profile 40mm slot 8 (Black, 40x40L3N) - 450mm (2 units)
A2: Profile 40mm slot 8 (Black, 40x40L3N) - 500mm (4 units)
A3: Profile 40mm slot 8 (Black, 40x40L3N) - 850mm - Engraved (2 units)

For the optional WS-PRO seat support, additional profiles are utilized:

C1: Profile 40mm slot 8 (Black, 40x40L3N) - 150mm (2 units)
C2: Profile 40mm slot 8 (Black, 40x40L3N) - 500mm (2 units)
C3: Profile 40mm slot 8 (Black, 40x40L3N) - 500mm - Engraved (1 unit)
C4: Profile 40mm slot 8 (Black, 40x40L3N) - 750mm - Engraved (2 units)

The hardware kit includes various brackets, end caps, and fasteners to assemble the profiles. Key components include:

B1: Wheel deck bracket (1 unit)
B2: Pedal deck bracket (1 unit)
B3: Upright sandwich plate (2 units)
B4: Base sandwich plate (4 units)
B5: Corner bracket 4040F + Cover cap (4 units)
B6: End cap profile (40x40L) (12 units)
B7: Slot 8 nut (M6) (4 units)
B8: Slot 8 nut (M8) (32 units for wheel stand, 30 units for seat support)
B9: Bolt - DIN 912 (Black steel, 16mm, M8) (32 units for wheel stand, 30 units for seat support)
B10: Bolt - DIN 912 (Black steel, 16mm, M6) (4 units for wheel stand, 2 units for seat support)
B11: Washer (Black steel, M8, Plain black) (4 units)
B12: Wheelstand Rubber feet (4 units for wheel stand, 2 units for seat support)

For the seat support hardware, additional components are provided:

D1: Seat addon angled plate (4 units)
D2: Corner Bracket 4040F + Cover cap (6 units)
D3: End cap profile (40x40L) (8 units)
D4: Slot 8 nut (M6) (2 units)
D5: Slot 8 nut (M8) (30 units)
D6: Bolt - DIN 912 (Black steel, 16mm, M8) (30 units)
D7: Bolt - DIN 912 (Black steel, 16mm, M6) (2 units)
D8: Wheelstand Rubber feet (2 units)

The total estimated assembly time for the cockpit is 2-3 hours. The required tools are simple: a 5mm and 6mm hex key (Allen wrench).

Usage Features:

The WS-PRO Wheel Stand is designed for ease of use and adjustability.

Modular Design: The use of T-slot aluminum profiles allows for flexible mounting of various peripherals and future upgrades. Components can be slid along the slots and secured, offering precise positioning.
Adjustable Pedal Deck: The pedal deck can be adjusted to different angles and distances, allowing users to find their optimal driving position for comfort and performance.
Adjustable Wheel Deck: The wheel deck provides a stable mounting point for steering wheels and can be adjusted in height and angle to suit different users and wheel bases.
Optional Seat Support: The WS-PRO can be expanded with a dedicated seat support frame, transforming it into a full cockpit. This frame also offers adjustability for seat position and angle.
Rubber Feet: The inclusion of rubber feet (B12 for the wheel stand, D8 for the seat support) ensures stability and prevents the stand from sliding during use, while also protecting floor surfaces.
Engraved Profiles: Specific profiles (A3, C3, C4) are engraved, likely for branding or to assist in orientation during assembly.

Maintenance Features:

Maintenance for the WS-PRO Wheel Stand is minimal due to its robust aluminum construction.

Durable Materials: The black anodized aluminum profiles are resistant to corrosion and wear, ensuring a long lifespan.
Simple Cleaning: The smooth surfaces of the aluminum profiles can be easily wiped clean with a damp cloth to remove dust or grime.
Fastener Checks: Periodically, it is advisable to check all bolts and nuts (M6 and M8) to ensure they remain tight, especially after initial assembly and heavy use. This prevents any loosening that could affect the rigidity and stability of the stand.
Component Replacement: In the event of damage, individual aluminum profiles, brackets, or fasteners can be replaced due to the modular nature of the T-slot system. Sim-Lab's product page (https://sim-lab.eu/shop/product/ws-pro-wheel-stand-1118) and customer support (info@sim-lab.eu) can provide assistance with replacement parts.
Tool Accessibility: The use of common hex keys (5mm and 6mm) for assembly and adjustments means that users can easily perform maintenance or reconfigurations without requiring specialized tools.

Overall, the Sim-Lab WS-PRO Wheel Stand is a high-quality, adaptable, and user-friendly solution for sim racing enthusiasts, offering a solid foundation that can evolve with their needs.
