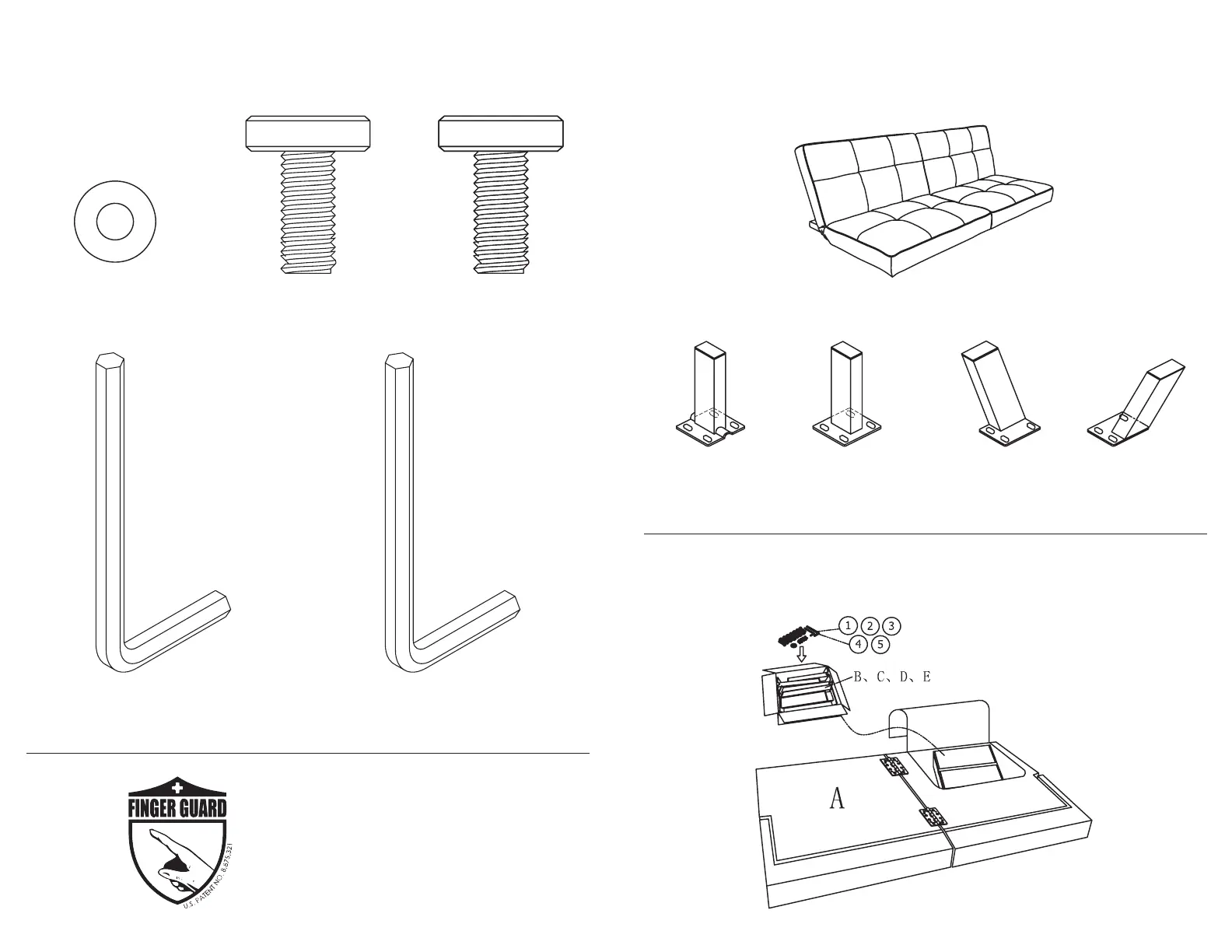

PARTS
A. SOFA BODY
1X
PLEASE NOTE: Color variation of WOOD ARMS is part of the natural beauty
of this product. To ensure the lasting beauty of your futon,
please use furniture polish on all wood surfaces.
B. CENTER
SUPPORT LEG
2X
C. BACK LEG
2X
D. LEFT FRONT LEG
1X
E. RIGHT FRONT LEG
1X
2-4 3-4
HARDWARE
Please do not completely tighten any screws until the entire assembly is complete.
Once assembly is complete, please be sure to tighten all hardware.
1. WASHER
14X
3. BOLT 1/4 X 1/4
8X
4. 5 MM ALLEN KEY
1X
2. BOLT 5/16 X 1
14X
5. 4 MM ALLEN KEY
1X
1
Flip Sofa Body (A) over.
Pull out Hardware and Parts from the zippered compartment.
FINGER GUARD
• U.S. Patent No. 8,875,321
• Provides Users a Permanent Safety Solution
• Eliminates the Risk & Liability of an Accident
• Heavy Duty, Fully Welded, Protective Metal Plate
