Page 13
disegno 2
• Measure the bearing seating, which must not be lower than the height limit:
24.98mm
• Check with a feeler gauge that the axle slack of the connecting-rod between the two
semi shaft, which must not exceed the height limit: 0.7mm

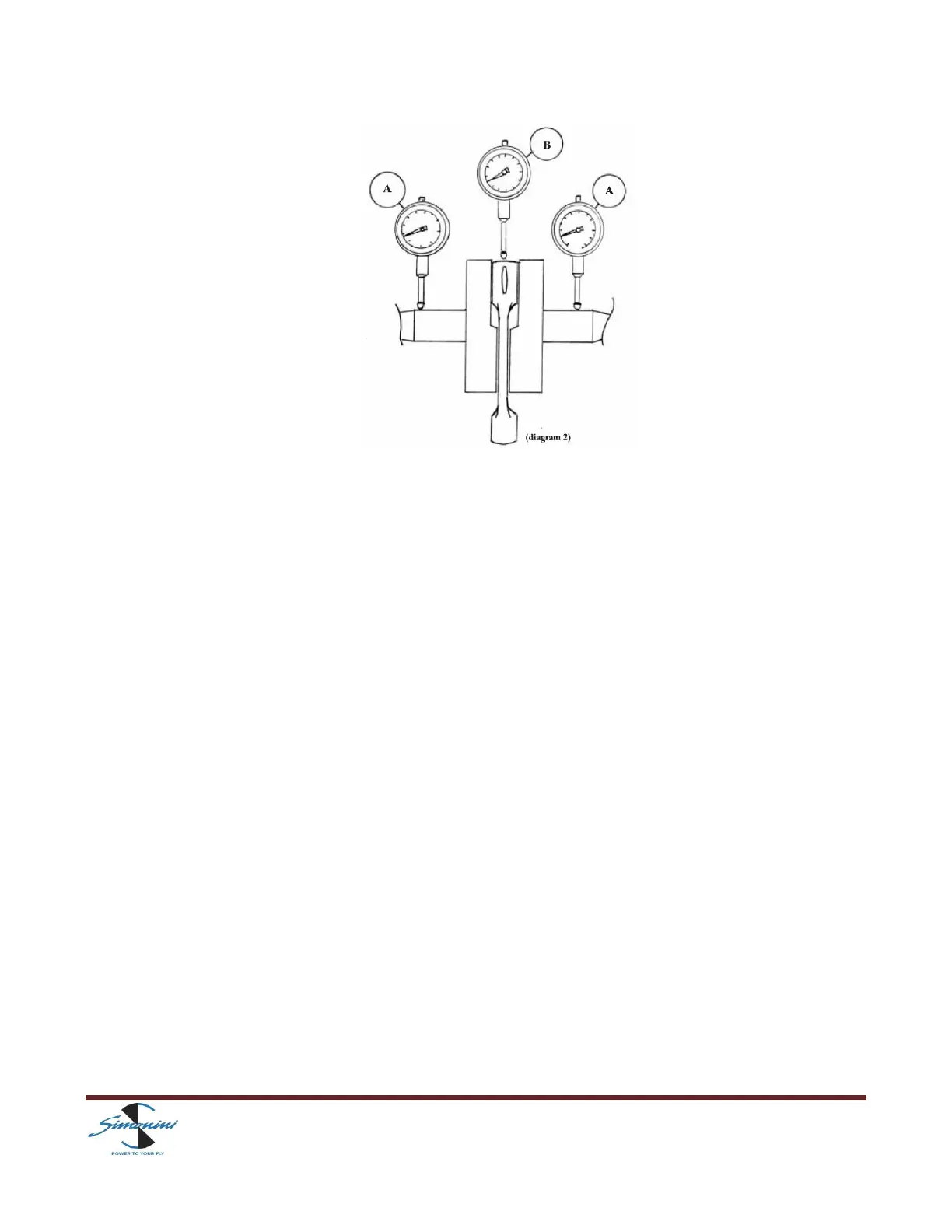

• Check the radial slack of the connecting rod on the coupling axle which must not
exceed the height limit: 0.05mm. This is detected by placing a comparator (B), as
shown in diagram 2, and moving the connecting rod vertically. The slack shown by the
comparator is assessed. Measure the diameter of the hole in the connecting-rod foot.
Height limit: 20.00mm
• Reed valve: Verify that between the frame and the reeds there is no space(diagram 3)
Height limit: 0.2mm.
