Inovo
®
Top Hung Screen
Installation Instructions
Simonton.com/installation
Effective Date: 4/24/17
INOVO
®
TOP HUNG SCREEN
INSTALLATION INSTRUCTIONS
Effective Date: 4.24.17

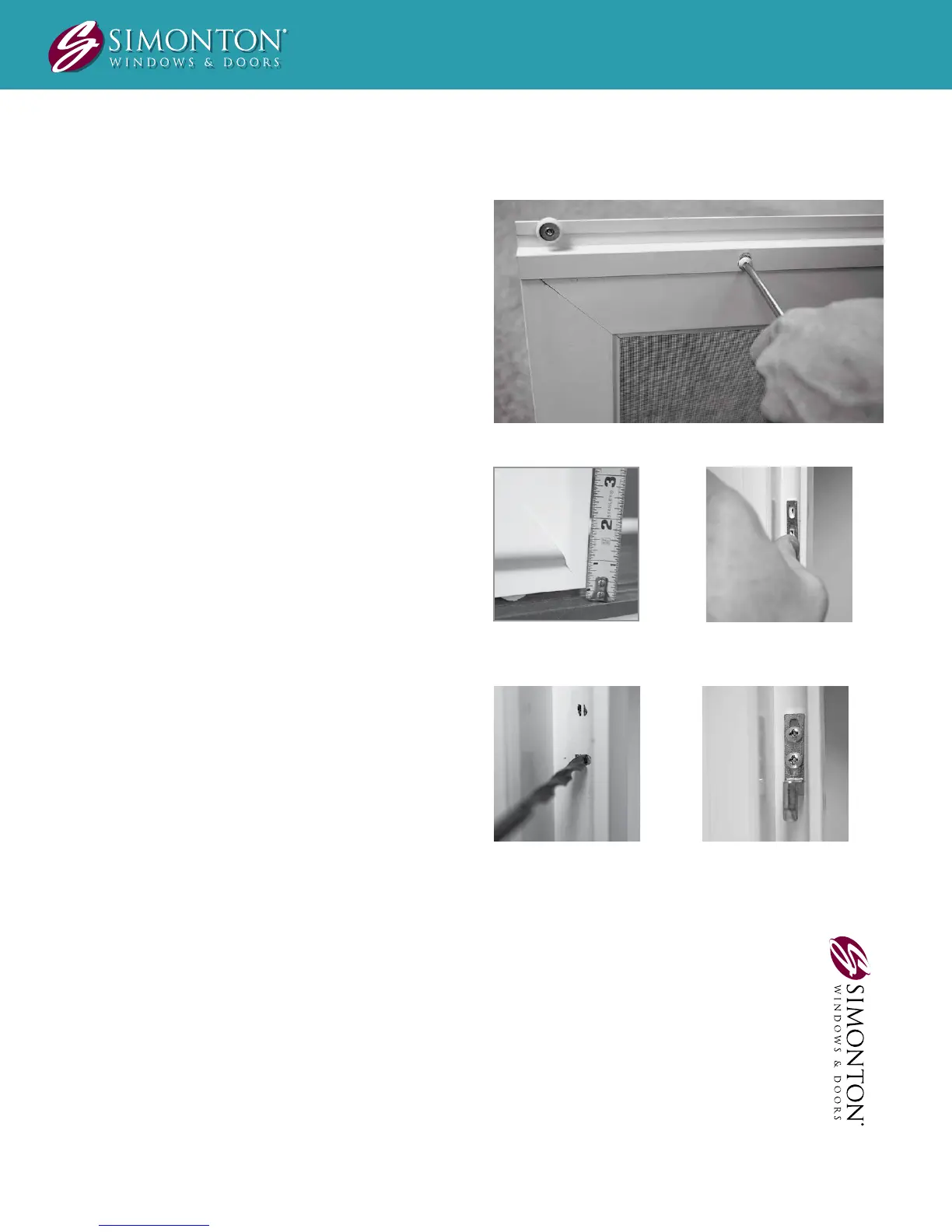

4. Screen Adjustment
Due to manufacturing tolerances and other
factors, the Inovo patio door screen is
designed with an ability to adjust the height.
Primary adjustment is achieved by loosening
or tightening the two screws.
a) Loosen the two screws and lower the
screen (Fig 8) until the bottom of the screen
is approximately 1/4” – 5/16” from the
sill. (Fig 9)
b) Retighten the screws.
c) In rare instances, further adjustments may
be needed. Call 1-800-746-6686 to speak
with a Simonton Tech for more information.
5. Screen Strike Installation
a) After identifying the position and track
direction of the latch, close the door into
the frame and mark the estimated position
in the screen pocket using the strike as
template. (Fig 10).
b) Pre-drill two 7/64" holes into the vinyl sill
pocket (Fig 11).
c) Install the strike over the holes using the
screws provided (Fig 12). NOTE: The
correct orientation of the screen handle
should require downward motion to
disengage the keeper.
Simonton,
®
Simonton Windows,
®
StormBreaker
®
Plus and the stylized “S” are trademarks of Simonton
Windows & Doors, Inc. or its affiliates. ©2017 Simonton Building Products, LLC. Printed in U.S.A.
Figure 8
Figure 9
Figure 11
Figure 10
Figure 12
