YOU HAVE ISOLATED A
CHANNEL HAS FAILED
I
TROUBLE TO AN ET. GO
TO THAT ET
f
CHECK ALL JUMPER PLACEMENTS
AND SWITCH SETTINGS ON THE
ASSOCIATED DAUGHTER CARD.
,CORRECT IF NEEDED.
NO
SET YOUR VOM TO THE GODCV
SCALE AND CONNECT IT ACROSS THE
ET POWER CONVERTER BOARD
TERMINALS SHOWN IN THE
ILLUSTRATION BELOW
INDICATE ABOUT INDICATE ABOUT
,tz+, ,o
I
‘OWER CONVERTER
‘TBl-16
TBl-13
IOARD, TBl SHOWN
(+24)
W)

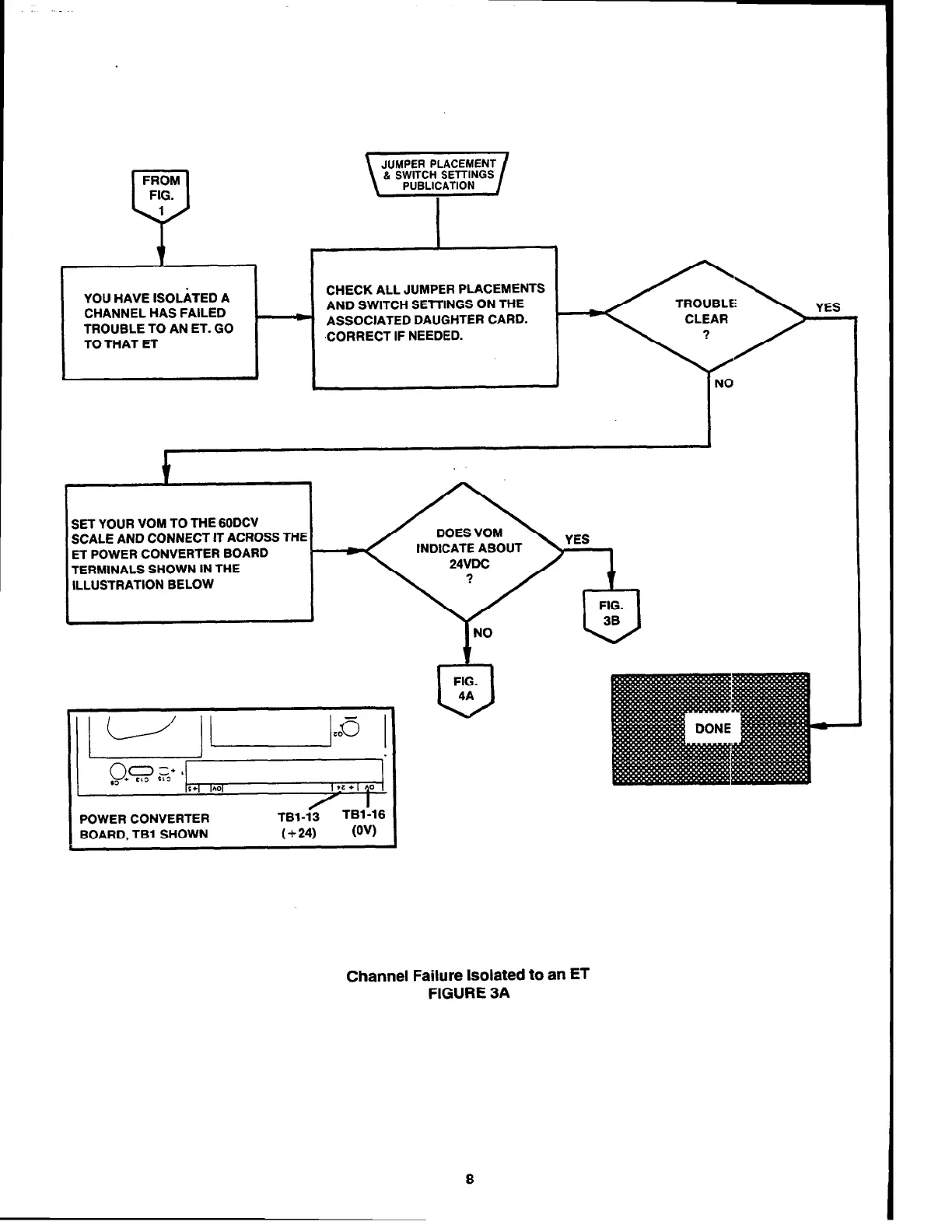

Channel Failure Isolated to an ET
FIGURE 3A
