Simplicity 1693920 - Page 12

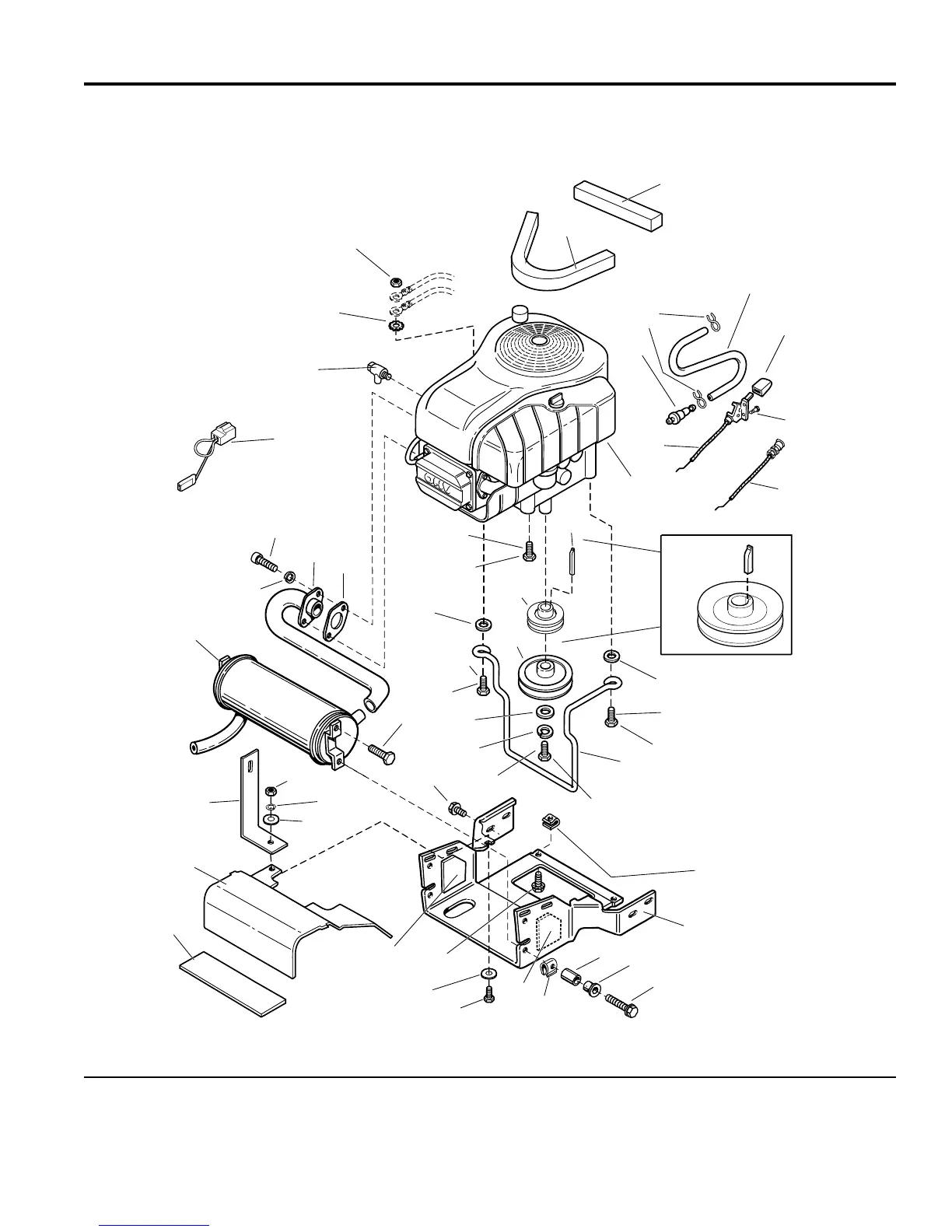

Engine Group - 15HP Briggs & Stratton
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
Note:
Orientation
of Key
Torque to
19-23 ft/lbs
(26-31) Nm
Torque to
19-23 ft/lbs
(26-31) Nm
Torque to
19-23 ft/lbs
(26-31) Nm
Torque to
45-50 ft/lbs
(61-68) Nm
12
17
13
2
3
16
20
18
19
21
11
10
9
8
6
7
16
13
16
22
23
26
25
24
22
30
33
38
1
41
36
39
40
43
42
4
5
15
14
45
32
31
27
28
29
34
35
36
37
44
986077
The above parts group applies to the following Mfg. Nos.:
2003
12
