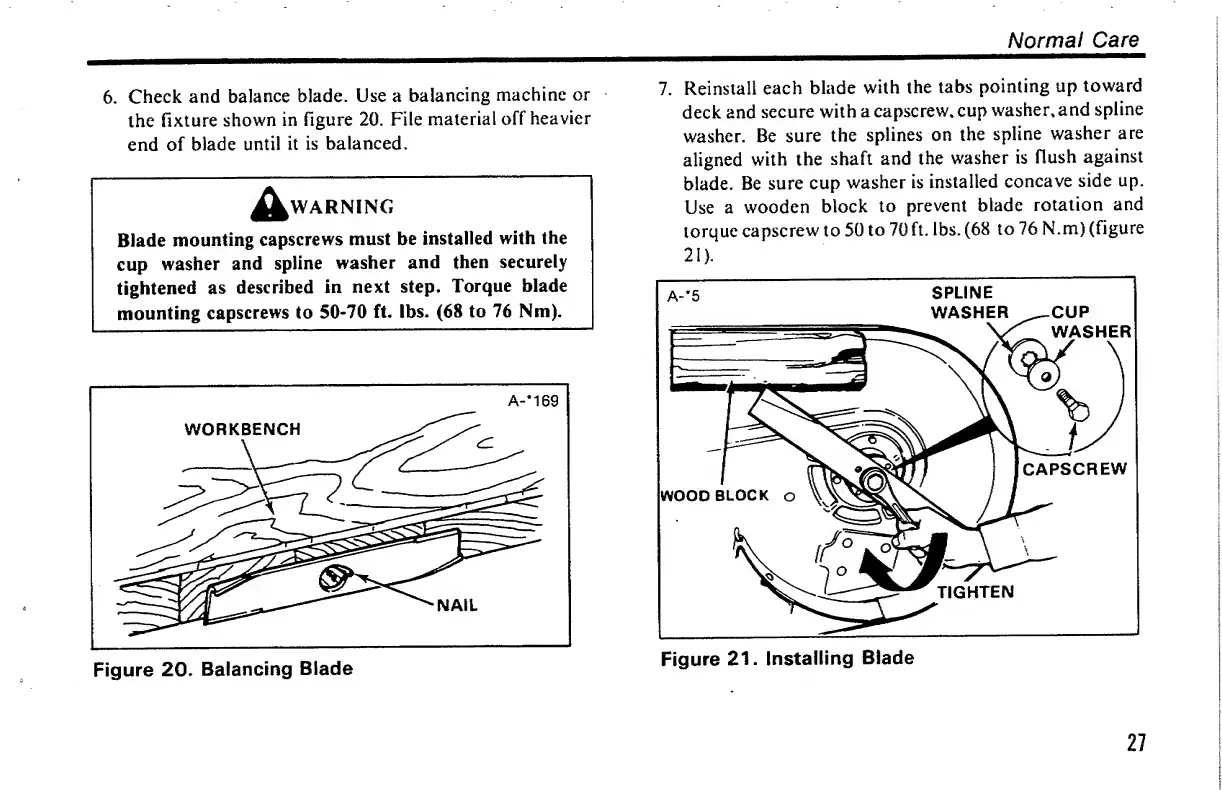

Normal
Care
6.
Check
and
balance
blade.
Use
a
balancing
machine
or
the
fixture
shown
in
figure
20.
File
material
off
heavier
end
of
blade
until
it
is
balanced.
^WARNING
Blade
mounting
capscrews
must
be
installed
with
the
cup
washer
and
spline
washer
and
then
securely
tightened
as
described
in
next
step.
Torque
blade
mounting
capscrews
to
50-70
ft.
lbs.
(68
to
76
Nm).
7.
Reinstall
each
blade
with
the
tabs
pointing
up
toward
deck
and
secure
with
a
capscrew,
cup
washer,
and
spline
washer.
Be
sure
the
splines
on
the
spline
washer
are
aligned
with
the
shaft
and
the
washer
is
flush
against
blade.
Be
sure
cup
washer
is
installed
concave
side
up.
Use
a
wooden
block
to
prevent
blade
rotation
and
torque
capscrew
to
50
to
70
ft.
lbs.
(68
to
76
N.m)
(figure
21
)
.
27
