Adjustments

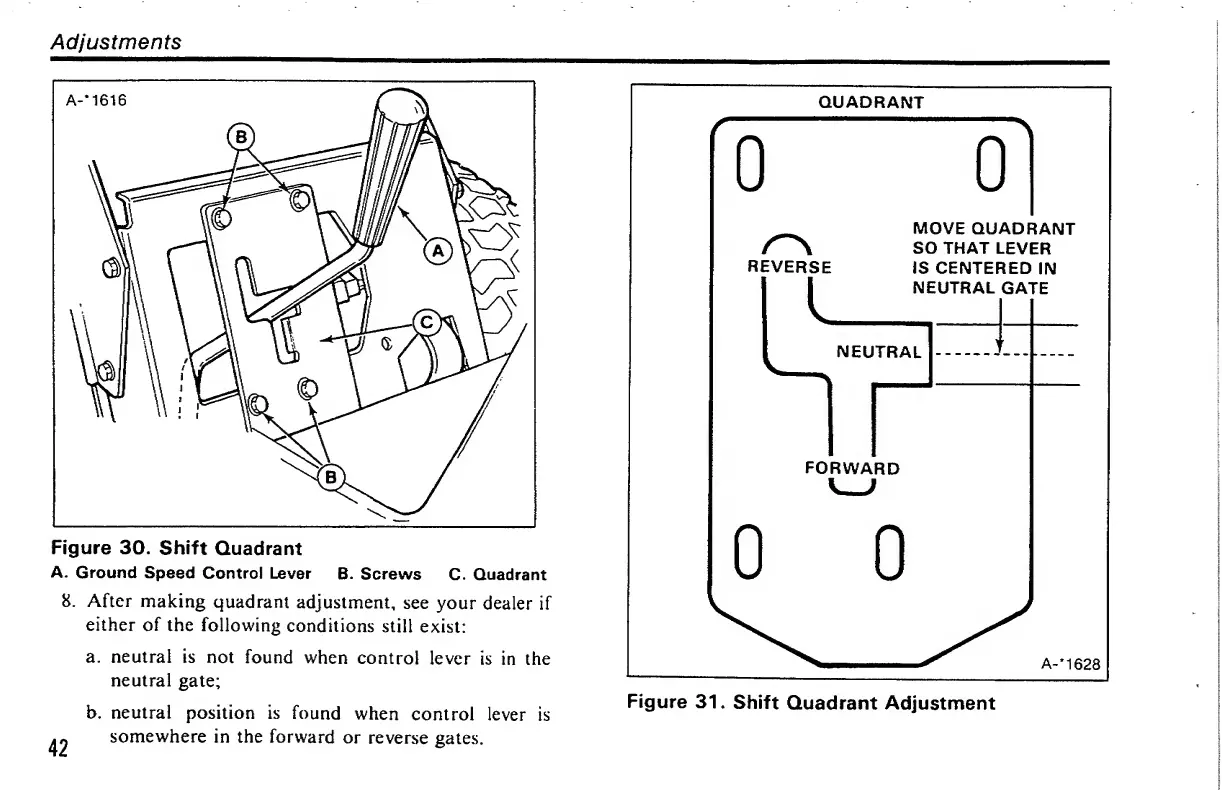

Figure
30.
Shift
Quadrant
A.
Ground
Speed
Control
Lever
B.
Screws
C.
Quadrant
8.
After
making
quadrant
adjustment,
see
your
dealer
if
either
of
the
following
conditions
still
exist:
a.
neutral
is
not
found
when
control
lever
is
in
the
neutral
gate;
b.
neutral
position
is
found
when
control
lever
is
somewhere
in
the
forward
or
reverse
gates.
Figure
31.
Shift
Quadrant
Adjustment
42
43
45
