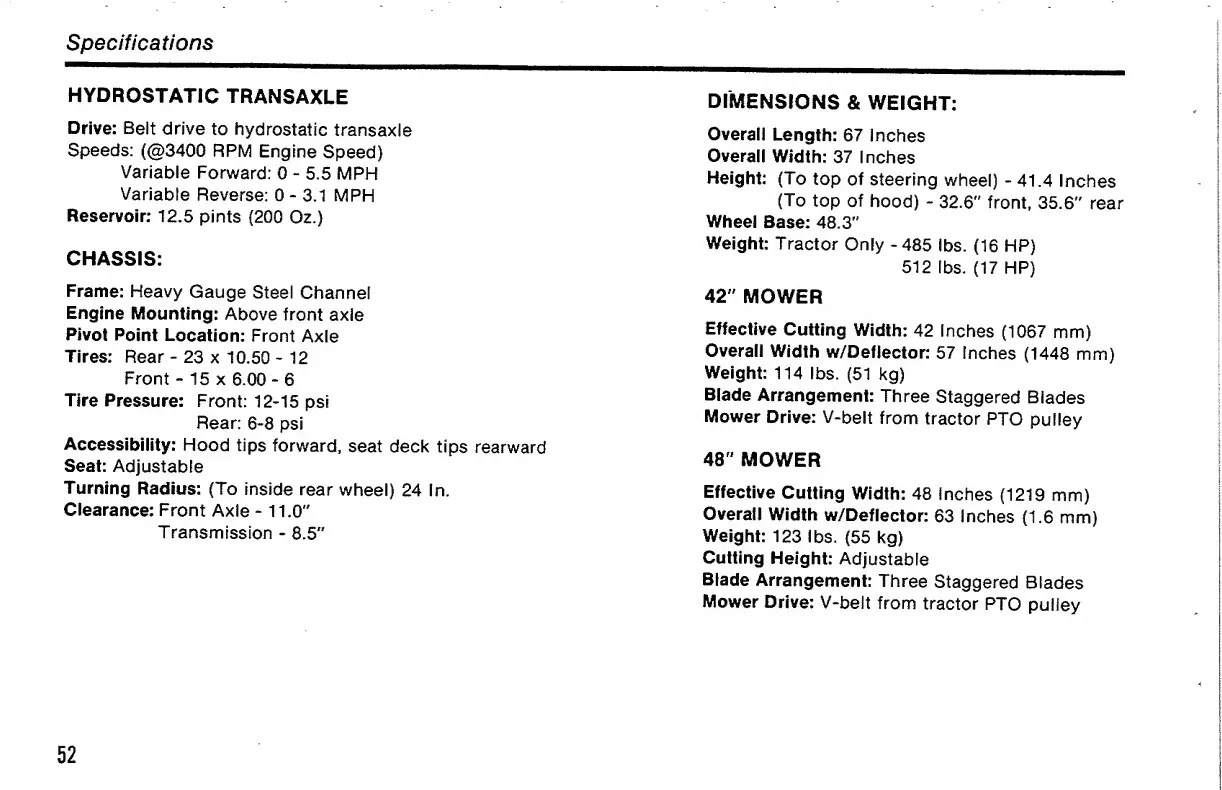

Specifications
HYDROSTATIC TRANSAXLE
Drive: Belt drive to hydrostatic transaxle
Speeds: (@3400 RPM Engine Speed)
Variable Forward: 0 - 5.5 MPH
Variable Reverse: 0-3.1 MPH
Reservoir: 12.5 pints (200 Oz.)
CHASSIS:
Frame: Heavy Gauge Steel Channel
Engine Mounting: Above front axle
Pivot Point Location: Front Axle
Tires: Rear - 23 x 10.50 - 12
Front - 15 x 6.00 - 6
Tire Pressure: Front: 12-15 psi
Rear: 6-8 psi
Accessibility: Hood tips forward, seat deck tips rearward
Seat: Adjustable
Turning Radius: (To inside rear wheel) 24 In.
Clearance: Front Axle -11.0"
Transmission - 8.5"
DIMENSIONS & WEIGHT:
Overall Length: 67 inches
Overall Width: 37 Inches
Height: (To top of steering wheel) - 41.4 Inches
(To top of hood) - 32.6" front, 35.6" rear
Wheel Base: 48.3"
Weight: Tractor Only -485 lbs. (16 HP)
512 lbs. (17 HP)
42" MOWER
Effective Cutting Width: 42 Inches (1067 mm)
Overall Width w/Deflector: 57 Inches (1448 mm)
Weight: 114 lbs. (51 kg)
Blade Arrangement: Three Staggered Blades
Mower Drive: V-belt from tractor PTO pulley
48" MOWER
Effective Cutting Width: 48 Inches (1219 mm)
Overall Width w/Deflector: 63 Inches (1.6 mm)
Weight: 123 lbs. (55 kg)
Cutting Height: Adjustable
Blade Arrangement: Three Staggered Blades
Mower Drive: V-belt from tractor PTO pulley
52
