Simplicity SMF2 User Manual

6903-002002 <01>
14
1
2
3
2-2

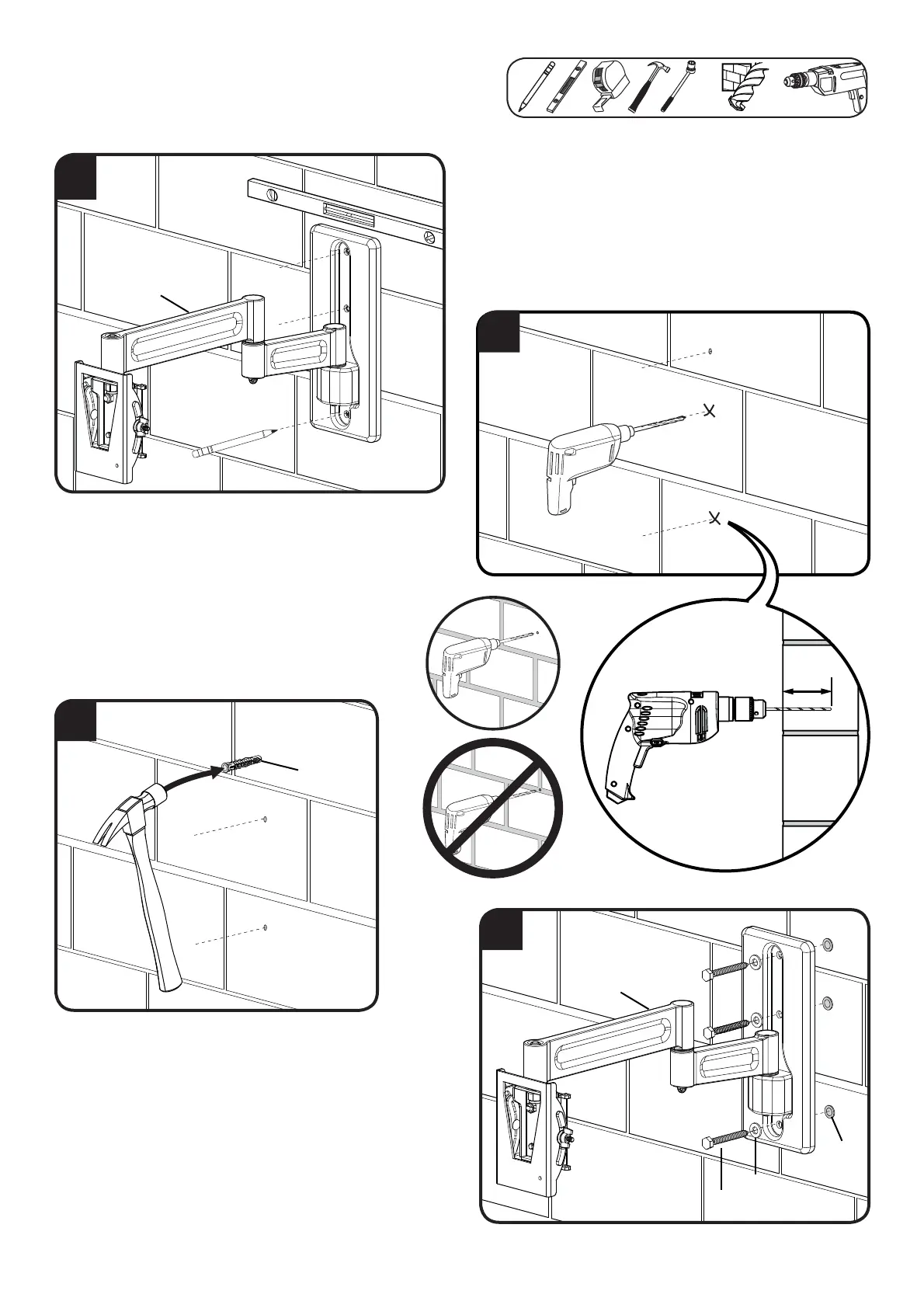

Solid Concrete and Concrete Block Mounting – See Cautions in Step 2.
1. Level wall plate and mark the hole locations.
2. Drill pilot holes as illustrated.
3. Insert lag bolt anchors [10].
4. Tighten the lag bolts [08] only until the washers [09] are pulled  rmly
against the wall plate [04].
13mm
(1/2 in.)
4
10 mm
(3/8 in.)
[08]
[09]
[10]
[04]
[10]
[04]
75mm
3 in.
