Simpson DirectVent Pro - Page 23

23

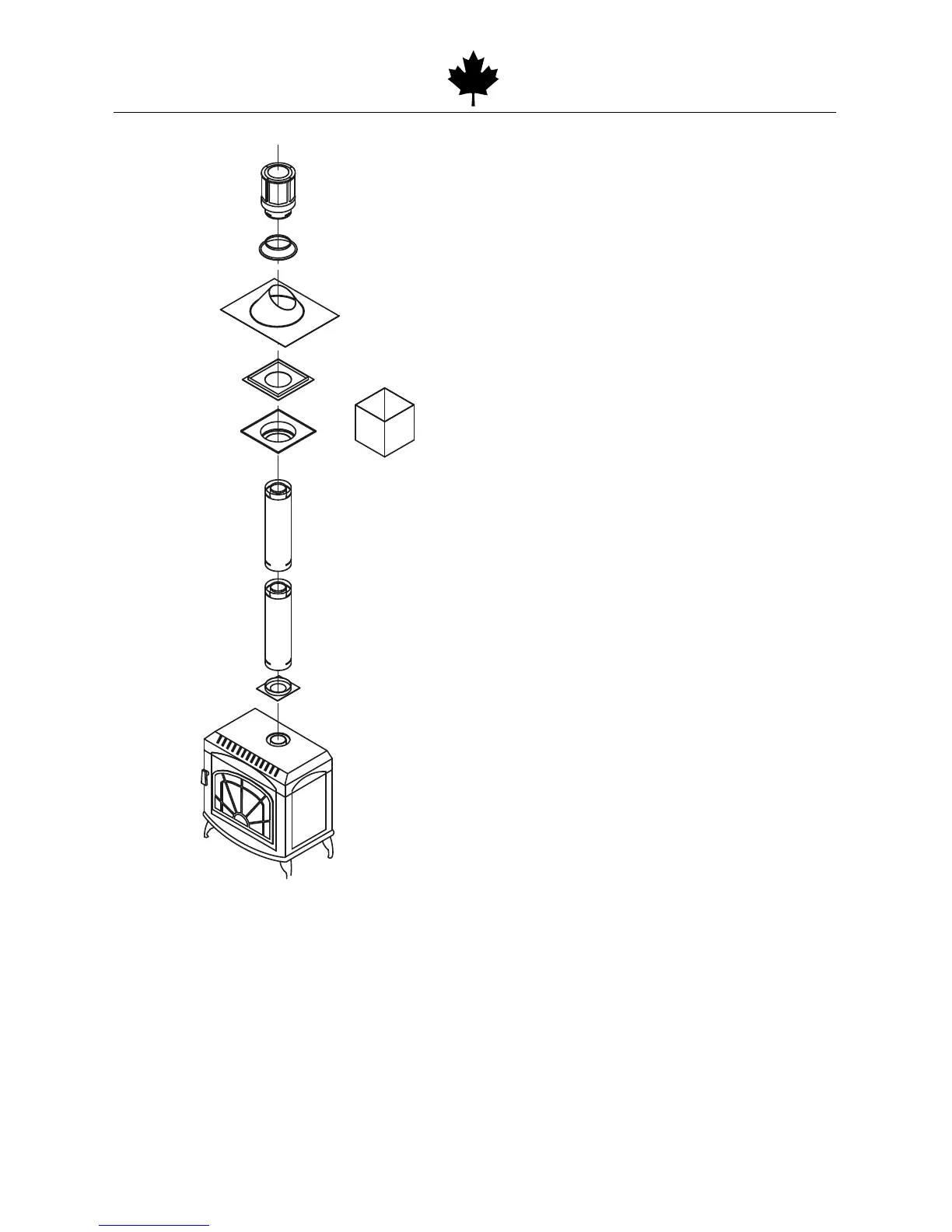

Figure 3
STORM
COLLAR
ROOF
FLASHING
CEILING
FIRESTOP
CATHEDRAL
CEILING
SUPPORT BOX
PIPE
SECTION
PIPE
SECTION
ROUND CEILING
SUPPORT/WALL
THIMBLE COVER
APPLIANCE
ADAPTOR
VERTICAL
HIGH WIND OR
TERMINATION CAP
LOW PROFILE
