Simu GM800 - Page 14

2
171 min
140
Usable travel : 2555 / 3155
Overall length : 3295 / 3895
224,4
65,5
125
63,6
Fixation : 2982 / 3582
Rail : 2900 / 3500
313,6
404,2
106
130,9
33,5
Overall length : 3153 / 3753
Rail : 2900 / 3500
139,5
164,4
404,2
150,1
224,4
112,2
254,1

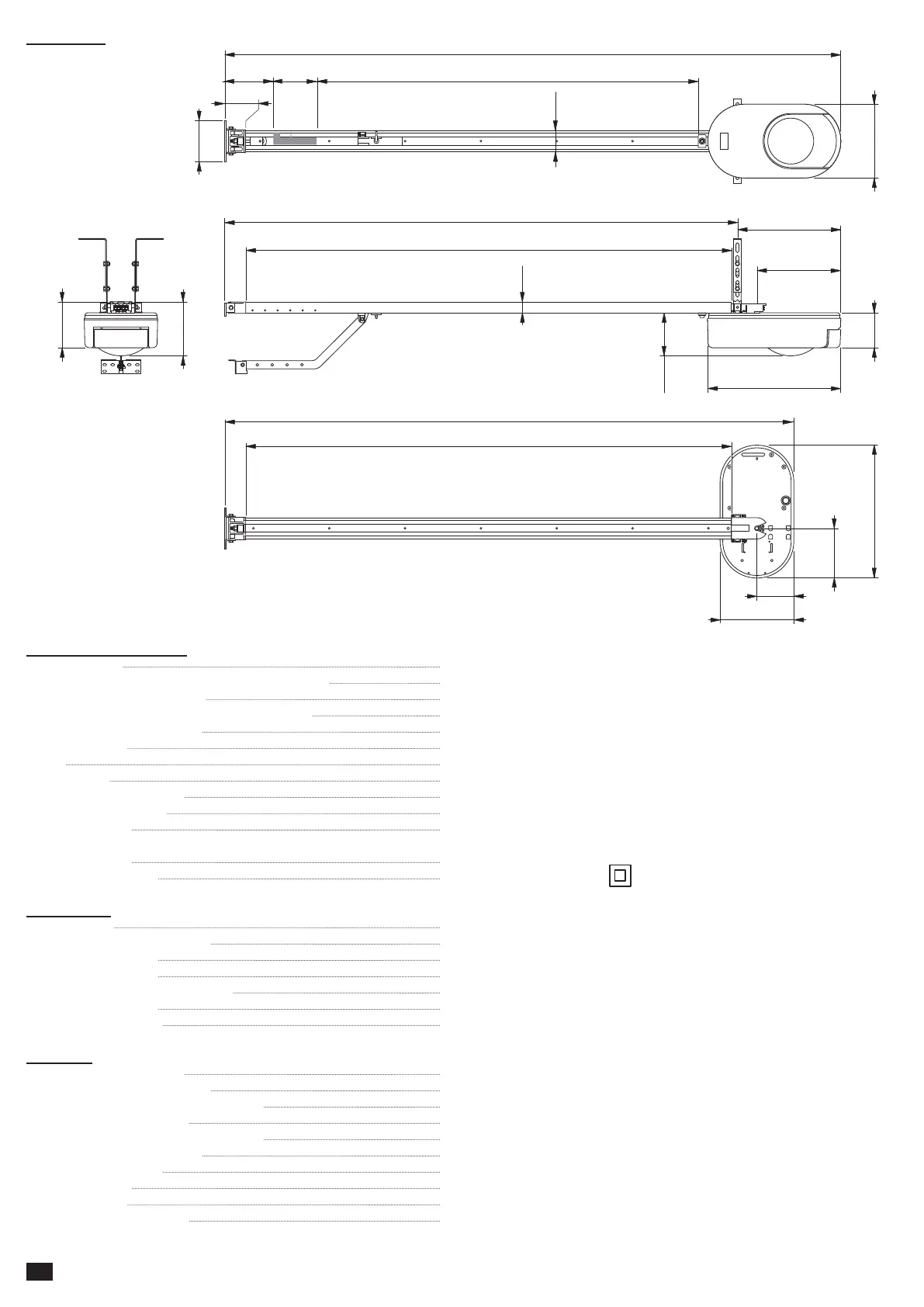

Dimensions
Technical specifi cations
- Power supply 230V / 50Hz
- Max. power consumption (standby / Operation) 4W / 120W
- Radio frequency (Simu Hz) 433,42MHz
- Number of channels that can be memorised 32
- Traction force (peak force) 800N
- Starting force* 650N
- Use 20 cycles /day max.
- Max. speed 0,14 m/s max.
- Programming interface 4 buttons / 4 indicator lights
- Operating conditions -20°C / +60°C - indoor dry - protection index IP20
- Fins de course Mechanical stopper at opening, electronic at closing, memorized end limit
position at closing.
- Built-in lighting 24V / 21W, E13 socket
- Electrical insulation Class 2 (double insulation)
Connections
- Safety input Dry contact NF / compatible with photoelectric TX/RX cells
- Pedestrian door safety input Dry contact NF
- Wired control input Dry contact NO
- Amber light output 24V / 15W with built-in fl ashing control
- Accessory power supply output 24V / 500 mA max.
- Remote aerial input Yes
- Backup battery input Yes
Operation
- Forced operation mode By pressing and holding the motor control button
- Independent lighting control Yes for built-in lighting
- Lighting time delay (after movement) Fixed, 60 seconds
- Amber light pre-warning 2 seconds, automatic if light connected
- Safety input operation during closing Fully reopens
- Built-in obstacle detection 4 levels adjustable sensitivity
- Progressive start-up Yes
- Opening speed 0,14 m/s max.
- Closing speed 0,12 m/s max.
- Closure approach speed Programmable: Does not slow down, short slowdown zone (30 cm),
long slowdown zone (50 cm).
*Maximum load for motor to start and drive door for at least 5 cm (according to RAL-GZ defi nition).
