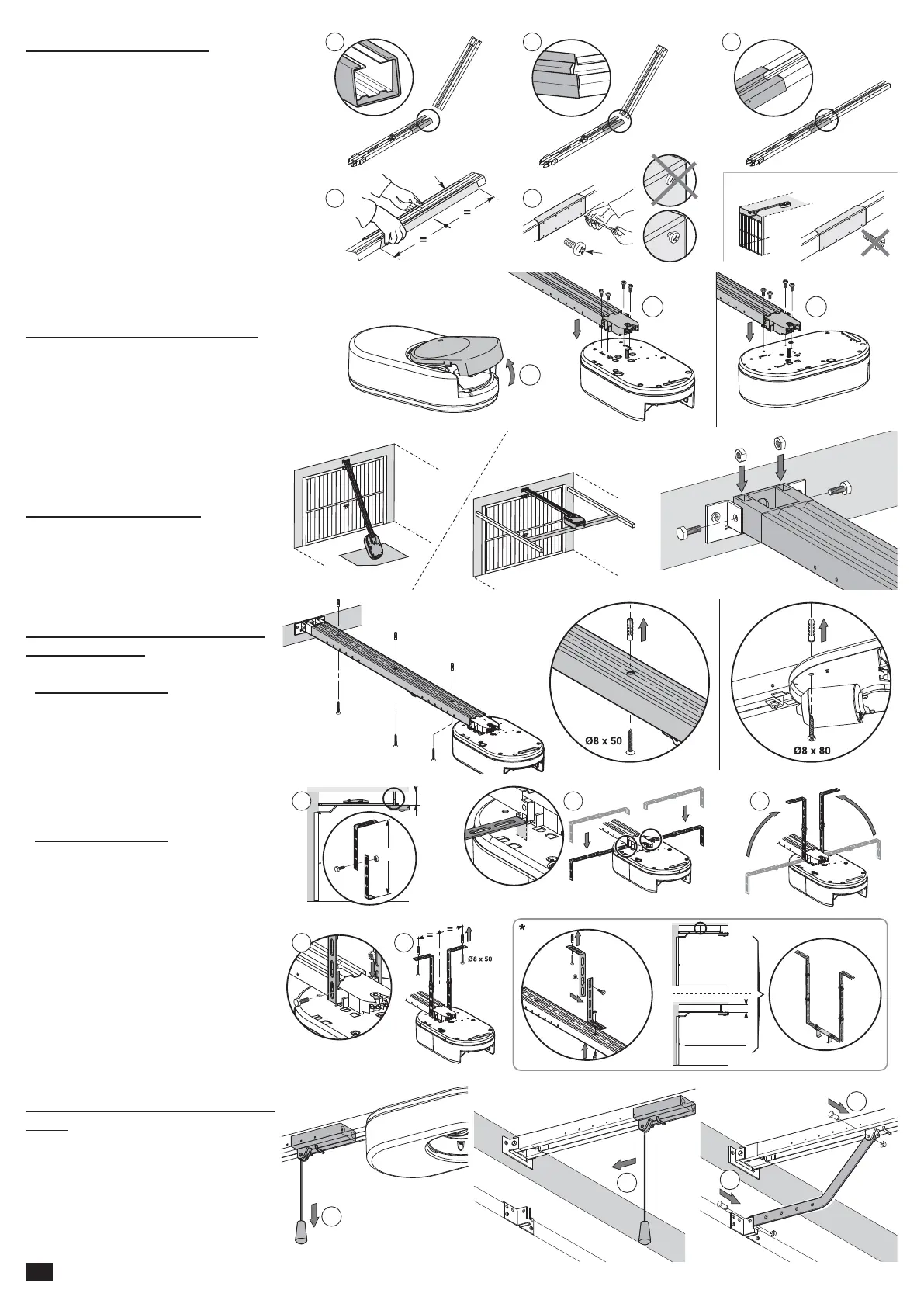

Assembling the two part rail
1-2-3- Unfold the two parts of the rail.
4- Assemble the two parts of the rail using the
sleeve.
5- Mount the complete assembly using the eight
mounting screws.
- The mounting screws must not penetrate the
rail (do not drill).
- When installing the system directly onto
the ceiling, do not use the sleeve mounting
screws.
- Hung from the ceiling: Intermediate
mounting points can be added to the
rail, especially in the case of a two part
rail or a rail that measures 3,500 mm.
* To add an adjustable intermediate
mounting along the rail, or a mounting
at a dimension H between 250 mm
and 550 mm, use the ceiling mounting
kit.
Fitting the rail onto the motor head
* Allows longer travel.
Fitting to the lintel bracket
Fitting the complete assembly onto
the garage ceiling
- Flush with the ceiling: mount the
system directly onto the ceiling using
the rail. It is possible to add mounting
points at the motor head level
Fitting the arm onto the door and the
trolley
1- Release the trolley using the manual
release cord.
2- Bring the trolley up to the door.
3- Attach the arm to the door bracket
and the trolley.
1 2
4 5
3
35 < D < 200
21b1
x 8 21b2
H < 255
H
250 < H < 550
1
4 5
2 3
1
2
*
2
1
2
3
3
