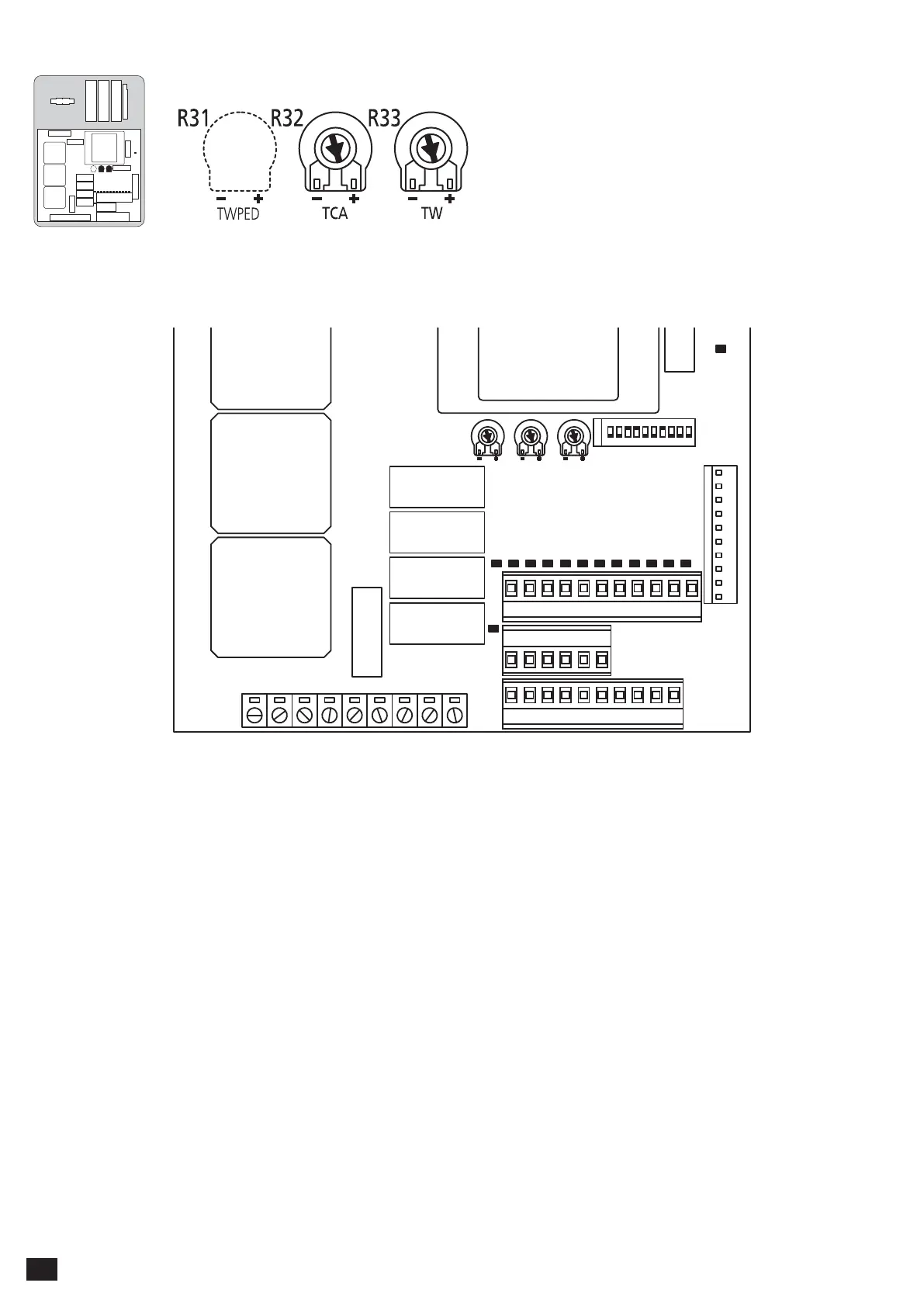

4.2 - Trimmer-set functions
4.3 - LEDs functions
TW.PED : no used
TW : Sets the operation time during both the opening and closing
phases (adjustable from 3 to 210 seconds).
TCA : Sets the dwell time, after which the gate closes automatically
(from 1 to 120 seconds).
The SIMUDRIVE 410 control unit is provided with leds which are useful in identifying any anomalies in the system.
■
DL1 : Stays on when supplied with mains power and with F1 fuse intact.
■
DL2 : Comes on when the motor is activated during closing.
■
DL3 : Comes on when the motor is activated during opening.
■
DL4 : Comes on following the Start command.
■
DL5 : Goes off when the block command is activated. (stop by push button or motor thermal probe).
■
DL6 : Goes off when photocells are not aligned, i.e. when obstacles are present. When Dip-switch 9 is OFF, the photocells and related
leds are only activated during manoeuvring.
■
DL7 : Goes off when the shutter is in the fully open position, if provided with end-of-stroke device.
■
DL8 : Goes off when the shutter is in the fully closed position, if provided with end-of-stroke device.
■
DL9 : Not used.
■
DL10 : Comes on with manual opening command.
■
DL11 : Comes on with manual closing command.
■
DL12 : Goes off when the safety edge is activated. When Dip-switch 10 is OFF, the edge and its related LED are only activated during
manoeuvring.
■
DL13 : Comes on when the safety ring is closed. (self test).
■
DL14 : Not used.
