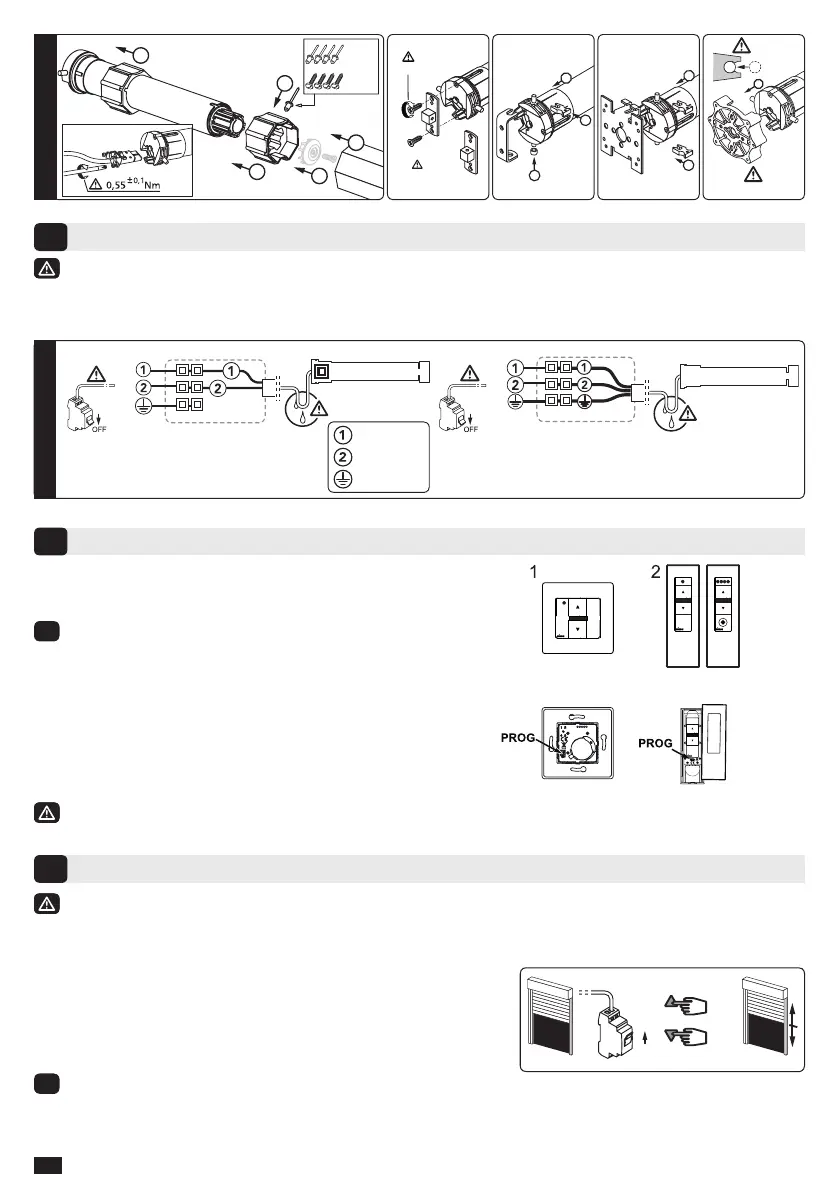

Simu T3.5EBHz - Page 8

2
3
1
5
4
Ø4,8 x 10
Ø5 x 10
STEEL
9910013
25N.m max.
9910014
5.3 Nm max
1
3
2
2
1
1
35N.m max.
You must have the possibility to switch o󰀨 individually each motor.
- Attach cables to prevent any contact with moving parts.
- If the motor is used outdoors and if the power supply cable is of the H05-VVF type, then run the cable in a
UV- resistant conduit, e.g. trunking.
Wiring
2
T5EBHz
1 : 1 channels Wall BHz transmitter
2 : 1/5 channels Mobile BHz transmitter
i
Compatible with io-homecontrol
®
transmitters.
Location of the PROG button on BHz transmitters:
Do not position the transmitter near metal in order to avoid range losses.
Compatible transmitters (9 transmitters (1 channel) max. for one motor.)
3
If the installation includes several motors, only one motor is to be powered during this programming
procedure. It will avoid interferences with the other motor during the procedure.
4.1- Learning mode:
- Switch ON the motor.
- Simultaneously press the “UP” and “DOWN” buttons of a BHz
transmitter. The motor will run for 0,5 second in one direction and
then in the other.
i
The transmitter now controls the motor in unstable mode. Go to stage 4.2.
End limit adjustment
4
>>
ON
2/6
EN
Blue
Brown
Green / Yellow
230V ~ 50 Hz
PE
L
N
T3.5BHz
PE
L
N
T5EBHz
