SINAMICS G120
Standard inverters 0.37 kW to 250 kW (0.5 hp to 400 hp)
PM240 Power Modules –
0.37 kW to 250 kW (0.5 hp to 400 hp)
4/47
Siemens D 11.1 · 2009
4
■

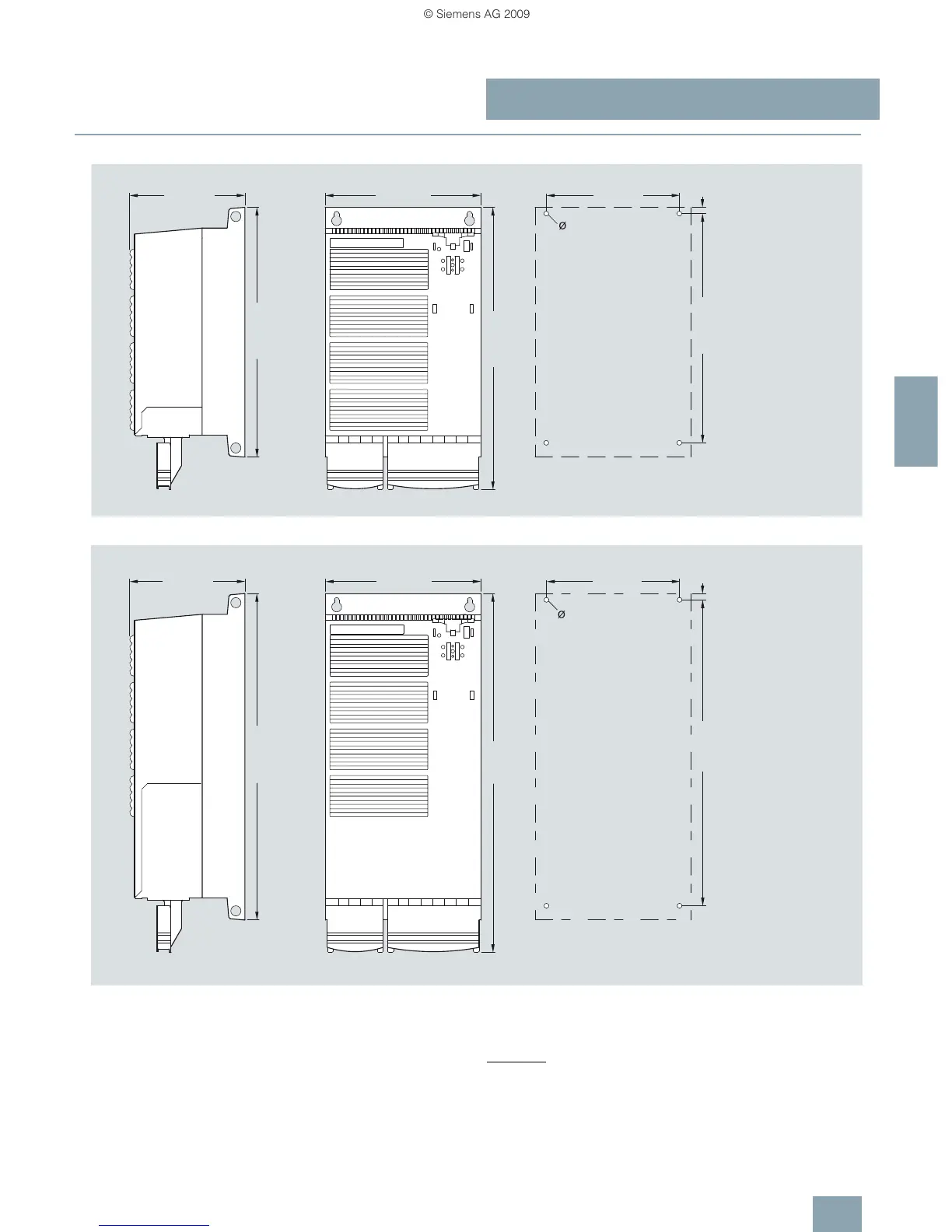

Dimensional drawings
PM240 Power Module frame size FSE without line filter
PM240 Power Module frame size FSE with integrated class A line filter
Mounted with 4 M8 studs, 4 M8 nuts, 4 M8 washers.
Ventilation clearance required at top and bottom: 300 mm
(11.81 inches).
Ventilation clearance required at front: 28 mm (1.1 inches).
Ventilation clearance required at sides: 0 mm (0 inches).
When the Control Unit is plugged on, the mounting depth
increases by 56 mm (2.2 inches).
Exception
: for CU240E, mounting depth +22 mm
(+0.87 inches).
All dimensions in mm (values in brackets are in inches).
Drill pattern
G_D011_EN_00096
235 (9.25)
204 (8.03) 275 (10.83)
441 (17.36)
499 (19.65)
8.5 (0.33)
405 (15.94)
11 (0.43)
Drill pattern
G_D011_EN_00097
235 (9.25)
204 (8.03) 275 (10.83)
577 (22.72)
635 (25)
8.5 (0.33)
541 (21.3)
11 (0.43)
