SINAMICS G120
Standard inverters 0.37 kW to 250 kW (0.5 hp to 400 hp)
PM240 Power Modules –
0.37 kW to 250 kW (0.5 hp to 400 hp)
4/49
Siemens D 11.1 · 2009
4

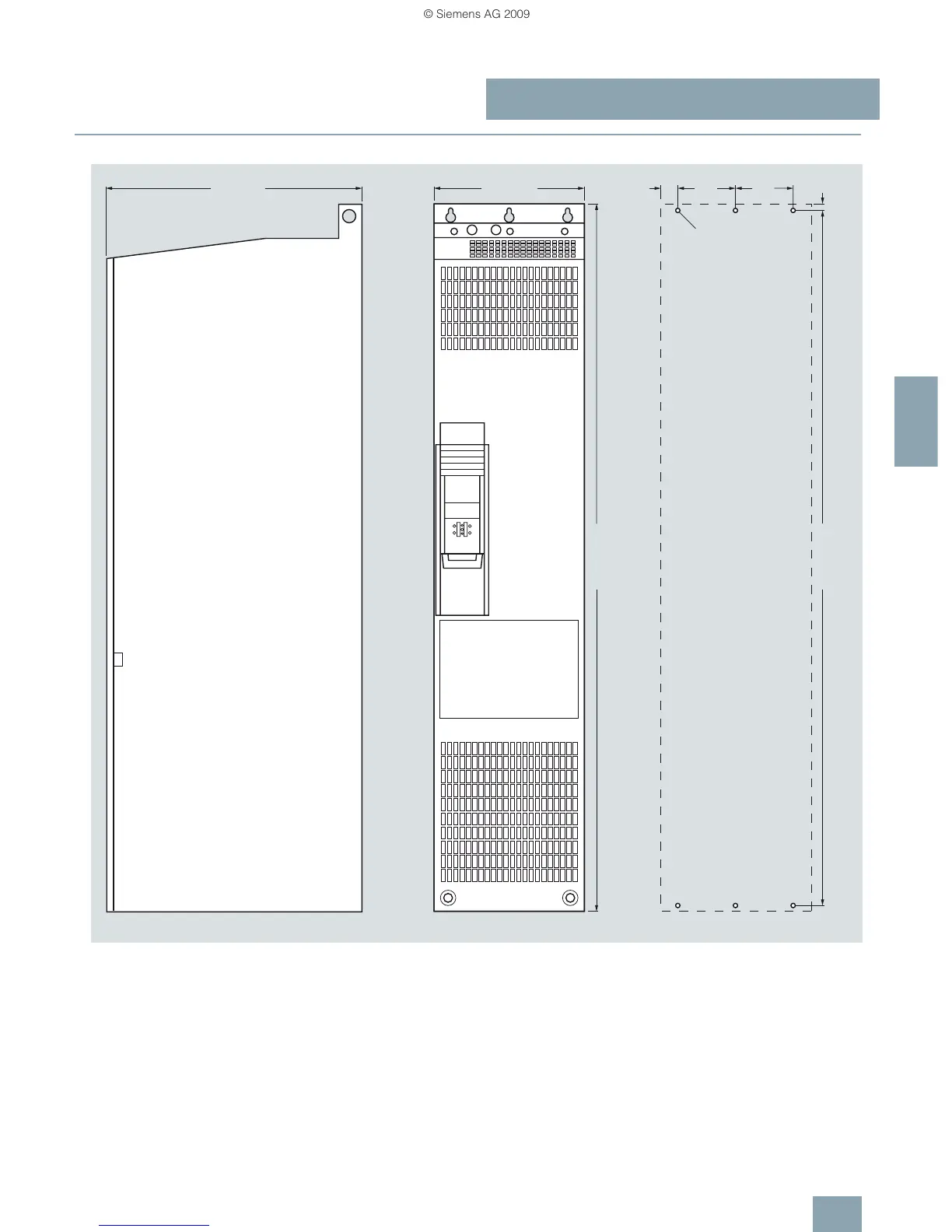

■ Dimensional drawings
PM240 Power Module frame size FSGX without line filter
Mounted with 6 M8 studs, 6 M8 nuts, 6 M8 washers.
Ventilation clearance required at the top: 250 mm (9.84 inches).
Ventilation clearance required at the bottom: 150 mm
(5.91 inches).
Ventilation clearance required at front: 50 mm (1.97 inches).
Ventilation clearance required at sides: 0 mm (0 inches).
When the Control Unit is plugged on, the mounting depth does
not increase.
All dimensions in mm (values in brackets are in inches).
G_D011_EN_00205
Drill pattern
(21.6) (12.9)
(0.35)
(59.29)
(4.92) (4.92)
(0.571)
(1.46)
14.5
(60.35)
547 326
ø9
1506
37 125 125
1533
