SINAMICS G120
Standard inverters 0.37 kW to 250 kW (0.5 hp to 400 hp)
PM250 Power Modules –
7.5 kW to 75 kW (10 hp to 100 hp)
4/63
Siemens D 11.1 · 2009
4
■

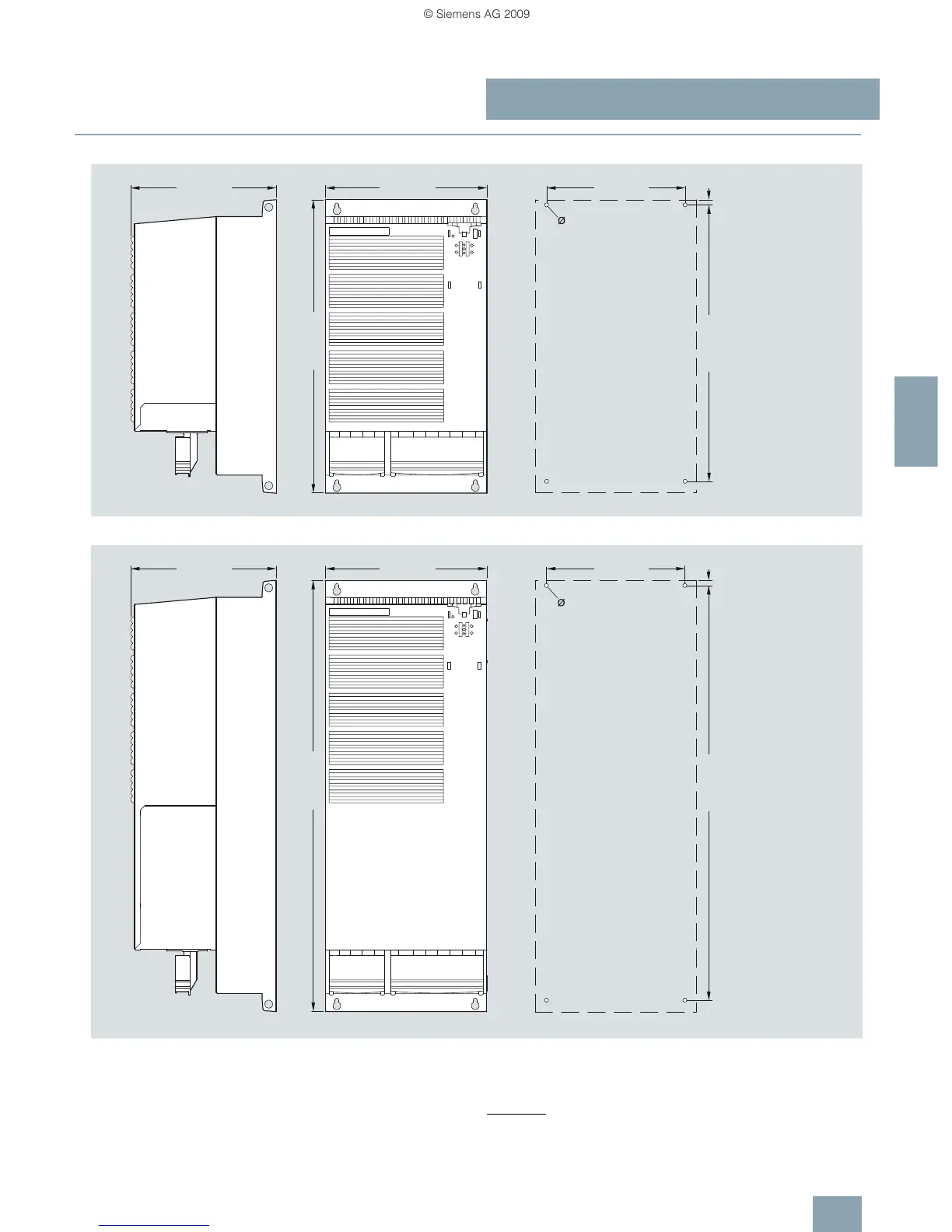

Dimensional drawings
PM250 Power Module frame size FSF without line filter
PM250 Power Module frame size FSF with integrated class A line filter
Mounted with 4 M8 studs, 4 M8 nuts, 4 M8 washers.
Ventilation clearance required at top and bottom: 350 mm
(13.78 inches).
Ventilation clearance required at sides: 0 mm (0 inches).
When the Control Unit is plugged on, the mounting depth
increases by 56 mm (2.2 inches).
Exception
: for CU240E, mounting depth +22 mm
(+0.87 inches).
All dimensions in mm (values in brackets are in inches).
Drill pattern
G_D011_EN_00098
316 (12.44) 350 (13.78) 300 (11.81)
8.5 (0.33)
634 (24.96)
598 (23.54)
11 (0.43)
Drill pattern
G_D011_EN_00099
316 (12.44) 350 (13.78) 300 (11.81)
8.5 (0.33)
934 (36.77)
899 (35.39)
11 (0.43)
