Operating Procedures / Photos

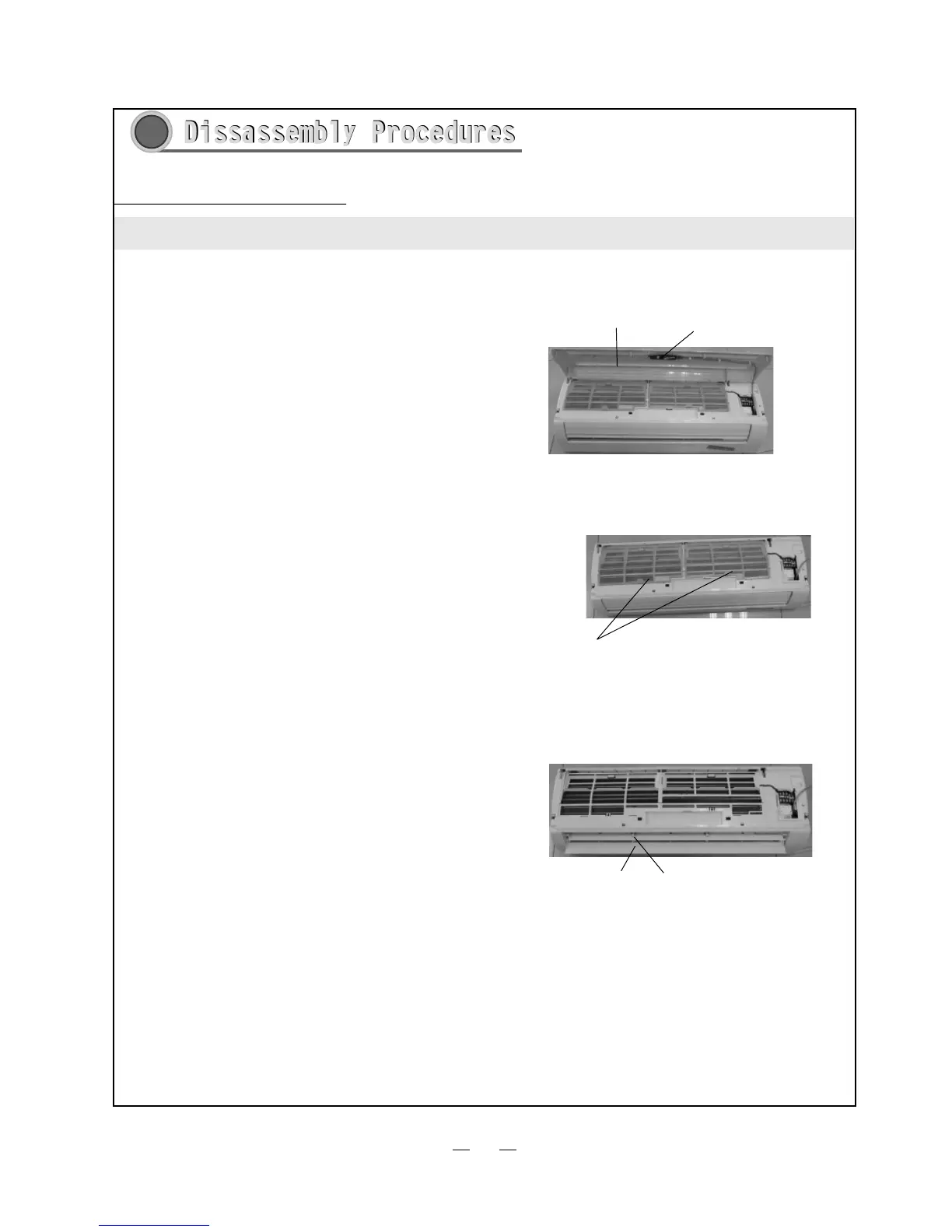

Disassembly Procedures of Indoor Unit
Front Panel
display window
Pull open the front panel, take out the display window,
then pull out the front panel along the groove (at the
front case) fixing the front panel.
1.Disassemble Front Panel
Push the filter inward, and then pull it upward to
remove it. Unscrew the screw fixing the top cover
of electric box to remove the top cover.
2.Disassemble Filter
Filter
Manually bend the guide louver to loose the
clasp at the guide louver. Remove the guide
louver.
3.Disassemble Guide Louver
Guide Louver Clasp
３５
To Next Page
