Sinclair ASH-18AK Series - Page 7

Tube exit
Air inlet
Rear View
Right
Left
Ceiling
Wall-Mounting Plate
W
D
H

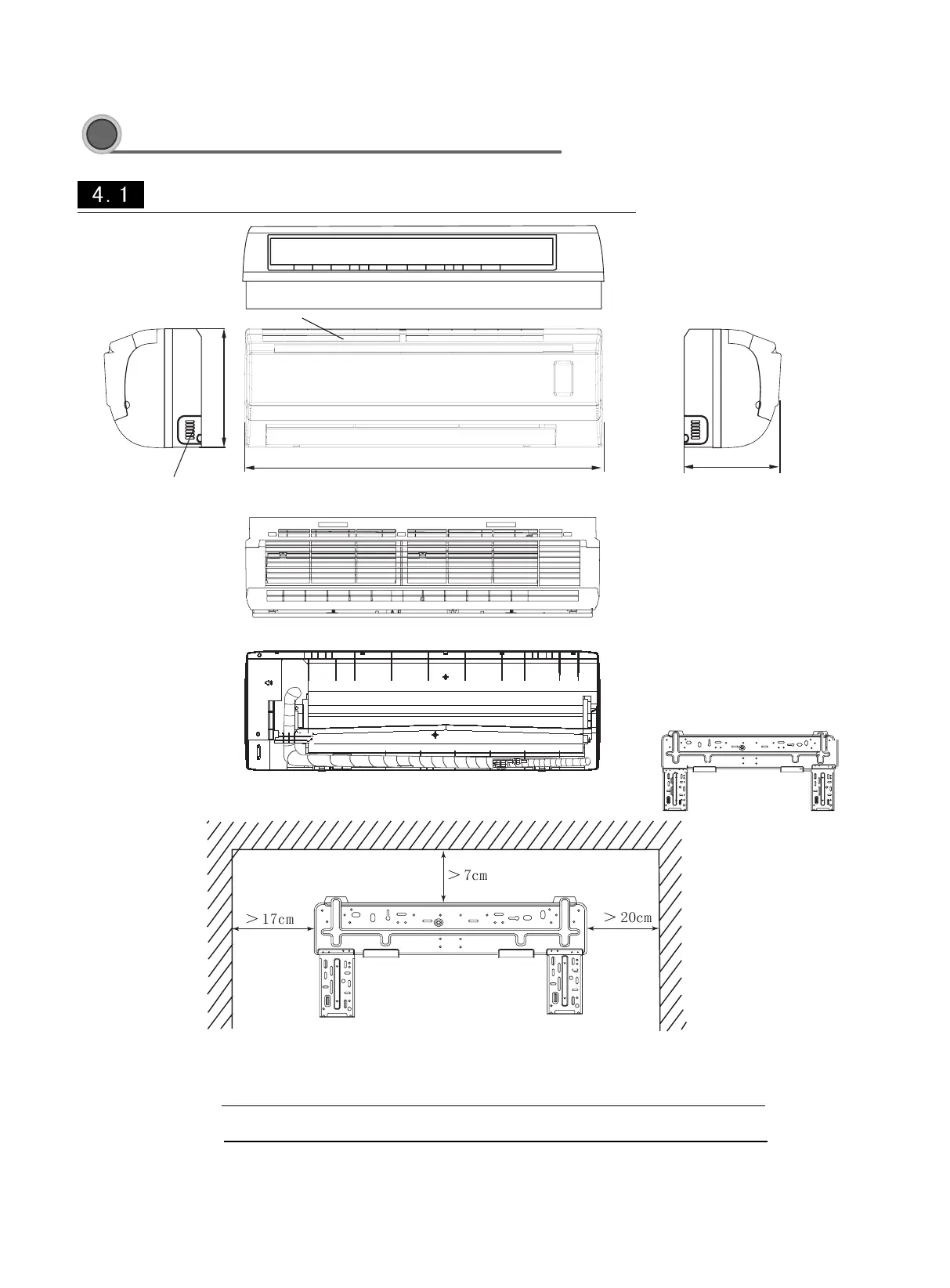

Outline and installation dimensions of indoor unit
4
Outline and installation dimension
Outline and installation dimension
Wall-Mounting Plate:
18/24
Mod el W(
㎜
)H(
㎜
)D(
㎜
)
ASH-1 8AK
ASH-2 4AK
1020 228 310
