Dissassembly Procedures
Front Pane

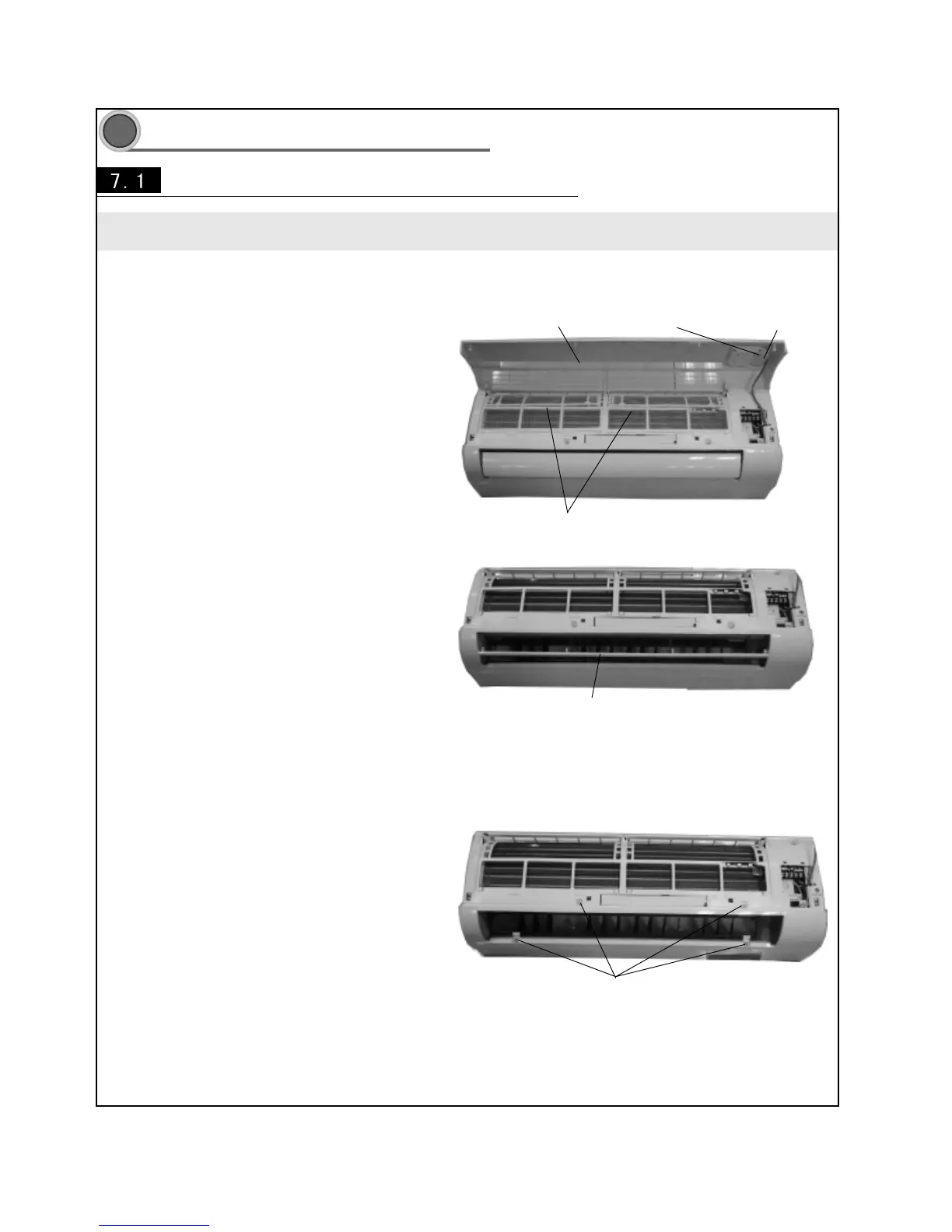

(09) Disassembly procedures for indoor unit
1. Disassemble the front panel, filter
Filter
Bend the guide louver so that the movable
lock
of guide louver is released to remove the
guide louver.
2. Disassemble the guide louver
Screw
Operating Procedures / Photos
Dissassembly Procedures
77
77
7
Screw
Guide louver
Open the 2 screw covers at the front case and
screw off 4 screws. Pull out the movable latch at
the front case with hand, disassemble the front
case.
3. Disassemble the front case
Protect board
Push the rotating shaft of front panel outsidely to put out
it from the groove, screw off one screw on the display
guard board, then take down the displayer connection
wire, can take down the front panel.
To Next Page
