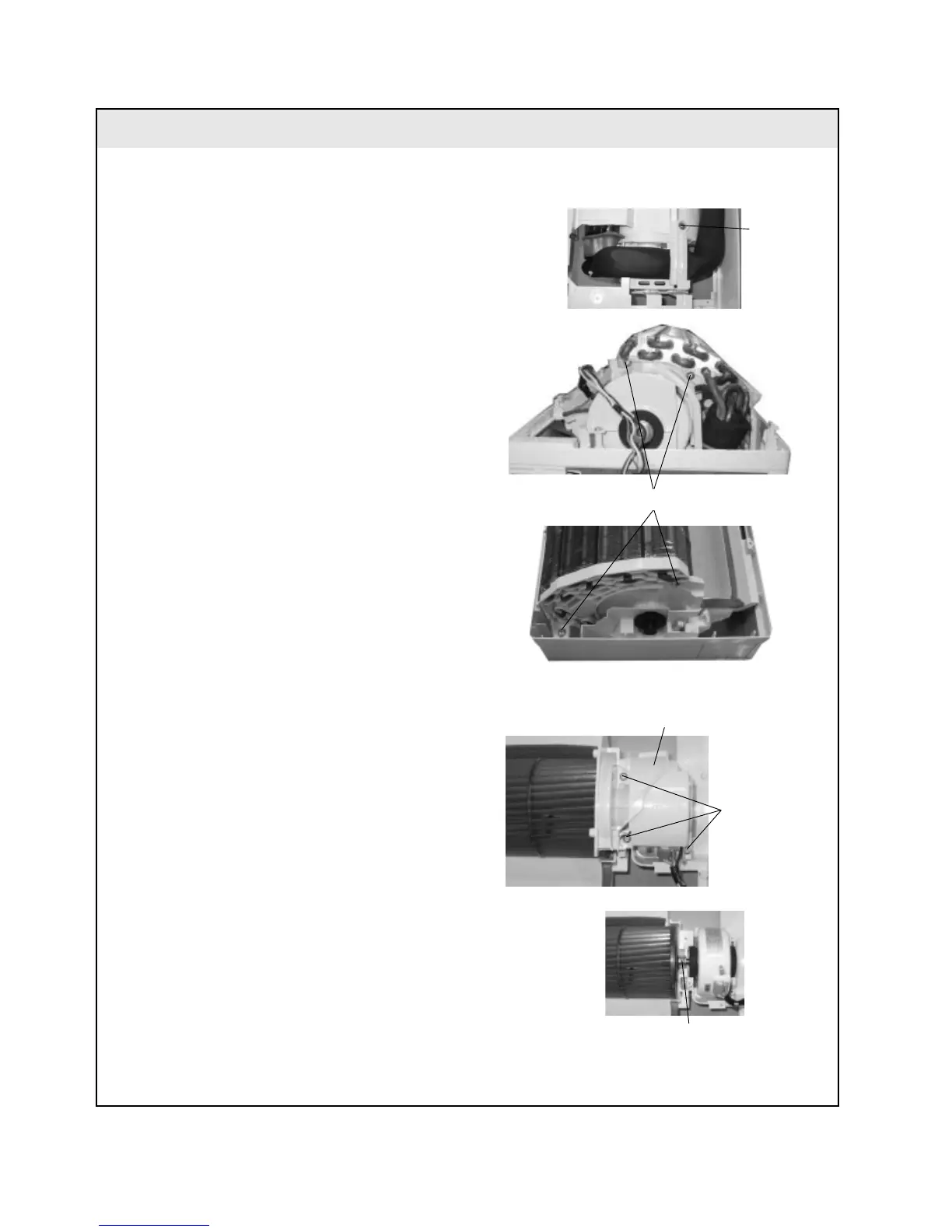

Operating Procedures / Photos
Screw off 4 screws fixing the motor cover and then
take the motor cover out.
Screw off the holding screw at the left shaft sleeve
of the cross flow fan, pull out the motor, and re-
move the cross flow fan.
7. Disassembling motor and cross flow fan
6. Disassembling the evaporator
Screws
CAUTION:
When repair, Carefully take out the evaporator and
pay attention to protect the connecting pipe.
Screws
Motor Press Plate
Screws
Screw
Screw off one screw which fix the connection pipe clamp.
Take off the connection pipe clamp.
To Next Page
