Push the rotating shaft of front panel outwards to
unloose the clasp, and then pull out the front panel.
Front Panel

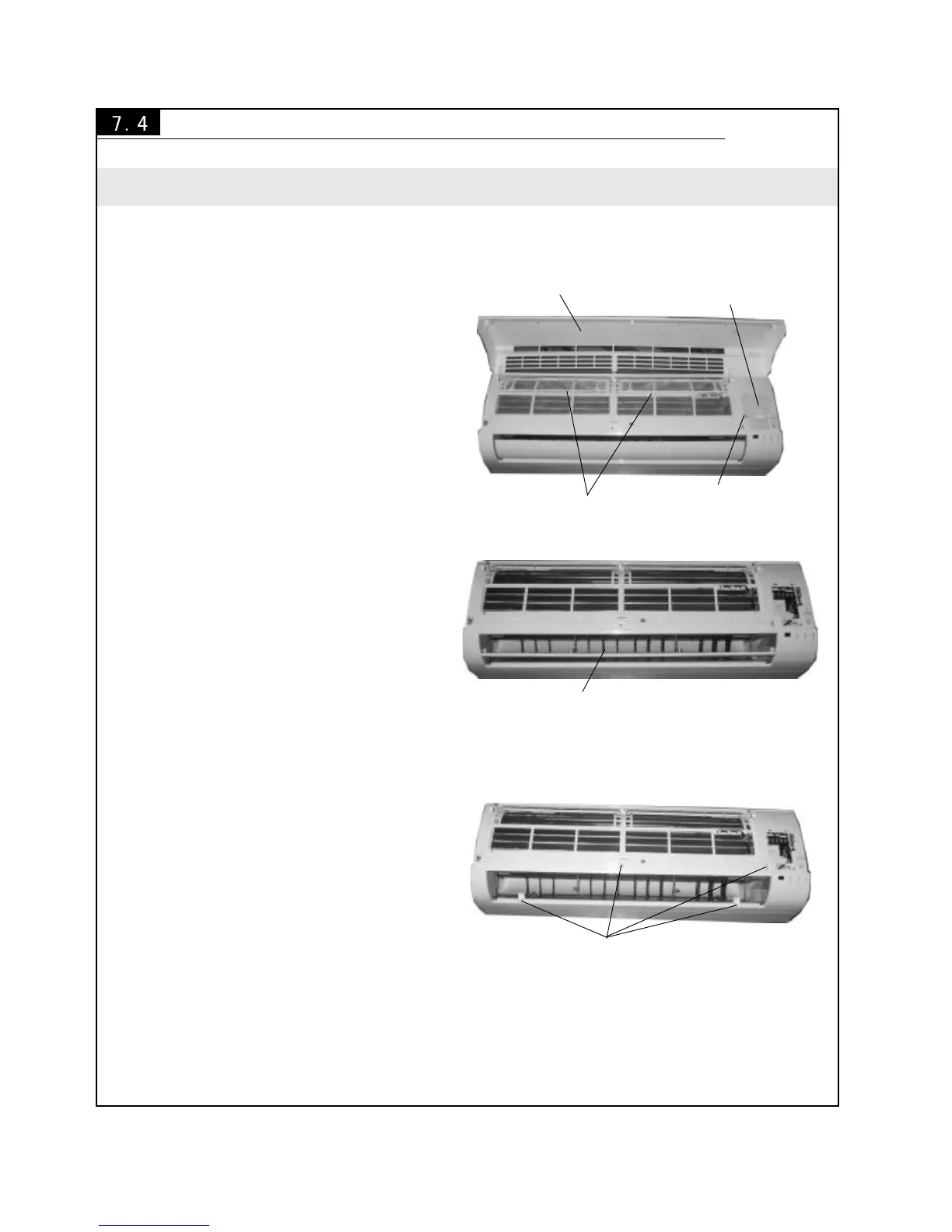

(Conventional 09) Disassembly procedures for indoor unit
1. Disassemble the front panel, filter
Filter
Bend the guide louver so that the movable
lock of guide louver is released to remove the
guide louver.
2. Disassemble the guide louver
Screws
Operating Procedures / Photos
Screw
Guide louver
Open the 2 screw covers at the front case and
screw off 4 screws. Pull out the movable latch at
the front case with hand and then pull it back-
wards to disassemble the front case.
3. Disassemble the front case
Electric Box Cover
Screw off the screws of the electric box cover,
and take down the electric box cover.
To Next Page
