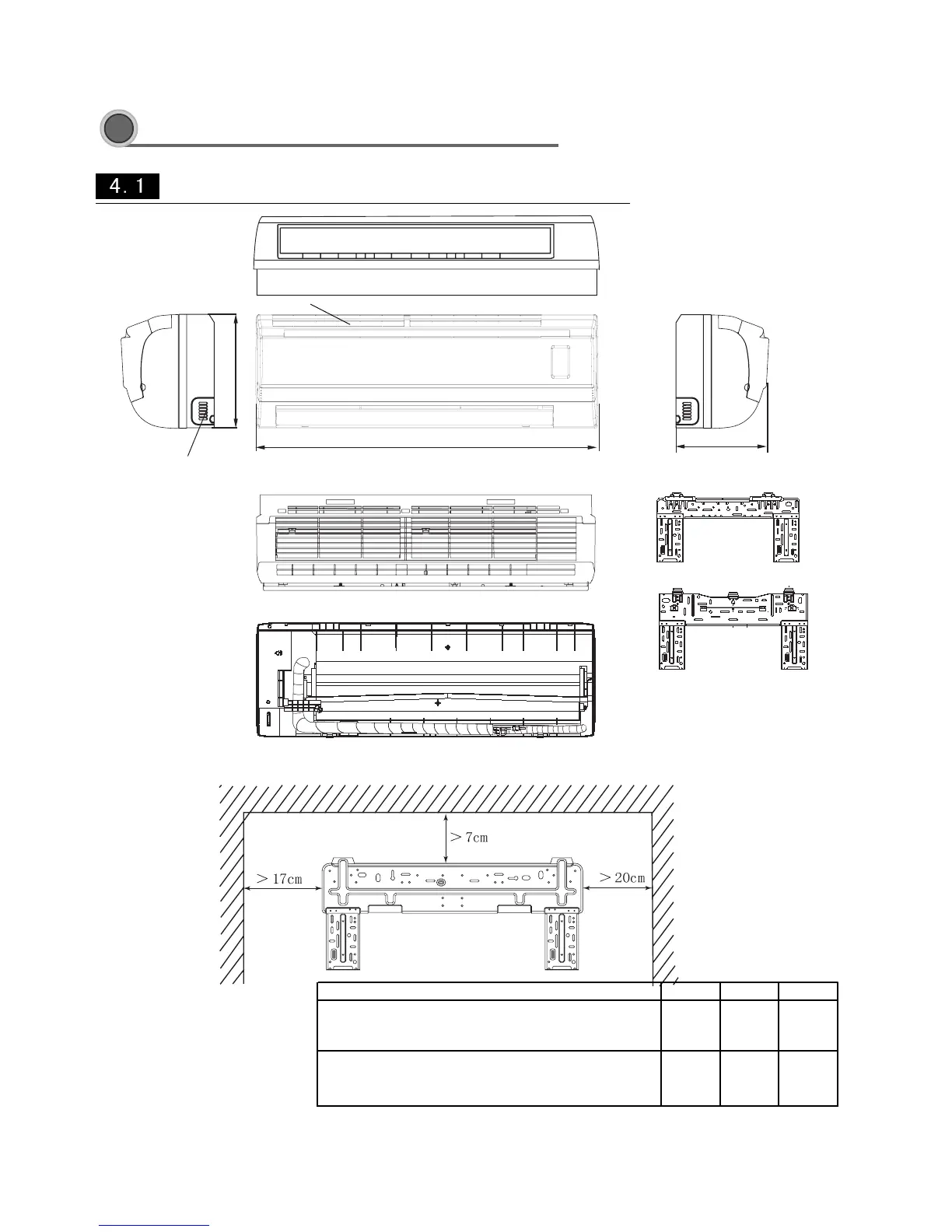

Sinclair KING ASH-09AK - 4 Outline and installation dimension; 4.1 Outline and installation dimensions of indoor unit

Tube exit
Air inlet
Rear View
Right
Left
Ceiling
Wall-Mounting Plate
W
D
H
Outline and installation dimensions of indoor unit
4
Outline and installation dimension
Outline and installation dimension
Wall-Mounting Plate:
ASH-09AK
ASH-13AK
Mod el W(
㎜
)H(
㎜
)D(
㎜
)
ASH-09AK 740 250 180
ASH-13AK
805
280 215
