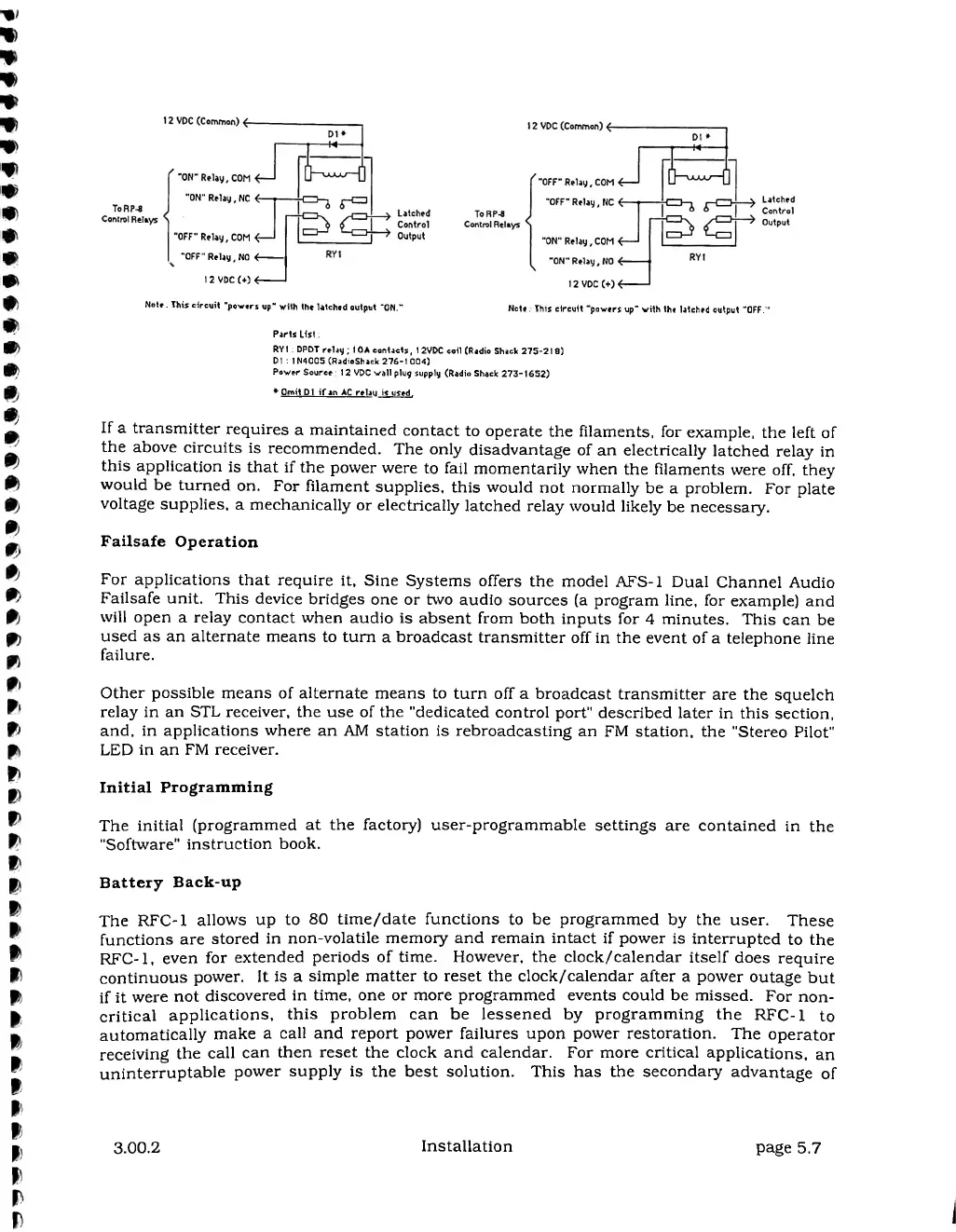

"OFF"
Relay
t
NO
<
---------
12
VDC
(+)
<---------
Note
.
This
circuit
"powers
up"
with
the
latched
output
"ON."
Note;
This
circuit
"powers
up
with
the
latched
output
OFF.
1
Parts
List
;
RY1
;
DPDT
relay;
1OA
contacts,
12VDC
coil
(Radio
Shack
275-218)
DI
:
1N4005
(RadioShack
276-1004)
Power
Source:
12
VDC
wall
pluy
supply
(Radio
Shack
273-1652)
Omit
DI
if
an
AC
rela
y
is
used.
If
a
transmitter
requires
a
maintained
contact
to
operate
the
filaments,
for
example,
the
left
of
the
above
circuits
is
recommended.
The
only
disadvantage
of
an
electrically
latched
relay
in
this
application
is
that
if
the
power
were
to
fail
momentarily
when
the
filaments
were
off,
they
would
be
turned
on.
For
filament
supplies,
this
would
not
normally
be
a
problem.
For
plate
voltage
supplies,
a
mechanically
or
electrically
latched
relay
would
likely
be
necessary.
Failsafe
Operation
For
applications
that
require
it,
Sine
Systems
offers
the
model
AFS-1
Dual
Channel
Audio
Failsafe
unit.
This
device
bridges
one
or
two
audio
sources
(a
program
line,
for
example)
and
will
open
a
relay
contact
when
audio
is
absent
from
both
inputs
for
4
minutes.
This
can
be
used
as
an
alternate
means
to
turn
a
broadcast
transmitter
off
in
the
event
of
a
telephone
line
failure.
Other
possible
means
of
alternate
means
to
turn
off
a
broadcast
transmitter
are
the
squelch
relay
in
an
STL
receiver,
the
use
of
the
"dedicated
control
port"
described
later
in
this
section,
and,
in
applications
where
an
AM
station
is
rebroadcasting
an
FM
station,
the
"Stereo
Pilot"
LED
in
an
FM
receiver.
Initial
Programming
The
initial
(programmed
at
the
factory)
user-programmable
settings
are
contained
in
the
Software"
instruction
book.
Battery
Back-up
The
RFC-1
allows
up
to
80
time/date
functions
to
be
programmed
by
the
user.
These
functions
are
stored
in
non-volatile
memory
and
remain
intact
if
power
is
interrupted
to
the
RFC-1,
even
for
extended
periods
of
time.
However,
the
clock/calendar
itself
does
require
continuous
power.
It
is
a
simple
matter
to
reset
the
clock/calendar
after
a
power
outage
but
if
it
were
not
discovered
in
time,
one
or
more
programmed
events
could
be
missed.
For
non-
critical
applications,
this
problem
can
be
lessened
by
programming
the
RFC-1
to
automatically
make
a
call
and
report
power
failures
upon
power
restoration.
The
operator
receiving
the
call
can
then
reset
the
clock
and
calendar.
For
more
critical
applications,
an
uninterruptable
power
supply
is
the
best
solution.
This
has
the
secondary
advantage
of
