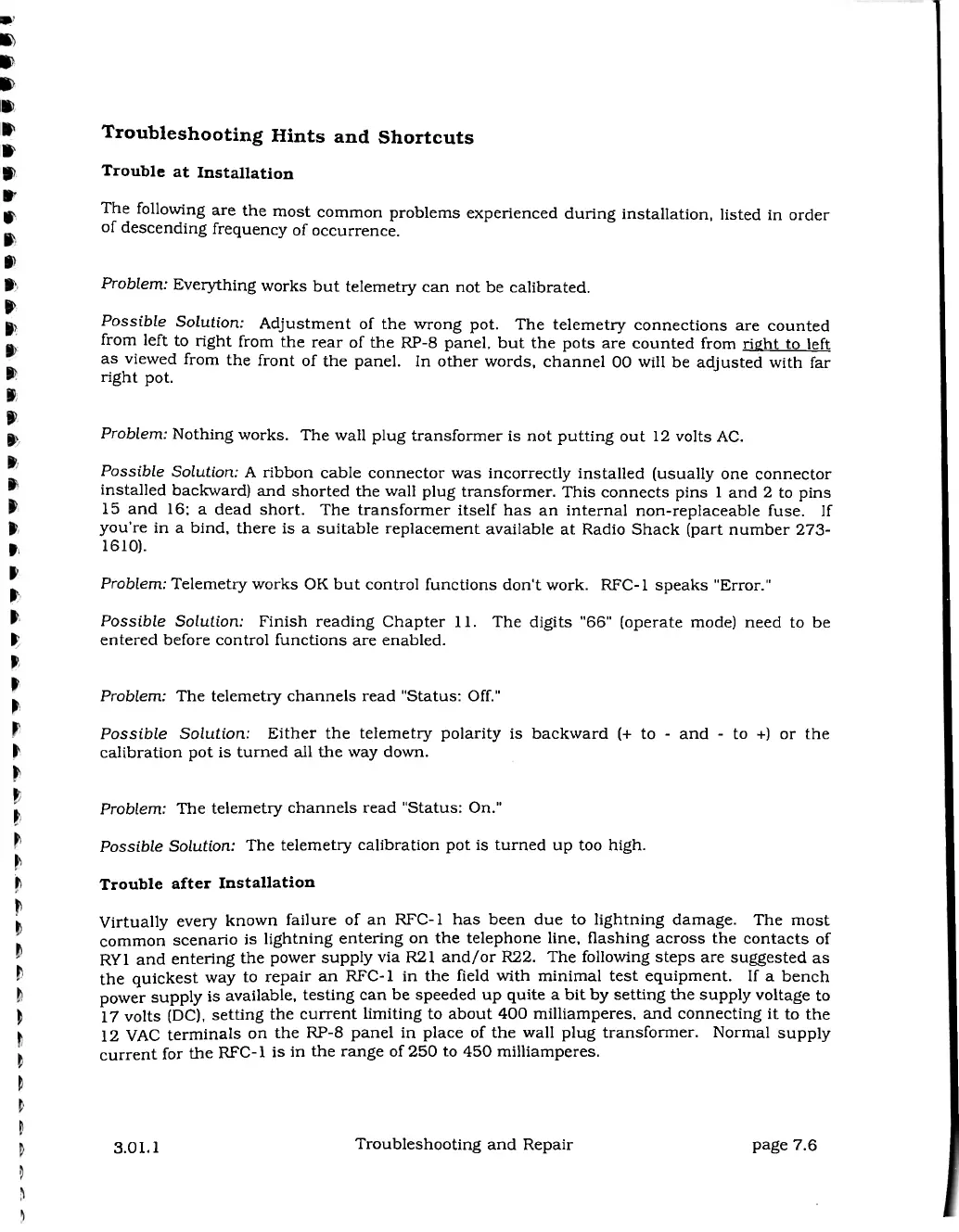

Troubleshooting
Hints
and
Shortcuts
Trouble
at
Installation
The
following
are
the
most
common
problems
experienced
during
installation,
listed
in
order
of
descending
frequency
of
occurrence.
Problem:
Everything
works
but
telemetry
can
not
be
calibrated.
Possible
Solution:
Adjustment
of
the
wrong
pot.
The
telemetry
connections
are
counted
from
left
to
right
from
the
rear
of
the
RP-8
panel,
but
the
pots
are
counted
from
right
to
left
as
viewed
from
the
front
of
the
panel.
In
other
words,
channel
00
will
be
adjusted
with
far
right
pot.
Problem:
Nothing
works.
The
wall
plug
transformer
is
not
putting
out
12
volts
AC.
Possible
Solution:
A
ribbon
cable
connector
was
incorrectly
installed
(usually
one
connector
installed
backward)
and
shorted
the
wall
plug
transformer.
This
connects
pins
1
and
2
to
pins
15
and
16;
a
dead
short.
The
transformer
itself
has
an
internal
non-replaceable
fuse.
If
you
re
in
a
bind,
there
is
a
suitable
replacement
available
at
Radio
Shack
(part
number
273-
1610).
Problem:
Telemetry
works
OK
but
control
functions
don't
work.
RFC-1
speaks
"Error."
Possible
Solution:
Finish
reading
Chapter
11.
The
digits
66"
(operate
mode)
need
to
be
entered
before
control
functions
are
enabled.
Problem:
The
telemetry
channels
read
"Status:
Off."
Possible
Solution:
Either
the
telemetry
polarity
is
backward
(+
to
-
and
-
to
+)
or
the
calibration
pot
is
turned
all
the
way
down.
Problem:
The
telemetry
channels
read
"Status;
On."
Possible
Solution:
The
telemetry
calibration
pot
is
turned
up
too
high.
Trouble
after
Installation
Virtually
every
known
failure
of
an
RFC-1
has
been
due
to
lightning
damage.
The
most
common
scenario
is
lightning
entering
on
the
telephone
line,
flashing
across
the
contacts
of
RY1
and
entering
the
power
supply
via
R21
and/or
R22.
The
following
steps
are
suggested
as
the
quickest
way
to
repair
an
RFC-1
in
the
field
with
minimal
test
equipment.
If
a
bench
power
supply
is
available,
testing
can
be
speeded
up
quite
a
bit
by
setting
the
supply
voltage
to
17
volts
(DC),
setting
the
current
limiting
to
about
400
milliamperes,
and
connecting
it
to
the
12
VAC
terminals
on
the
RP-8
panel
in
place
of
the
wall
plug
transformer.
Normal
supply
current
for
the
RFC-
1
is
in
the
range
of
250
to
450
milliamperes.
3.01.1
Troubleshooting
and
Repair
page
7.6
