Singer 321 KNITTER - Page 17

13

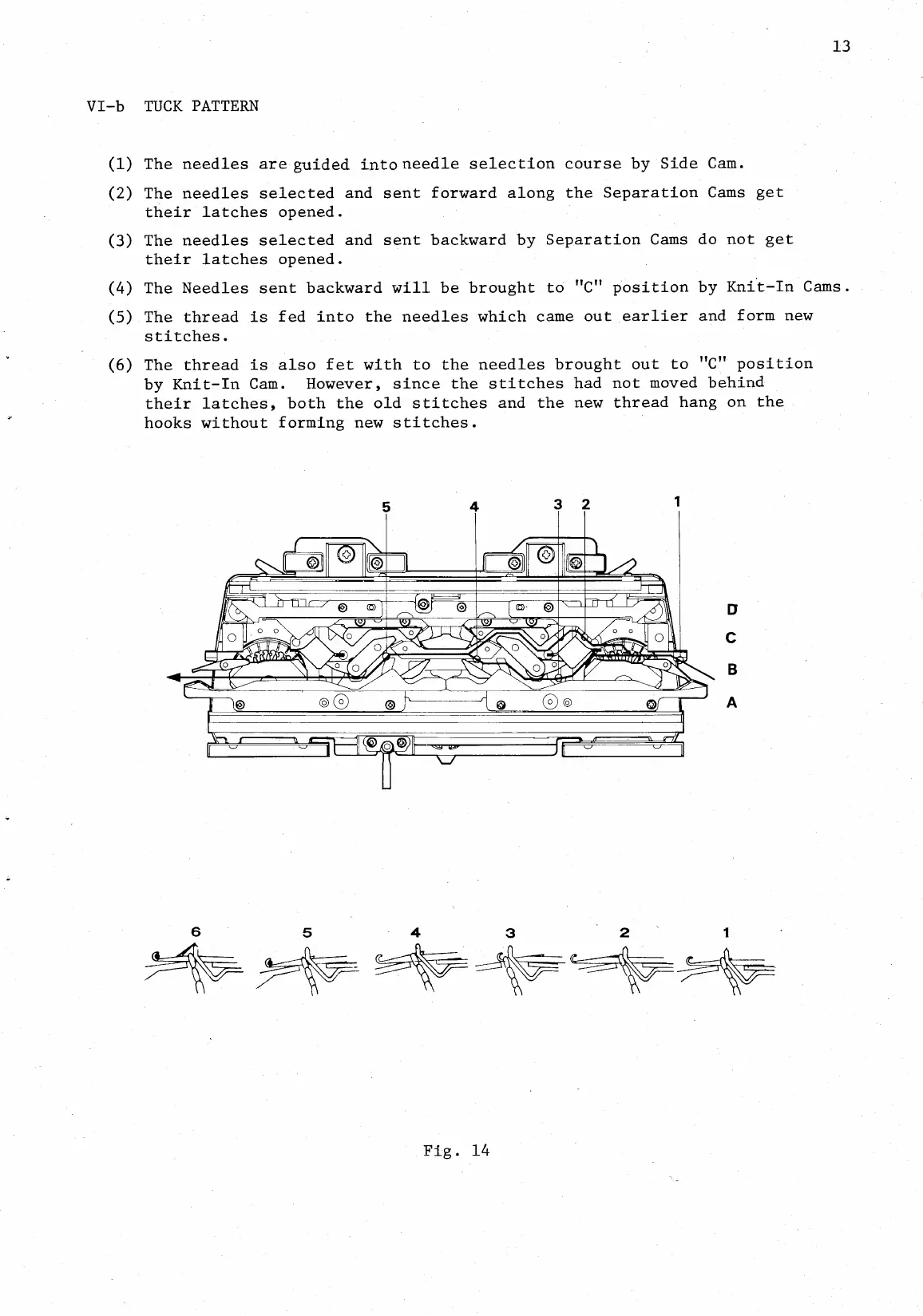

VI
-b TUCK
PATTERN
(1) The needles are
guided
intoneedle selection course by
Side Cam.
(2) The needles
selected and sent
forward along the
Separation Cams get
their
latches opened.
The
needles selected
and sent backward
by Separation Cams
do not get
their
latches opened.
(4) The
Needles sent
backward will be
brought to "C"
position by
Knit -In Cams.
(5)
The thread is fed
into the
needles which came
out earlier and
form new
stitches.
(3)
(6)
The thread is
also fet with
to the
needles brought out
to "C"
position
by Knit
-In Cam.
However, since
the stitches
had not
moved behind
their
latches, both
the old
stitches and the
new thread
hang on the
hooks without
forming new stitches.
5
Fig. 14
2
13
A
1
