19

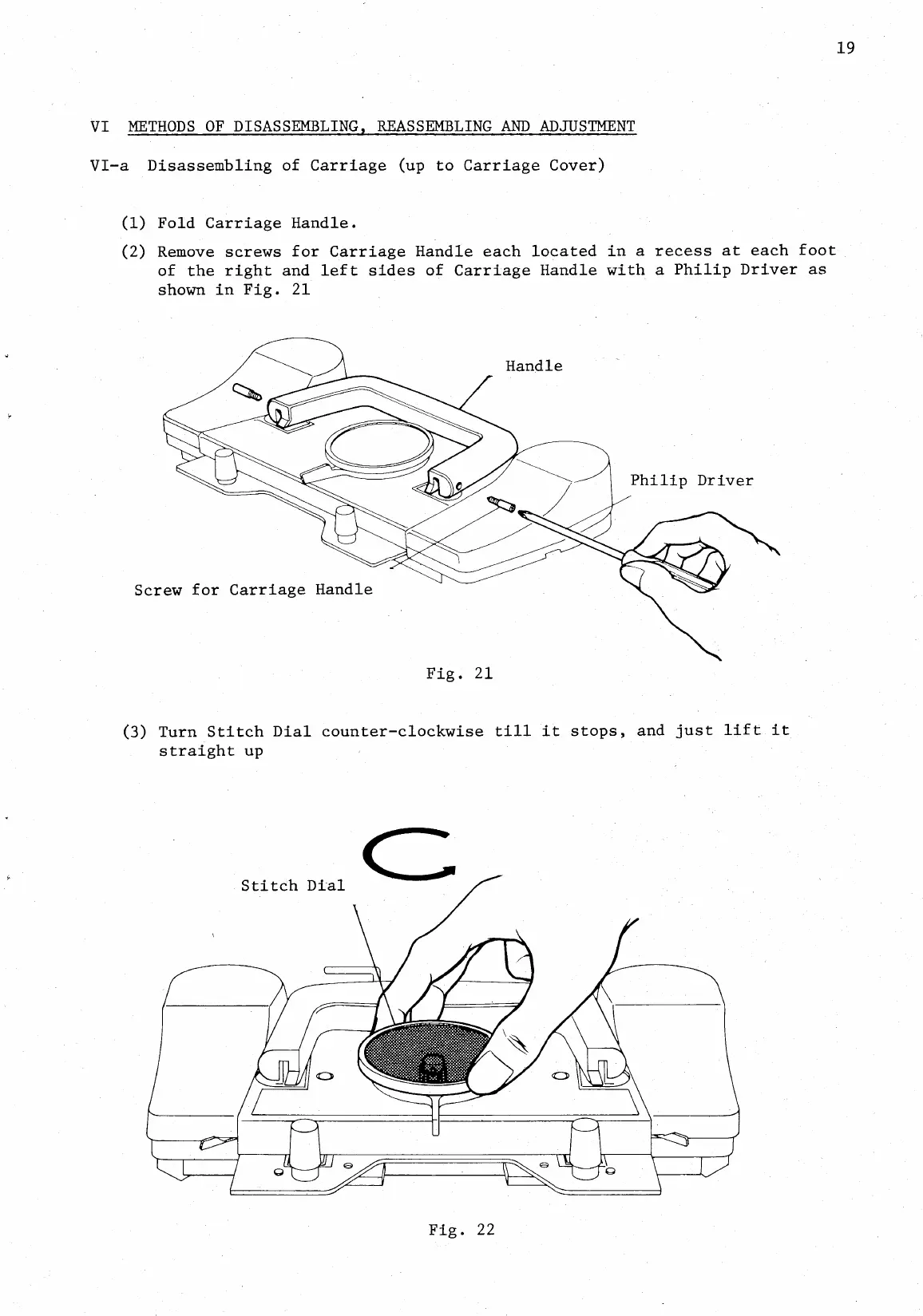

VI METHODS OF DISASSEMBLING, REASSEMBLING
AND ADJUSTMENT
VI -a Disassembling of Carriage (up to Carriage Cover)
(1)
Fold Carriage Handle.
(2) Remove screws for Carriage Handle each
located in a
recess at each foot
of the
right and left
sides of Carriage
Handle with a
Philip Driver as
shown
in Fig.
21
Screw
for
Carriage
Handle
Fig. 21
Handle
Philip Driver
(3)
Turn Stitch
Dial
counter -clockwise till it
stops, and
just
lift it
straight up
Stitch
Dial
Fig.
22
