VI -g COURSE STRIPES
VI-g-1 The
measurement between the inner surface of
Carriage Pipe and both
Main
Cams must be
33.90 + 0.2 m/m
when Stitch Dial reads at 5.
The left and right
Main Cams must be located at an equal distance
from the
inner surface of Carriage
Pipe (Standard Level).
COURSE STANDARD GAUGE must be used to correct
the distance.
-
33.90 ± 0.2%
COURSE
STANDARD
GAUGE

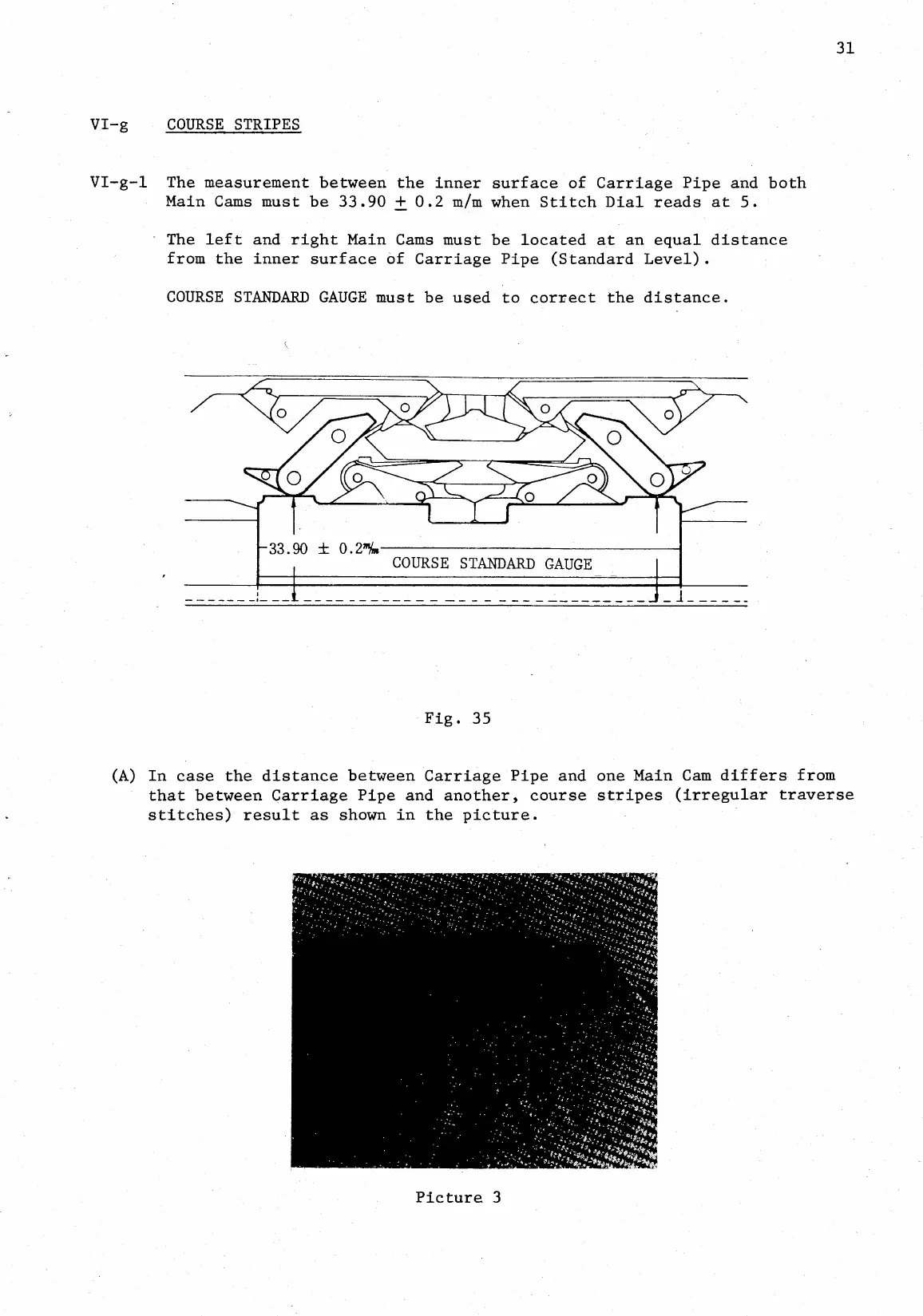

Fig.
35
(A) In case the distance between Carriage
Pipe and one Main Cam differs from
that between Carriage Pipe and
another, course stripes (irregular traverse
stitches) result as shown in the picture.
Picture 3
