34
VI
-h
THE
MEASUREMENT
BETWEEN
NEEDLE
GUIDE
AND
MIDDLE
COURSE
CAM
The
clearance
between
Middle
Course
Cam
and
Needle
Guide
A
must
be
more
than
5
m/m
and
paralelly
located.
In
Knit
-In
pattern
knitting
and
Punch
Lace
Knitting,
the
needles
go
through
between
Needle
Guide
A
and
Middle
Course
Cam.
So
if
this
clearance
is
too
narrow,
the
needle
butts
can
not
go
through
between
them.
Needle
Guide
A
Paralell
Middle
Course
Cam

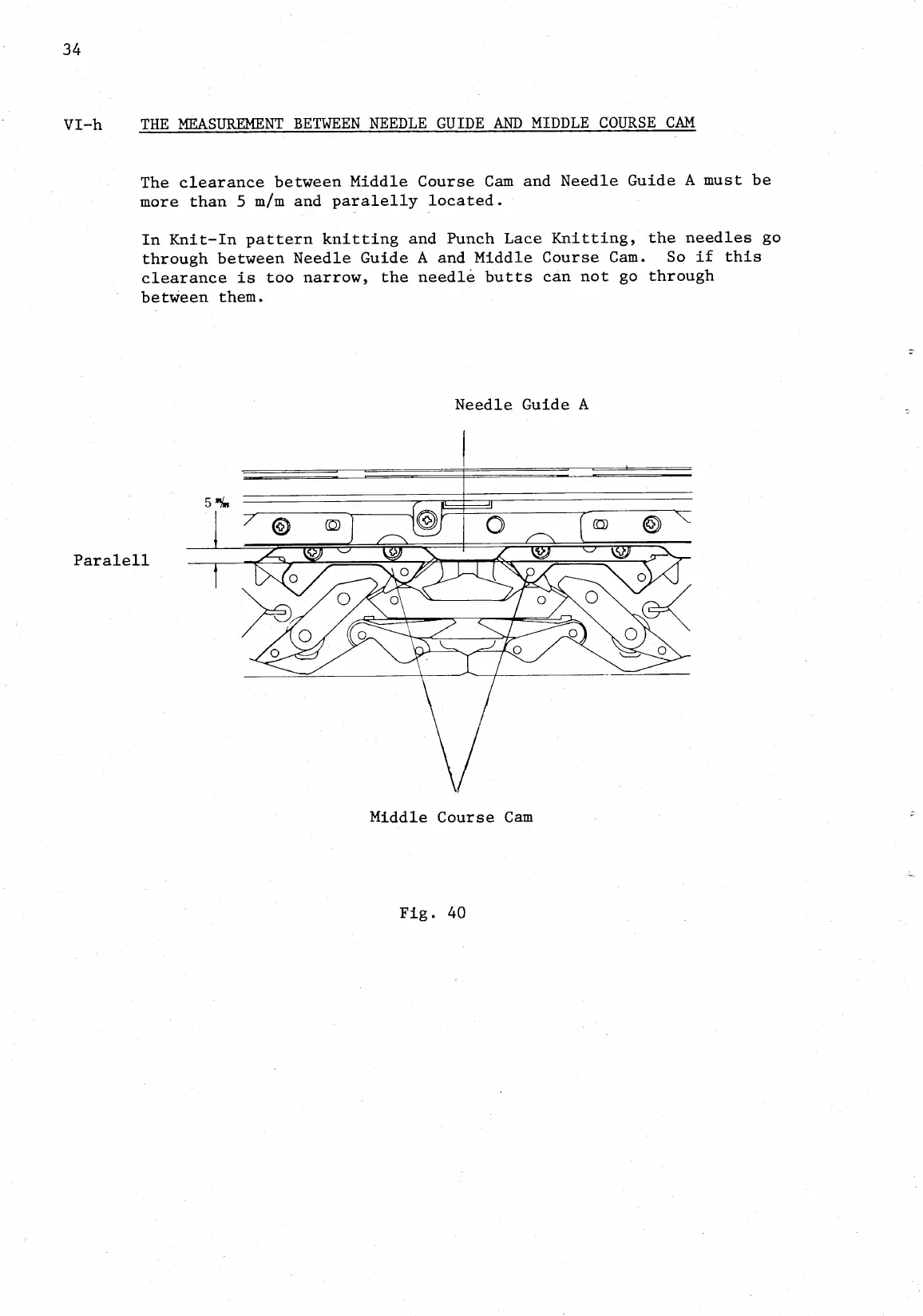

Fig.
40
