36
VI
-j
Joining
Carriage
Plate
A
and
B
In
joining
Carriage
Plate
A
and
Carriage
Plate
B,
Cam
Lever
and
Stitch
Dial
must
be
set
in
Dial
Arbor,
and
Course
Standard
Gauge
also
must
be
set
in
Carriage
Pipe.
Then
set
Stitch
Dial
at
5,
fasten
Receiver
for
Carriage
Plate
A
with
six
screws
while
pushing
Carriage
Plate
A
against
Course
Standard
Gauge.
Receiver
for
Carriage
Plate
A
Carriage
Plate
A
Ak
rummammimillion:
Stitch
Dial

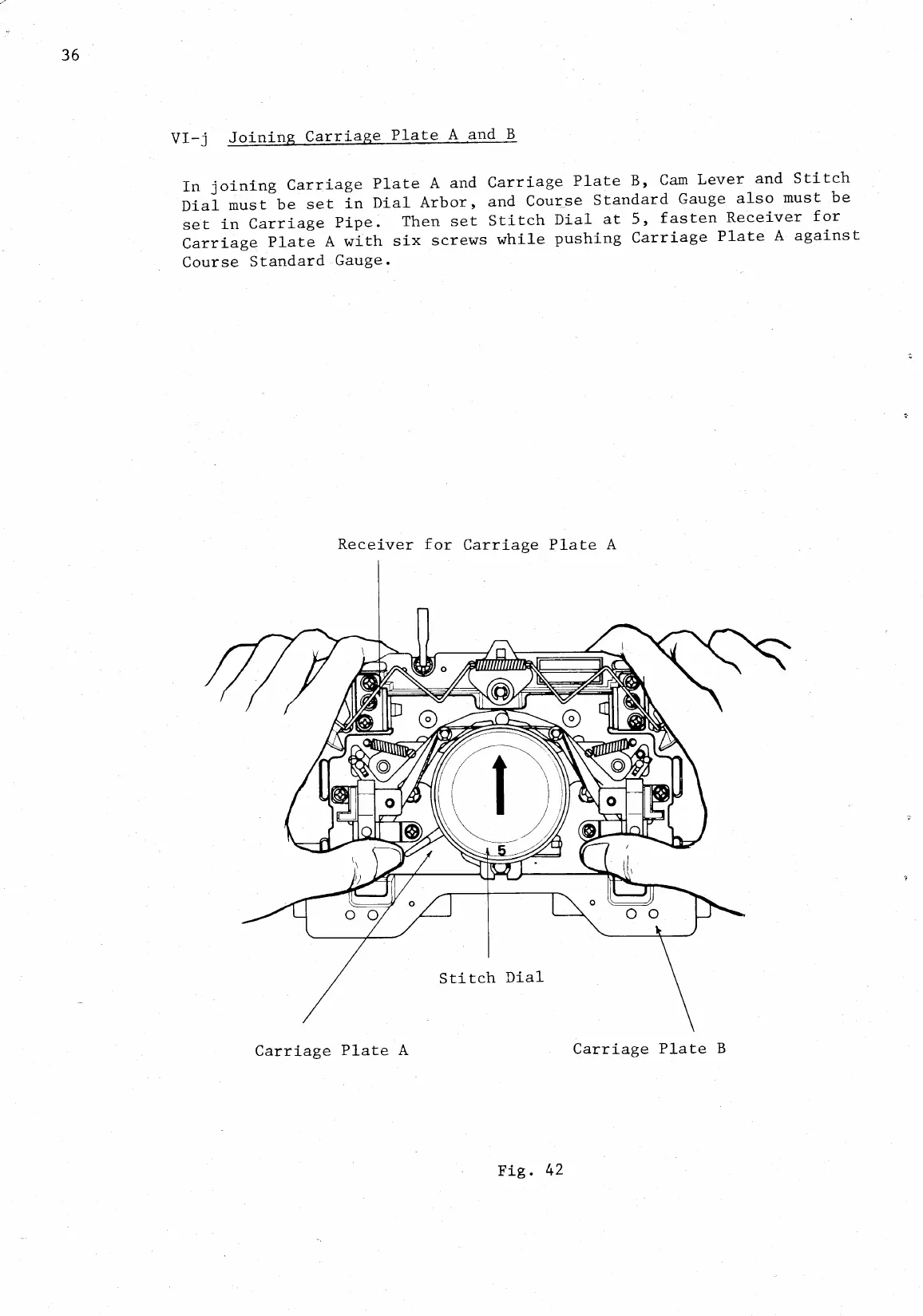

Fig.
42
Carriage
Plate
B
