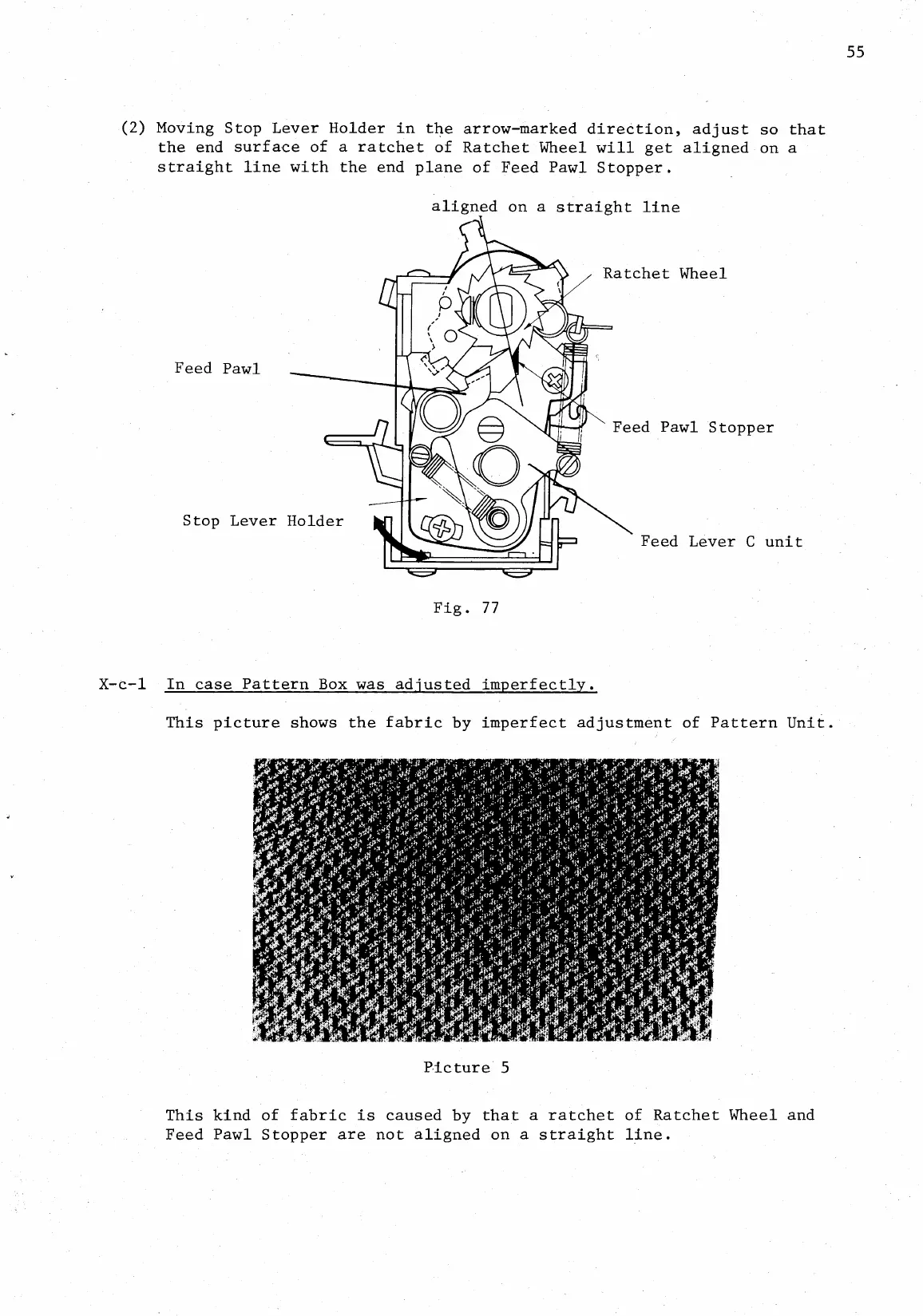

55
(2)
Moving
Stop
Lever
Holder
in
the
arrow
-marked
direction,
adjust
so
that
the
end
surface
of
a
ratchet
of
Ratchet
Wheel
will
get
aligned
on
a
straight
line
with
the
end
plane
of
Feed
Pawl
Stopper.
aligned
on
a
straight
line
Feed
Pawl
Feed
Pawl
Stopper
Stop
Lever
Holder
Feed
Lever
C
unit
Fig.
77
X
-c-1
In
case
Pattern
Box
was
adjusted
imperfectly.
This
shows
the
fabric
by
imperfect
adjustment
of
Pattern
Unit.
5
This
kind
of
fabric
is
caused
by
that
a
ratchet
of
Ratchet
Wheel
and
Feed
Pawl
Stopper
are
not
aligned
on
a
straight
line.
