63

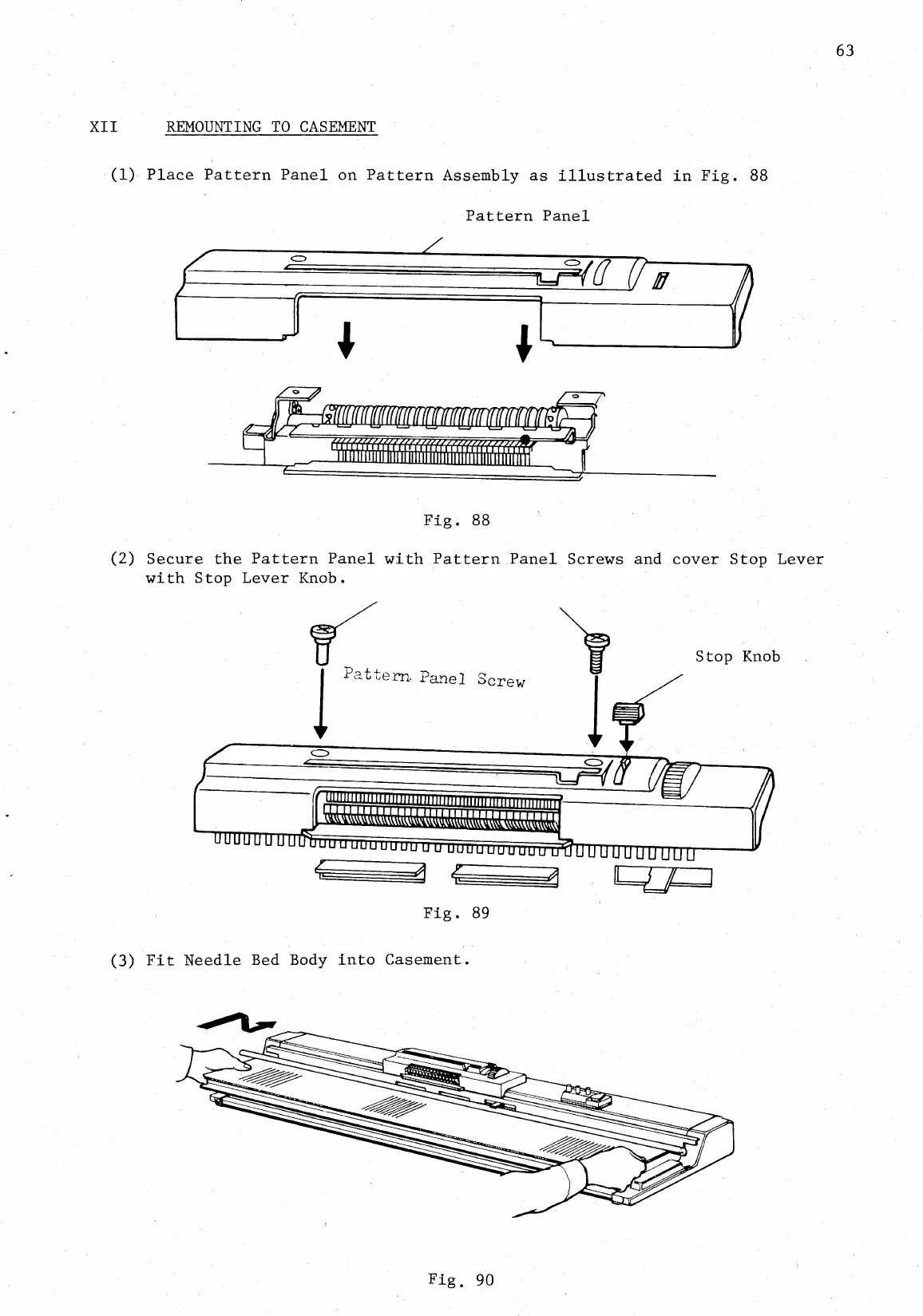

XII REMOUNTING TO CASEMENT
(1)
Place Pattern
Panel on Pattern
Assembly as
illustrated in Fig. 88
Pattern Panel
A
NEWNEFICEINIMEHEEK
z
fi
riffiffififinifffiftiffit
Fig.
88
(2) Secure the Pattern
Panel with pattern Panel Screws and cover Stop Lever
with Stop
Lever Knob.
ULIULILIU
ULI
Pattern
Panel
Screw
IIMIIMIMMIMONNIN1111111111111111MMIIIIMIllell
VvVVAIMIAMMIMMMIXIMIMAMMV
UULJULJULILIULJ
Fig.
89
(3)
Fit
Needle Bed
Body into
Casement.
Stop Knob
Fig.
90
