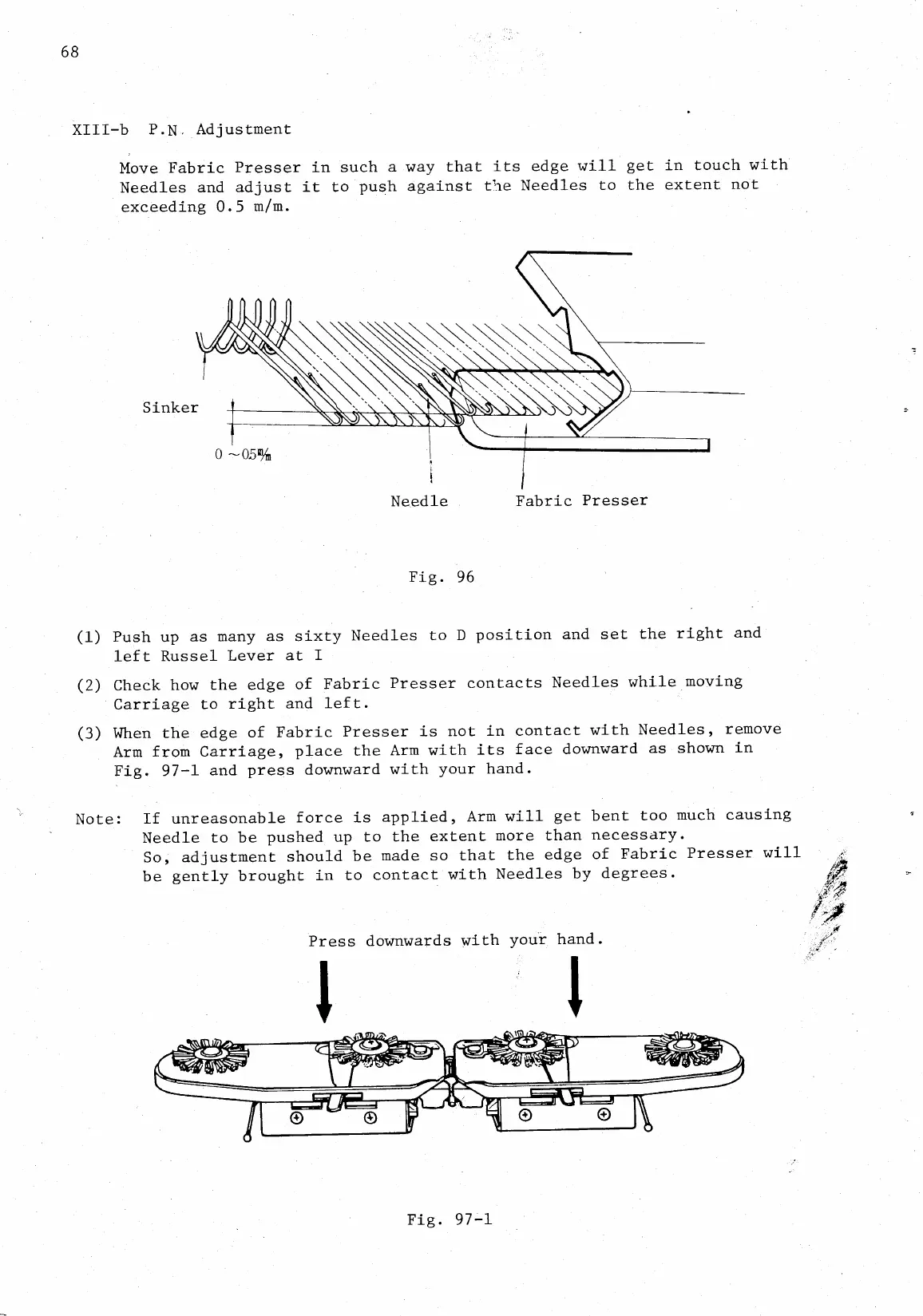

Singer 321 KNITTER - Page 72

68
XIII-b
P.N.
Adjustment
Move
Fabric
Presser
in
such
a
way
that
its
edge
will
get
in
touch
with
Needles
and
adjust
it
to
push
against
the
Needles
to
the
extent
not
exceeding
0.5
m/m.
NNN.
Sinker
0
—05%
Needle
Fig.
96
Fabric
Presser
(1)
Push
up
as
many
as
sixty
Needles
to
D
position
and
set
the
right
and
left
Russel
Lever
at
I
(2)
Check
how
the
edge
of
Fabric
Presser
contacts
Needles
while
moving
Carriage
to
right
and
left.
(3)
When
the
edge
of
Fabric
Presser
is
not
in
contact
with
Needles,
remove
Arm
from
Carriage,
place
the
Arm
with
its
face
downward
as
shown
in
Fig.
97-1
and
press
downward
with
your
hand.
Note:
If
unreasonable
force
is
applied,
Arm
will
get
bent
too
much
causing
Needle
to
be
pushed
up
to
the
extent
more
than
necessary.
So,
adjustment
should
be
made
so
that
the
edge
of
Fabric
Presser
will
be
gently
brought
in
to
contact
with
Needles
by
degrees.
Press
downwards
with
your
hand.
Fig.
97-1
