LUBRICATION AND CLEANING
Use
SINGER* OIL, "TYPE B"
or
"TYPE
D".
Use
"TYPE
D"
OIL
when
an
oil
is
desired
which
will
produce
minimum stain
on
fabrics.
A machine in
continuous
use
should
be
oiled
fre-
quently.
Frequency
is
dependent
upon
the
speed
at
which the machine
is
operated
and
the
type
of
work
being
done.
Basically the machine needs
oiling
at
least
twice
each
working
day.
Before
starting
the machine,
at
the
beginning
of
the
day
and
again
after
the
midday
recess,
apply
a
few
drops
of
oil
at
each
of
the
oiling
points on the machine.
Arrows
indicate
oiling
points in
Figs. 2
through
5.
Never
attempt
to
oil
shuttle
race
(See
Fig.
S)through
holes in
throat
plate.
REMOVE
SCREW
AND
REMOVE
FACE
PLATE
4
BOBBIN WINDER LUBRICATION
Oil
bobbin
winder
occasionally
by
applying
a
few
drops
of
oil
to
oil
wick
in
bobbin
winder
frame,
as
instructed in
Fig.
11,
page
7.
CLEANING
Clean
out
all
lint
and
abrasive
matter
from
around
the shuttle
and
between
the
feed
rows on the
under-
side
of
the
throat
plate.
Close
all
covers
after
oiling
and
cleaning.
Wipe
off
excess
oil
from
surfaces
of
machine
that
may
come in
contact
with
material.
•
•

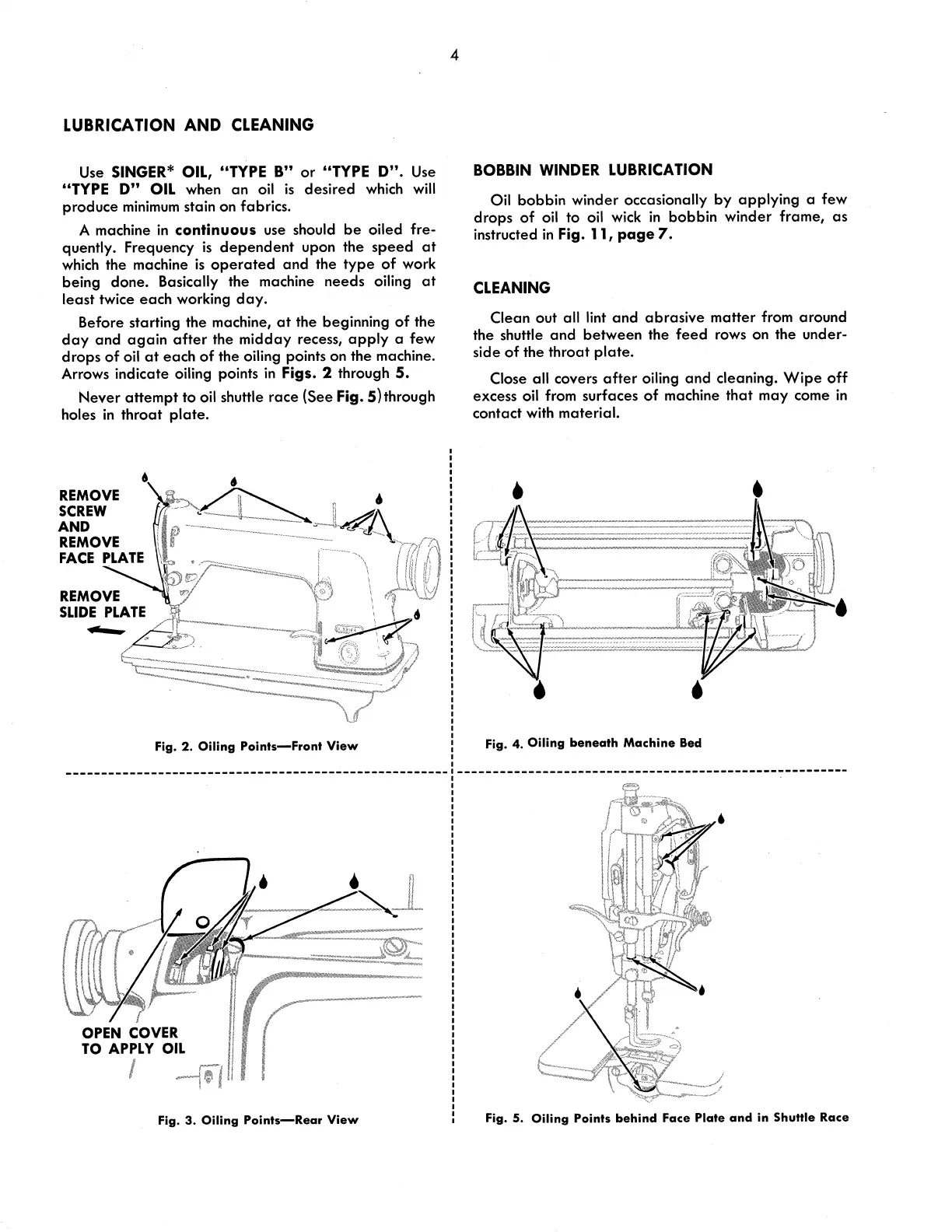

Fig.
2.
Oiling
Points-Front
View
Fig. 4. Oiling beneath Machine
Bed
•
#S·~li.
(//r(F_,""·
:.".c:..=,.~'lff!!:,'t:'::::~;":·~::·:::~"=:::.~:.::;;,:;::::':"
\
'
'
Fig.
3.
Oiling
Points-Rear
View
Fig.
5.
Oiling
Points
behind
Face
Plate
and
in
Shuttle
Race
