{j

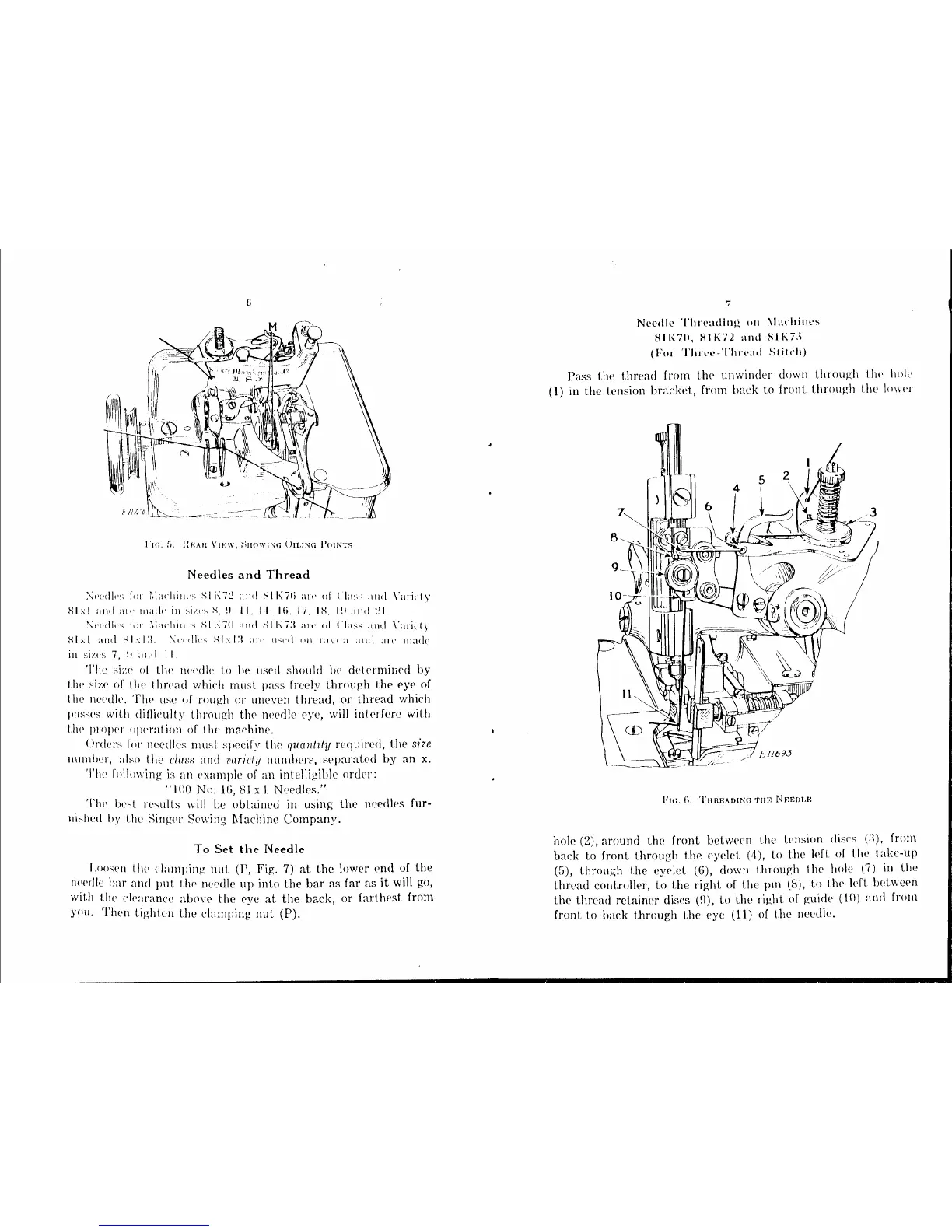

1.-w. fi. Hr:An Vn:w, ;';nowiNG Oli.ING !'oiNT"
Needles and Thread
:\i•t·dlt·s f.,r !\Licliill<'S Sll\7:! :tnd Sll\71) ;m· of (lass dlld \'aridy
Sl:d and :tit' llldd1· i11 ..,j;, . .., S, !1, II. II, Hi, 17, IS, l!l dlld :?I
:\tTdks f"r ~Licliilll'S Sll\711 and Sll\7:1 ;JJ(' of !');Iss ;JJHI \';tlil'ly
Hlxl and Hl\1:1. \,·,·dks Sl\1:1 dll' JJs,·d <>It J:I\IJ:I :111d :Ill' lllad1~
ill si;,·s 7, !I :111.! II
The sizP or llw tH'edk to he used shoulu be determined by
t lw size or t lw t lm·ad which must pass freely through the eye of
the tH'l'dh•. Tlw usc of rough or uneven thread, or thread which
passps with dilli<·ulty through the needle eye, will in!Prfcre with
t.he proper <IJH'ration of l h1• tnaC'hine.
Ordns for Jll'edles must specify the quanlitu required, the s1'ze
number, also the cia~>~> and 1•aricty numbers, spparatcd by an x.
Tlw l'ollowing is an example of an intelligible order:
"100 No. lG, 81 x 1 Needles."
Tlw best resul Ls will he obtained in using the needles fur-
nished hy the Singer S1•wing ~lachine Company.
To Set the Needle
r ,oosen t hl' clamping nul (P, Fig. 7) at the lower l'IHI of lhe
rw<·dlc bar and put. thP needle up inlo the bar as far as it will go,
with the cl<•arance abovP the pye at the back, or farthest from
you. Then tighten Uw clamping nut (P).
7
Needle Tlu-eading un 1\larhines
81K70, HIK72 and HIK7.~
(For Thn•L•-Thl·l'<lll Stitch)
Pass the thread from the unwinder down through the lwk
(1) in the tension bracket, from back to front through the lower
Fw. G. TmtF.ADING Tim NF.EDLE
hole (2), around the front between Llw LPnsion discs (:~). from
back to front through the eyelet ('1), to the kft. of the take-up
(G), through the eyPiel (6), down through the hole (7) in the
thread controller, Lo the right. of the pin (8), to the JpfL belwcPn
the thread retainer dises (~)), to tlw right of guide (10) and from
front to hack through the eye (11) of the needle.
From the library of: Superior Sewing Machine & Supply LLC
