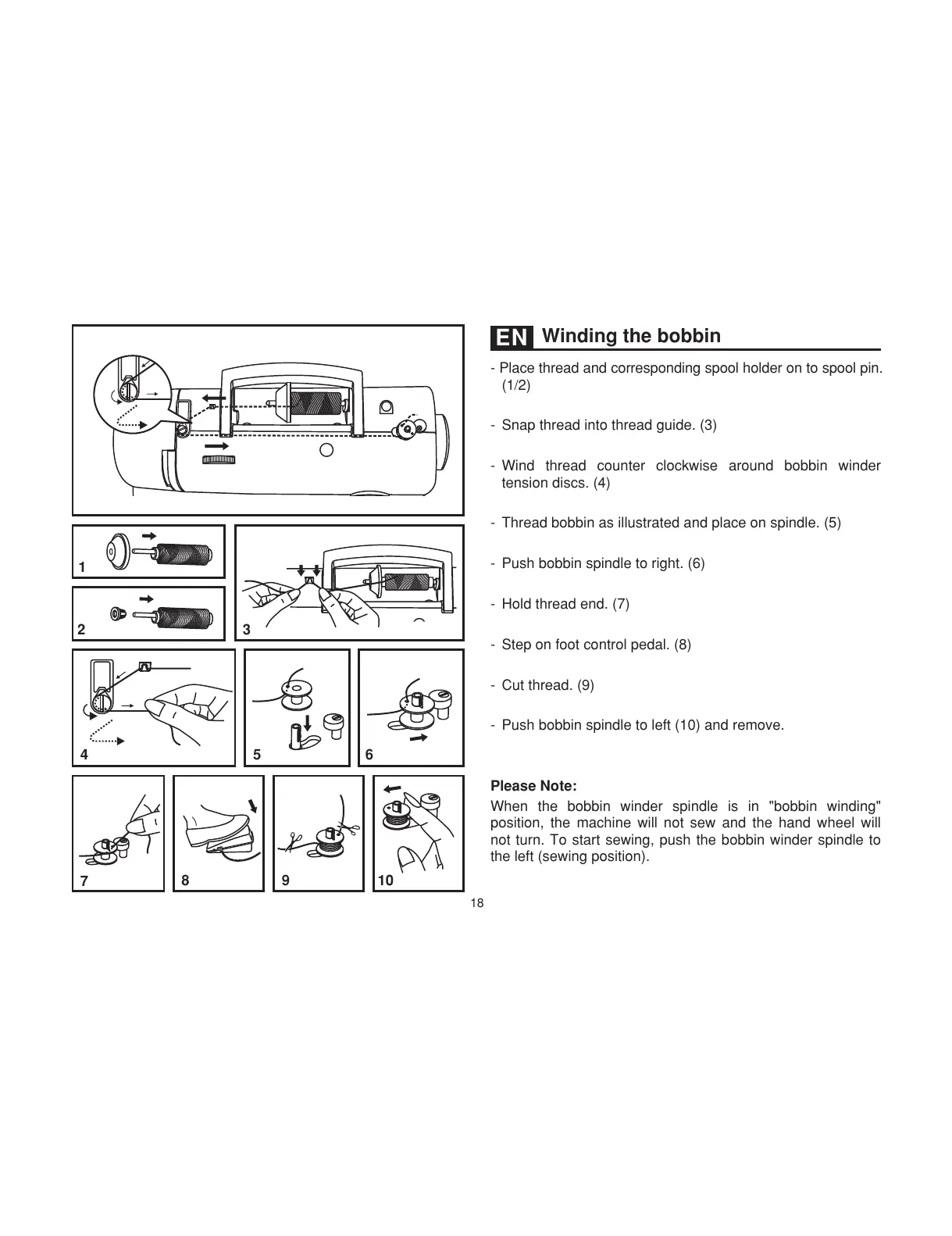

Winding the bobbin
EN
- corresponding .
(1/2)
- Snap thread into thread guide. (3)
- Wind thread counter clockwise around bobbin winder
tension discs. (4)
- Thread bobbin as illustrated and place on spindle. (5)
- Push bobbin spindle to right. (6)
- Hold thread end. (7)
- Step on foot control pedal. (8)
- Cut thread. (9)
- Push bobbin spindle to left (10) and remove.
When the bobbin winder spindle is in "bobbin winding"
position, the machine will not sew and the hand wheel will
not turn. To start sewing, push the bobbin winder spindle to
the left (sewing position).
Please Note:
Place thread and spool holder on to spool pin
3
10
