Sioux Tools 956 - Page 10

SIOUX
TOOLS

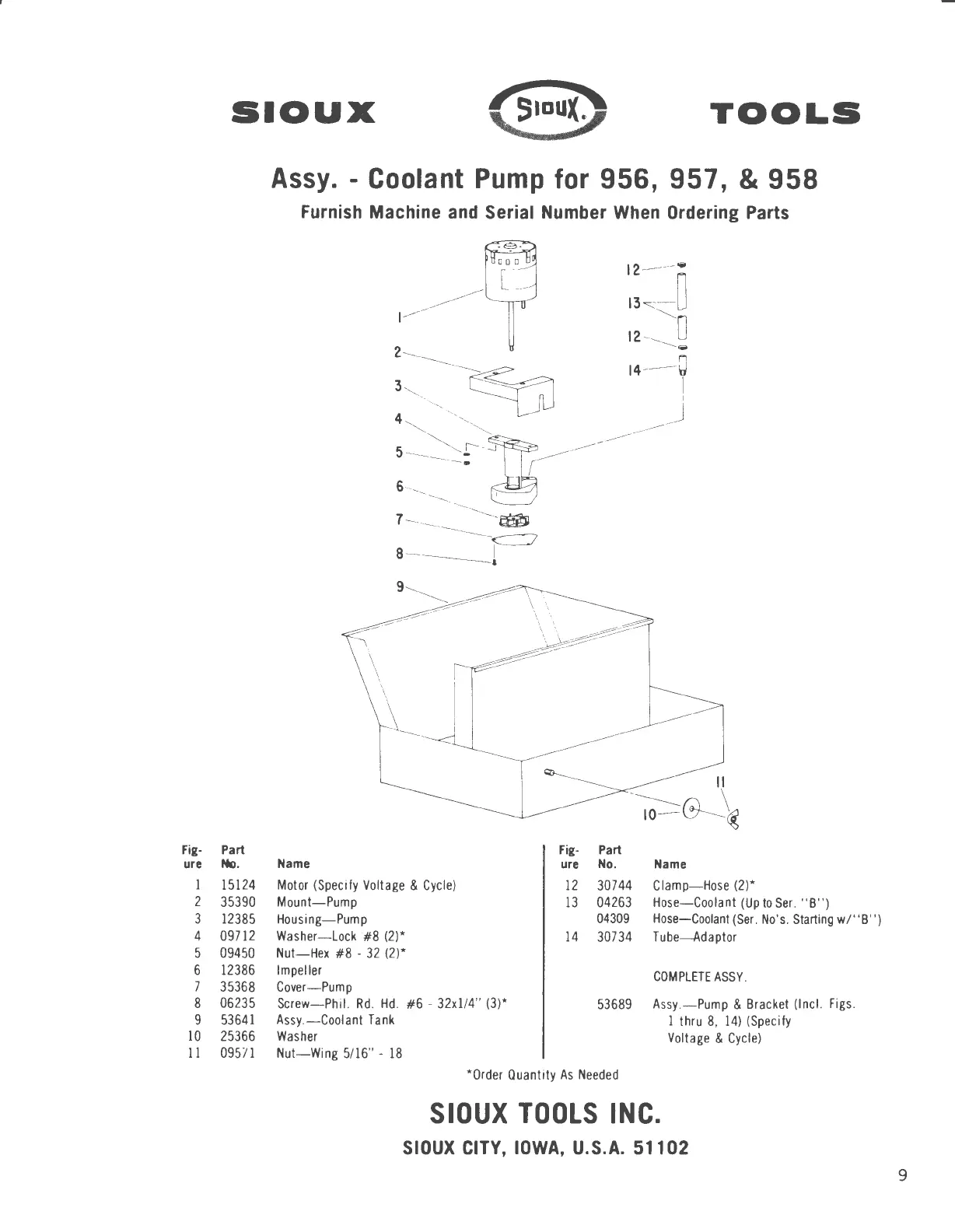

Assy. - Coolant Pump for 956, 957, & 958
Furnish Machine and Serial Number When Ordering Parts
II
-~&--\
Fig- Part Fig-
Part
ure
No . Name
ure No. Name
1 15124 Motor (Specify Voltage & Cycle)
12 30744
Clamp-Hose (2)*
2
35390
Mount-Pump
13 04263 Hose-Coolant (Up to Ser . " B")
3 12385 Housing-Pump
04309
Hose-Coolant (Ser . No 's. Starting w/"B")
4 09712 Washer-Lock #8 (2)*
14 30734 Tube-Adaptor
5
09450 Nut-Hex #8 - 32 (2)*
6 12386 Impeller
COMPLETE ASSY .
7
35368 Cover-Pump
8
06235
Screw-Phil. Rd . Hd . #6 - 32x1 /4" (3)*
53689
As sy . -Pump & Bracket (Incl. Figs.
9
53641
Assy . -Coolant Tank
1 thru 8, 14) (Specify
10 25366 Washer
Voltage & Cycle)
11 09571 Nut-Wing 5/16 " - 18
*Order Quantity As Needed
SIOUX TOOLS INC.
SIOUX CITY, IOWA, U.S.A. 51102
9
