SIOUX
Q:9
TOOLS

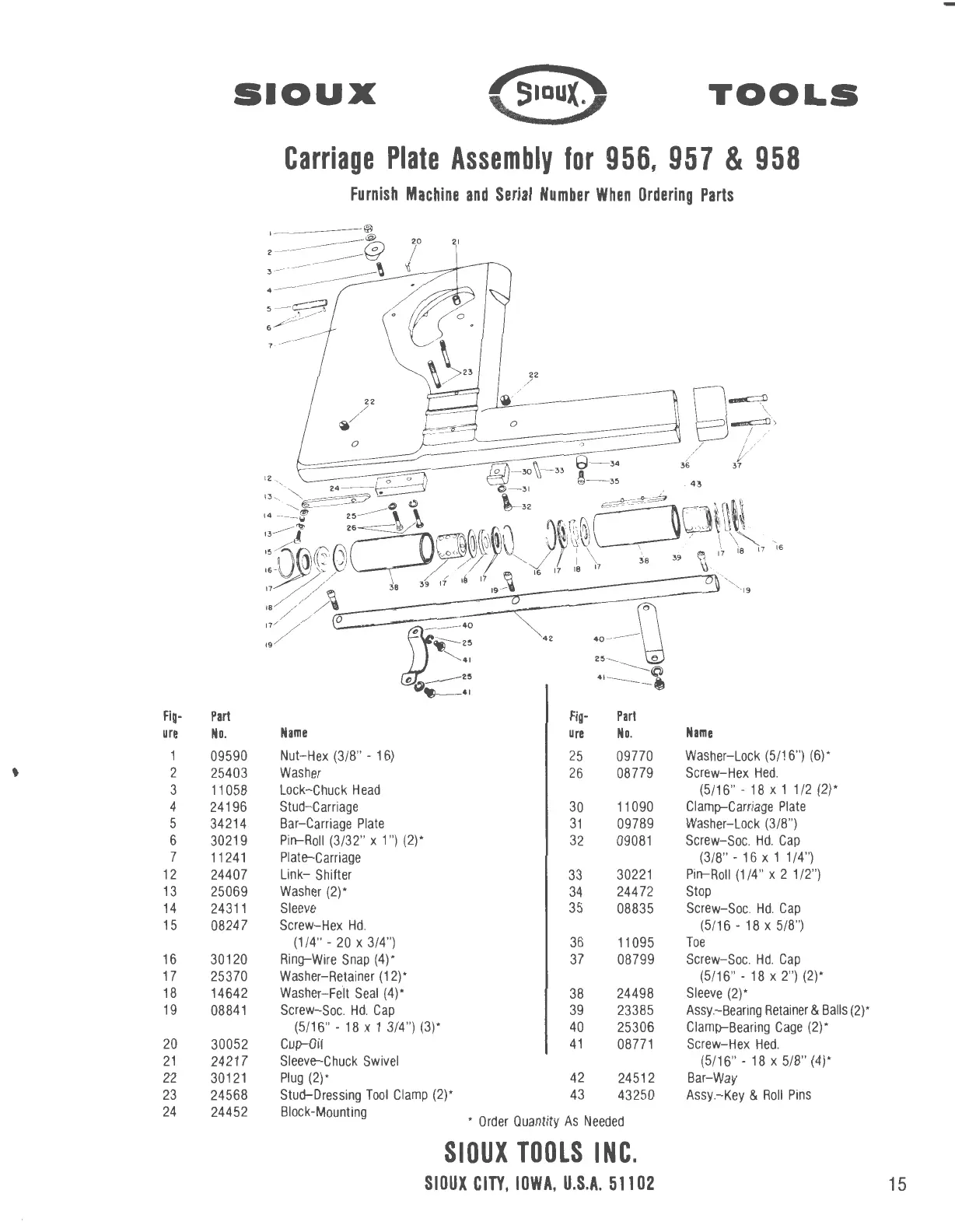

Carriage Plate Assembly for 956, 957 & 958
Furnish Machine and Serial Number When Ordering Parts
Fig-
Part
Fig-
Part
ure No.
Name ure No. Name
1
09590
Nut-Hex (3/8" - 16)
25 09770
Washer-Lock (5/16") (6)*
2 25403
Washer
26 08779
Screw-Hex Hed .
3
11058 Lock-Chuck Head
(5/16"- 18 X 1 1/2 (2)*
4
24196 Stud-Carriage
30
11090
Clamp--Carriage Plate
5 34214
Bar-Carriage Plate
31
09789 Washer-Lock (3/8")
6 30219
Pin--Roll (3/32" x 1 ") (2)*
32
09081 Screw-Soc . Hd . Cap
7 11241 Plate-Carriage
(3/8 " - 16 X 1 1 /4")
12 24407
Link- Shifter
33
30221
Pin--Roll (1 /4 " x 2 1 /2 ")
13 25069 Washer (2)*
34
24472 Stop
14 24311
Sleeve 35
08835
Screw-Soc . Hd . Cap
15 08247 Screw-Hex Hd .
(5/16 - 18 X 5/8")
(1/4" - 20 X 3/4")
36
11095 Toe
16 30120
Ring--Wire Snap (4)*
37 08799
Screw-Soc . Hd . Cap
17 25370
Washer-Retainer (12)* (5/16" - 18 X 2 ") (2)*
18 14642
Washer-Felt Seal (4)*
38
24498
Sleeve (2)*
19 08841 Screw-Soc . Hd . Cap
39
23385
Assy . -Bearing Retainer & Balls (2)*
(5/16" - 18 X 1 3/4") (3)*
40 25306
Clamp--Bearing Cage (2)*
20 30052
Cup--Oil
41 08771
Screw-Hex Hed .
21
24217 Sleeve-Chuck Swivel
(5/16" - 18 X 5/8 " (4) *
22 30121
Plug (2)*
42 24512
Bar-Way
23 24568
Stud-Dressing Tool Clamp (2)*
43
43250
Assy .- Key & Roll Pins
24 24452
Block-Mounting
• Order Quantity As Needed
SIOUX TOOLS INC.
SIOUX CITY, IOWA, U.S.A. 51102
15
