SIOUX ® TOOLS

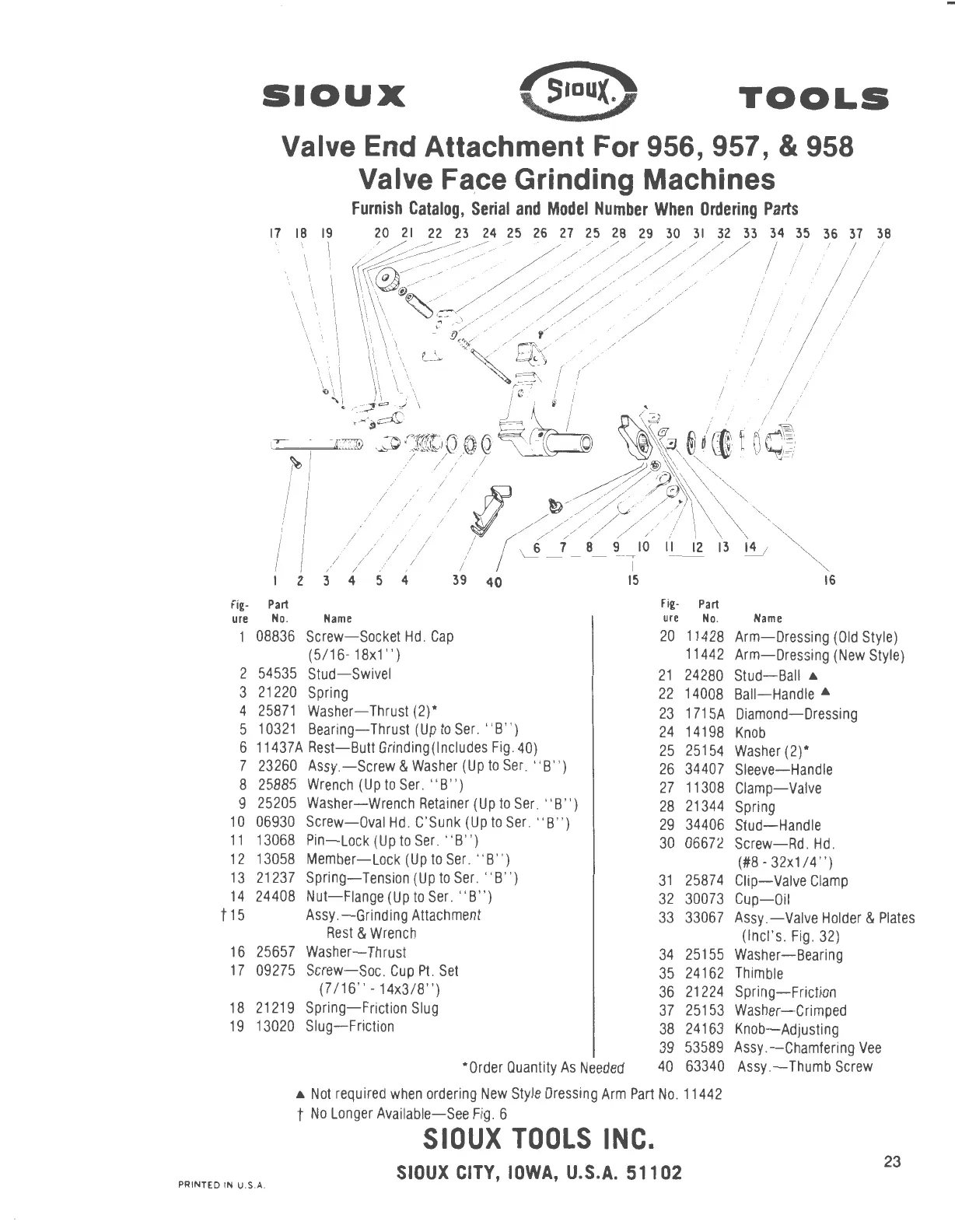

Valve End Attachment For 956, 957, & 958
Valve Fa.ce Grinding Machines
Furnish Catalog, Serial and Model Number When Ordering Parts
17 18 19 27 25 28 29 30 31 32 33 34 35 36 37 38
I 2 3 4 5 4
39 40
Fig- Part
ure No . Name
1 08836 Screw-Socket Hd . Cap
(5/16- 18x1 ")
2 54535 Stud-Swivel
3
21220 Spring
4 25871 Washer- Thrust (2)*
5
10321 Bearing-Thrust (Up to Ser . " B" )
6
11437 A Rest-Butt Grinding( Includes Fig. 40)
7 23260 Assy . -Screw & Washer (Up to Ser . '' B' ·)
8 25885 Wrench (Up to Ser . " B" )
9
25205 Washer-Wrench Retainer (Up to Ser . "B " )
10 06930 Screw-Oval Hd . C' Sunk (Up to Ser . " B" )
11 13068 Pin-Lock(UptoSer. " B")
12 13058 Member-Lock (Up to Ser . "B")
13 21237 Spring-Tension(UptoSer. " B" )
14 24408 Nut-Flange (Up to Ser. "B")
t 15 Assy . -Grinding Attachment
Rest & Wrench
16 25657 Washer- Thrust
17 09275 Screw-Soc. Cup Pt . Set
(7/16" -14x3/8" )
18 21219 Spring-Friction Slug
19 13020 Slug-Friction
*Order Quantity As Needed
Fig-
ure
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
16
Part
No. Name
11428
Arm-Dressing (Old Style)
11442
Arm-Dressing (New Style)
24280
Stud-Ball ""
14008
Ball-Handle ""
1715A Diamond-Dressing
14198 Knob
25154 Washer (2)*
34407 Sleeve-Handle
11308 Clamp-Valve
21344 Spring
34406 Stud-Handle
06672 Screw-Rd. Hd.
(#8- 32x1/4")
25874
Clip-Valve Clamp
30073 Cup-Oil
33067 Assy . -Valve Holder & Plates
(lncl's. Fig . 32)
25155
Washer-Bearing
24162 Thimble
21224 Spring-Friction
25153
Washer-Crimped
24163
Knob-Adjusting
53589
Assy . -Chamfering Vee
63340
Assy .- Thumb Screw
"" Not required when ordering New Style Dressing Arm Part No . 11442
t No Longer Available-See Fig . 6
SIOUX TOOLS INC.
SIOUX CITY, IOWA, U.S.A. 51102
PRINTED IN U.S.A.
23
