Sioux Tools SRS6P - Page 22

Form ZCE777 22 Date 2018May23/M

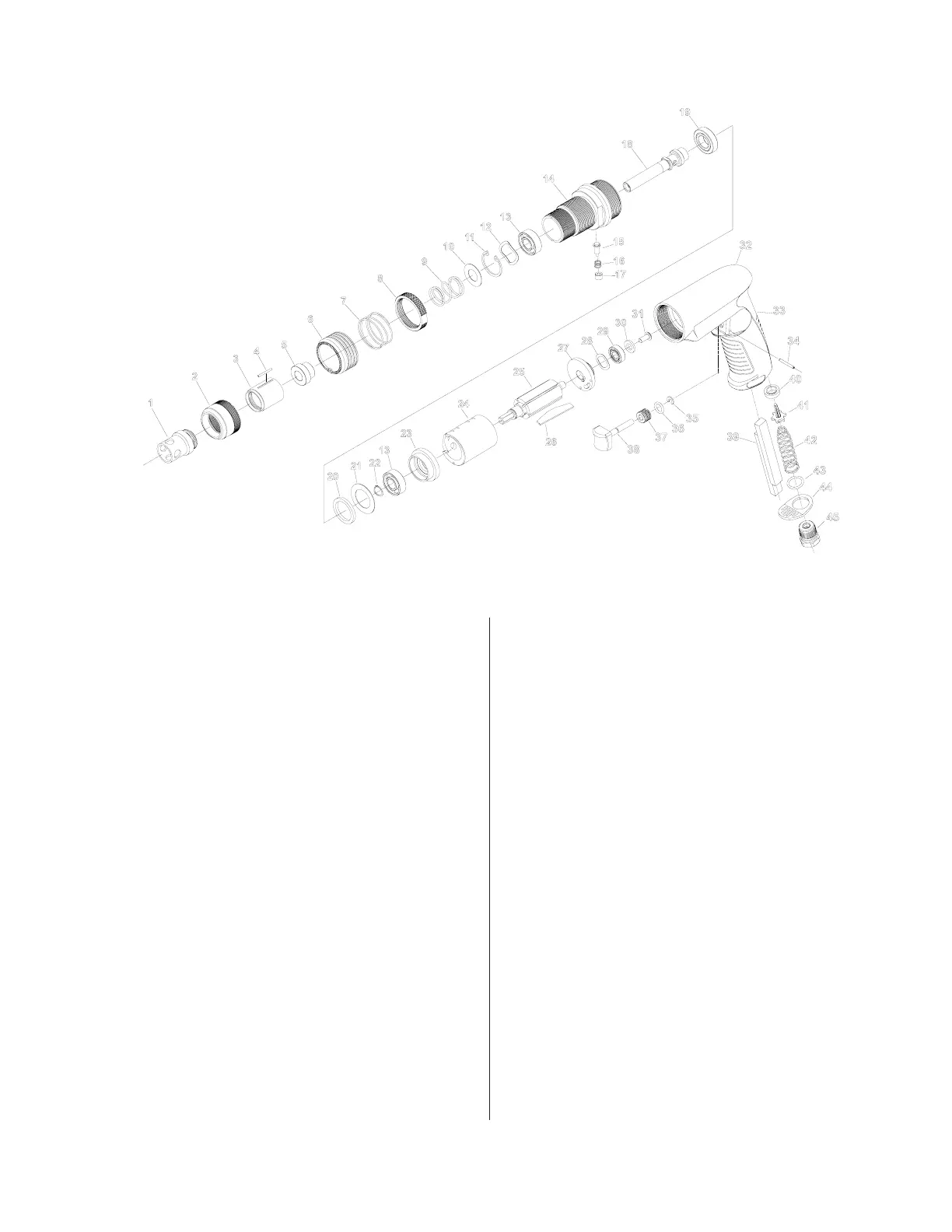

PARTS LIST FOR
SRS6P SERIES PISTOL RIVET SHAVERS
SERIAL “A”
*Order Quantity As Required
FURNISH CATALOG, SERIAL, AND MODEL NUMBER
WHEN ORDERING PARTS
Fig. Part
No. No. Description
Fig. Part
No. No. Description
1. 2925-5 Cutter Skirt (5/16")
2925-6 Cutter Skirt (3/8")
2925-7 Cutter Skirt (7/16")
2925-8 Cutter Skirt (1/2")
2925-9 Cutter Skirt (9/16")
2925-9W Cutter Skirt (9/16" Wide Stance)
2925-10 Cutter Skirt (5/8")
2. 74264 Adjusting Nut
3. 74265 Skirt Guide
4. 74276 Pin 1/16" x 5/8"
5. 74266 Bushing
6. 74267 Lock Slide
7. 74272 Spring
8. 74268 Lock Ring
9. 74271 Compression Spring
10. 74263 Washer
11. 74273 Internal Retaining Ring
12. ME5C15 Wave Washer
13. 10257 Ball Bearing (2)*
14. 74261 Rivet Shaver Housing
15. 74269 Lock Pin
16. 21206 Spring
17. 65175 Cap - Lock Pin
18. 74262 Output Shaft
19. 67216 Ball Bearing
20. SWG-94 Angle Head Spacer
21. SWG-96 Optional Spacer for Orientation
22. 74277 Bowed External Retaining Ring
23. 74038 Front End Plate
24. 74034 Cylinder, Non-Reversing (25000 RPM)
25. 74260 Rotor
26. SP74049 Vane Set
27. 74023 Rear End Plate
28. 41338 Wave Washer
29. 10253 Ball Bearing
30. 74054 Washer
31. 74055 Screw
32. SDR-3 Pistol Non-Reversing Housing
33. SPSDR-28 Grip (Includes Grip Tape)
34 30610 Roll Pin 5/64 x 3/4 in
35. 21542 Retaining Ring
36. 14311 O-Ring
37. SDR-23 Trigger Sleeve
38. SDR-200 Trigger
39. 04046 Silencer Pad (2)*
40. IM3100-22 Trigger Valve Seat
41. SDR-20 Tipper
42. SDR-13 Trigger Spring
43. 69007 O-Ring
44. SDR-35 Exhaust Cap
45. 66244R Inlet Adapter
Not Shown:
74274A Stabilizer Assembly
37
31
32
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
13
21
22
23
25
26
27
28
29
30
33
34
35
36
38
39
40
41
42
43
24
44
45
