Form ZCE777 25 Date 2018May23/M
25
26
27
28
29
31 (Install with
Loctite 242)
33
36
37
38
39
40
41
42
34
35
43 (Torque to
20-25 lb ft)
20
21
22
23
24
1
2
3
4
5
6
7
8
9
10
11
12
13
15
16
17
18
19
9
9
32
14
30

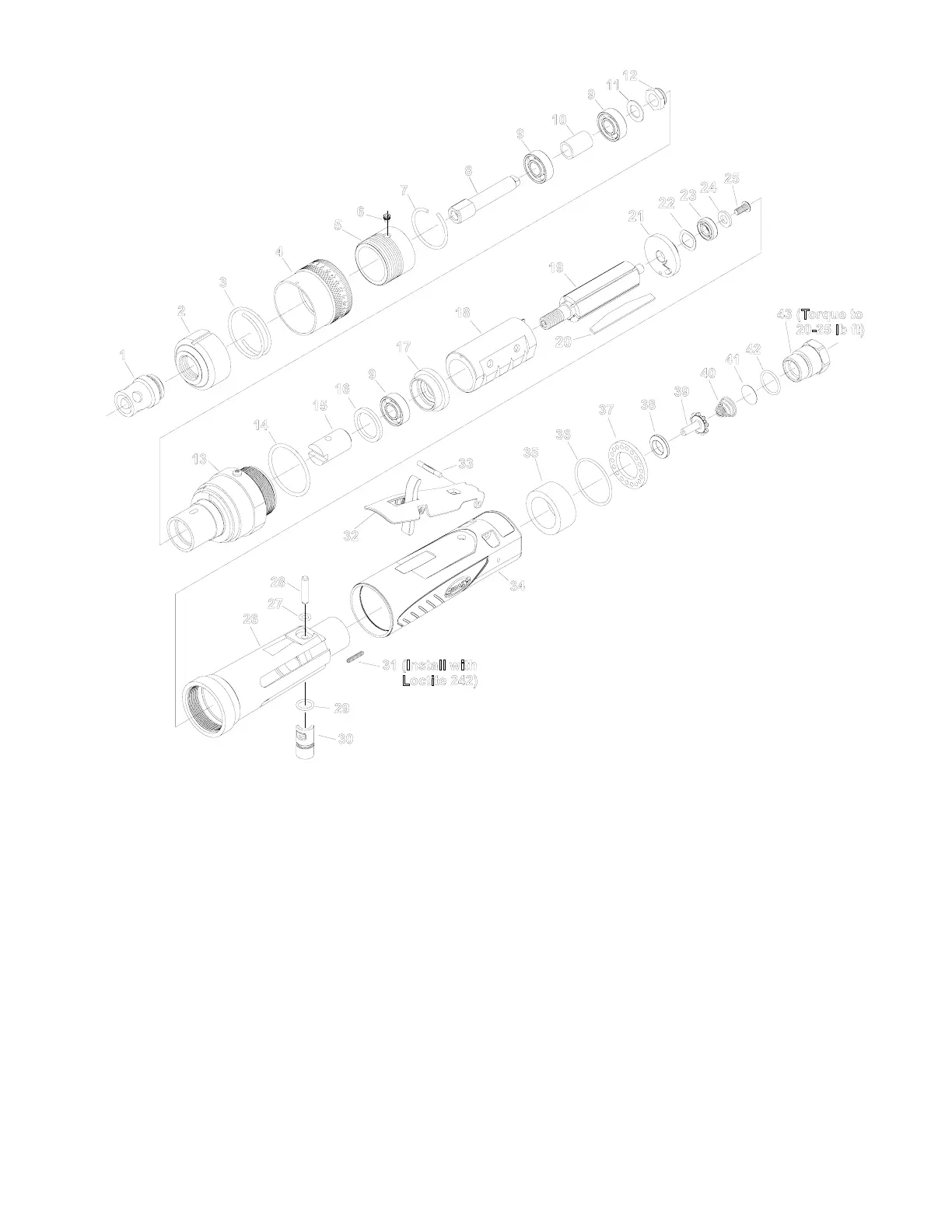

PARTS LIST FOR SRS10S SERIES STRAIGHT RIVET SHAVERS
SERIAL “A”
1. 2925-5 Cutter Skirt (5/16")
2925-6 Cutter Skirt (3/8")
2925-7 Cutter Skirt (7/16")
2925-8 Cutter Skirt (1/2")
2925-9 Cutter Skirt (9/16")
2925-10 Cutter Skirt (5/8")
2. 65164 Nose Piece
3. 65172 Compression Spring
4. 65163 Adjustment Ring Assembly
5. 65162 Nose Piece Slide
6. 65169 Screw
7. 65171 Compression Spring
8. 65170 Drive Shaft
9. 10257 Ball Bearing (3)*
10. 65167 Spacer
11. 25680 Washer
12. 65159 Locknut
13. SDR-71 Rivet Shaver Housing Assembly
14. 14333B O-Ring
15. SDR-70 Extension Adapter
16. SWG-94 Spacer
17. 74038 Front End Plate
18. 74030 Cylinder, Non-Reversing
Fig. Part
No. No. Description
*Order Quantity As Required
FURNISH CATALOG, SERIAL, AND MODEL NUMBER
WHEN ORDERING PARTS
Fig. Part
No. No. Description
19. 74028 Rotor
20. SP74048 Vane Set
21. 74023 Rear End Plate
22. 41338 Wave Washer
23. 10253 Ball Bearing
24. 74054 Washer
25. 74055 Screw
26. SDG-1 Housing
27. 67793 O-Ring
28. 74018 Torr Pin, 3/16 X 7/8
29. 14290 O-Ring
30. 74013 Regulator
31. 06402 Screw, 6-32 X 3/4 Set Soc Hex
32. SP79112 Lever Assembly
33. 74020 Groove Pin, 1/8 X 7/8 Type E
34e. 74004 Cover
35. 74016 Muffler
36. 04222 O-Ring, 1/16 X 1-5/16 X 1-7/16, F Exhaust
37. 74017 Exhaust Deflector (R Exhaust)
38. 74008 Throttle Valve Seat
39. 74009 Throttle Valve
40. 74010 Taper Spring
41. 74011 Screen
42. 14281B O-Ring, 1/16 X 5/8 X 3/4
43. 74012 Inlet Bushing
