Instruction for work
24
– Nobody is allowed to stay between the
tractor and the machine when lifting or
lowering the machine with 3 point
hydraulic hitch.
– Pay attention to put the mower on a flat
and solid ground.
7. Maintenance and periodical overhauls
7.1 Special safety instructions
– Repair works, maintenance, periodical
overhauls, cleaning and elimination of
funtctional disturbances must be
performed with the switched off drive
and stand still engine! Remove the
ignition key!
– When injured with splashed oil find
medical help immidiately.
– Consider other safety instructions to
prevent damages and accidents.
7.2 General
– To insure faultless working of the
machine and to reduce the wear out
always consider the maintenance
instructions and periodical overhauls.
This includes cleaning, greasing and
lubricating of built in parts and
components.

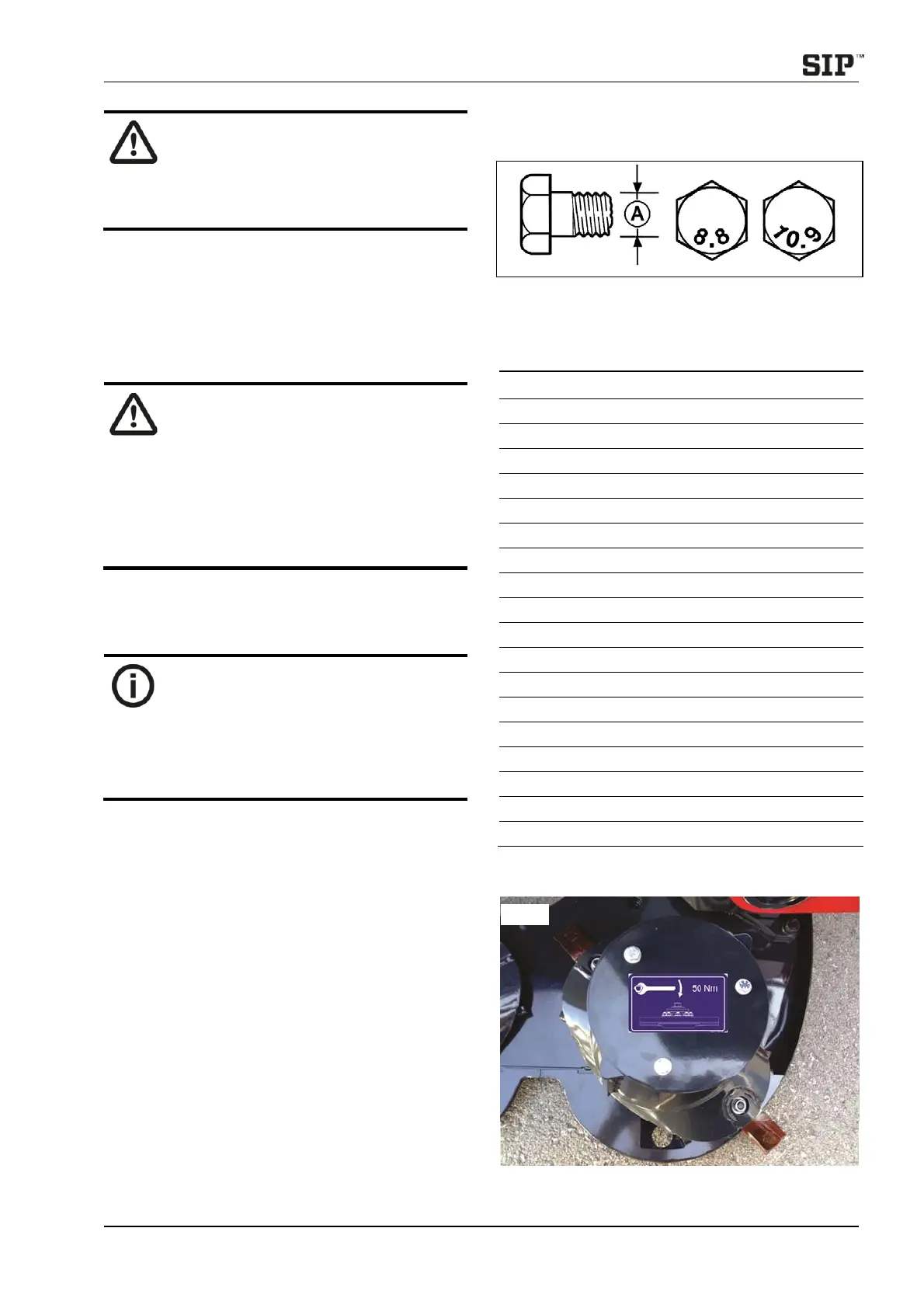

Screws and nuts tightening moment MA
(if not stated otherwise)
A = size of coil
A
Ø
8.8 10.9 12.9
M
A
(Nm)
M 4 3,0 4,4 5,1
M 5 5,9 8,7 10
M 6 10 15 18
M 8 25 36 43
M 10
49 72 84
M 12 85 125 145
M 14 135 200 235
M 14x1,5 145 215 255
M 16 210 310 365
M 16x1,5 225 330 390
M 20 425 610 710
M 24 730 1050 1220
M 24x1,5
M 24x2 800 1150 1350
M 27 1100 1550 1800
M 27x1,5 850
M 27x2 1150 1650 1950
M 30 1450 2100 2450
Nut tightening torque on the flange M
A
= 50 Nm
32 a
