24
PARTS LIST
Ref. No Description SIP Part No Ref. No. Description SIP Part No.
1 Engine PW01-00105 33 Battery Case PW01-00127
2 Muffler Seal PW01-00106 34 Flange Bolt M8x25 PW01-00128
3 Ignition Coil PW01-00107 35 Rubber Foot PW01-00129
4 Flange Bolt M6x20 PW01-00024 36 Self Tapping Screw 4x16 PW01-00104
5 Stator 230v PW01-00108 37 Flange Bolt M5x12 PW01-00039
6 Flange Bolt M5x30 PW01-00109 38 Flange Bolt M6 PW01-00042
7 Flywheel 2kw PW01-00110 39 Engine Base Support PW01-00130
8 Fan Pad PW01-00111 40 Voltage Regulator PW01-00131
9 Flange Bolt M12x1.25 PW01-00112 41 Flange Bolt M6x16 PW01-00011
10 Flywheel Fan PW01-00113 42 Vibration Mount Long PW01-00132
11 Starter Cover PW01-00114 43 Vibration Mount Short PW01-00133
12 Flange Bolt M6x12 PW01-00008 44 Ignition Coil Protector PW01-00134
13 Hi Voltage Wire Sleeve PW01-00115 45 Cross Head Screw M3x8 PW01-00070
14 Fan Cover PW01-00116 46 Winding PW01-00135
15 Flange Bolt M5x16 PW01-00013 47 Carburettor Gasket PW01-00136
16 Recoil Bracket Assembly PW01-00117 48 Carburettor Backlit Pad PW01-00137
16-1 Recoil Cover Bracket PW01-00117 49 Carburettor Connector PW01-00138
16-2 Rope Ring PW01-00117 50 Hex Bolt M6x25 PW01-00088
17 Cross Head Screw M5x12 PW01-00018 51 Washer M6 PW01-00086
18 Recoil PW01-00117 52 Spring Washer M6 PW01-00087
19 Flange Bolt M6x12 PW01-00008 53 Flange Bolt M6x25 PW01-00139
20 Fuel Tank Cap PW01-00118 54 Carburettor Complete PW01-00140
21 Fuel Tank Filter PW01-00119 54-1 Carburettor Pipe PW01-00140
22 Fuel Tank Cover PW01-00120 54-2 Carburettor Gasket PW01-00140
23 Fuel Tank Metal PW01-00121 54-3 Carburettor 2kw PW01-00140
24 Clip 10mm PW01-00048 54-4 Self Tapping Screw 4x12 PW01-00140
25 Fuel Tank Outlet PW01-00122 54-5 Air Filter Case PW01-00140
26 Clip 7mm PW01-00027 54-6 Filter Foam PW01-00140
27 Fuel Tank Rubber Seal PW01-00123 54-7 Flange Bolt M6x70 PW01-00140
28 Wire Protector PW01-00124 54-8 Foams PW01-00140
29 Self Tapping Screw 4x16 PW01-00104 54-9 Foam Cover PW01-00140
30 Cross Head Screw M5x12 PW01-00018 54-10 Self Tapping Screw 3x10 PW01-00140
31 Fuel Tank Support PW01-00125 54-11 Self Tapping Screw 3.5x10 PW01-00140
32 Inverter Block 2kw 230v PW01-00126 54-12 Filter Cover PW01-00140
9

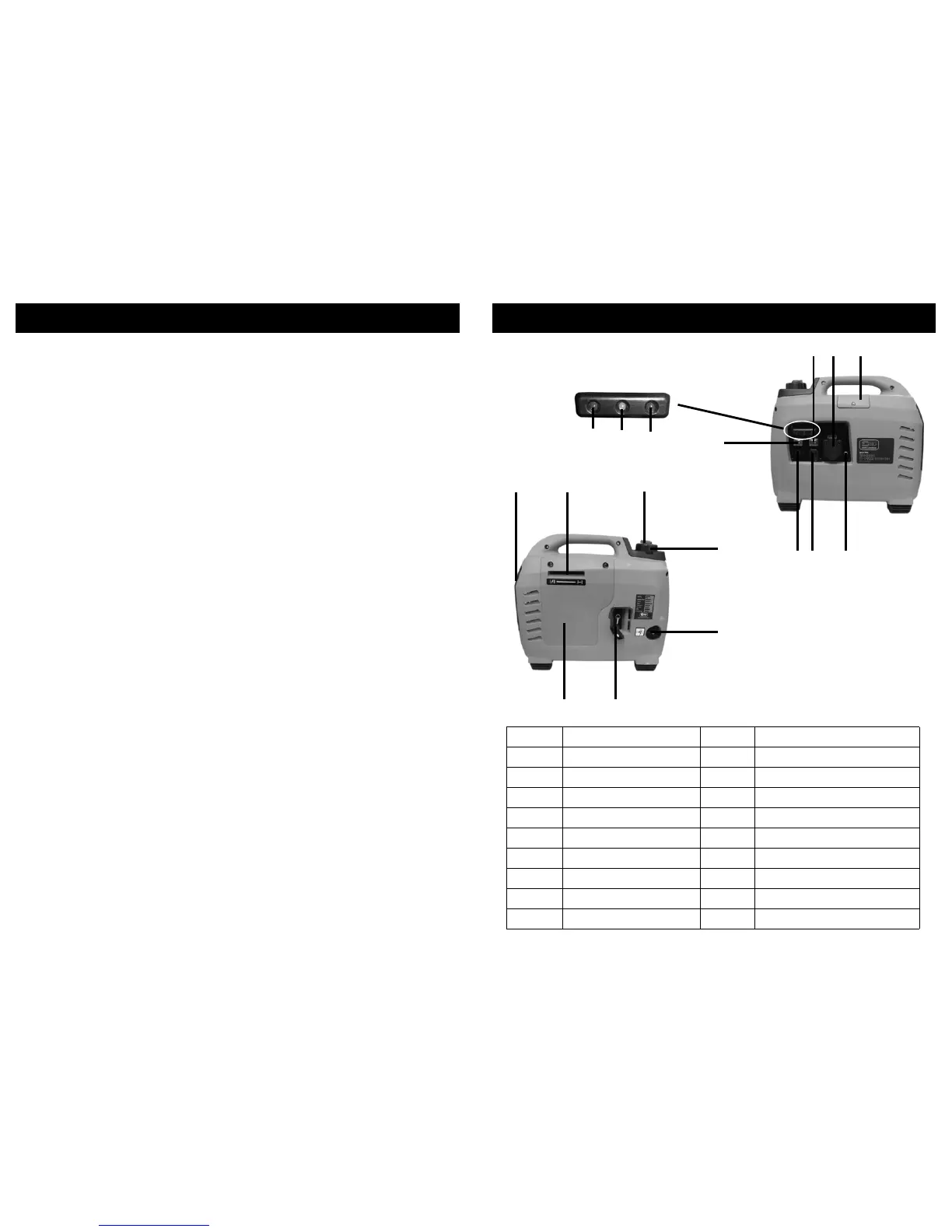

GETTING TO KNOW YOUR INVERTER GENERATOR
03951 Ti-1002:
Ref. No. Description Ref. No. Description
1 Exhaust 10 Maintenance Cover
2 Choke 11 Earth / Ground Terminal
3 Air Vent 12 DC Socket
4 Fuel Cap 13 DC Circuit Breaker
5 Fuel Valve 14 Engine Switch
6 Recoil Starter 15 Low Oil Indicator
7 Maintenance Cover 16 Pilot / Power Indicator
8 Economy Control Switch 17 Overload Indicator
9 AC Socket
4
5
3
2 1
6 7
8 9 10
13 12 11
14
17 16 15
