Operation instructions
SIPOS SEVEN ECOTRON
5
Commissioning
5 Commissioning
Procedure

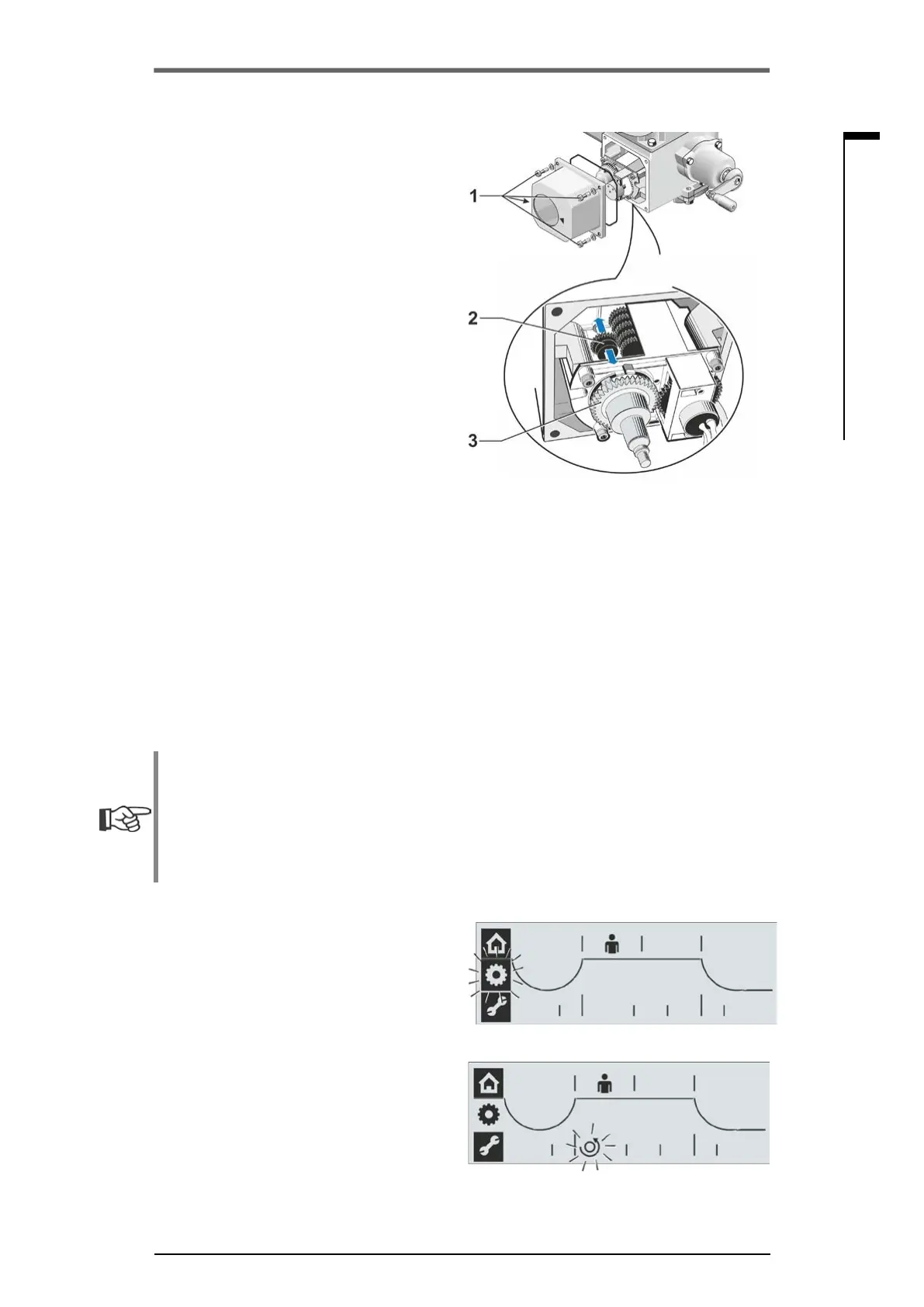

1. Loosen 4 screws (item 1)
from the signaling gear cover and remove
cover.
2. Round up rev/stroke to the next incremental
value (for incremental values refer to table
above).
3. Adjust the slide wheel (2) so that the gear rim
faces the desired incremental value on the
scale.
Push the slide wheel in the desired direction,
applying only little pressure.
Adjusting the slide wheel is facilitated by a
slight movement of the central wheel (3).
Do not yet t signaling gear cover.
The end positions have to be set and, if available,
the mechanical position indicator.
Fig�: Adjust signaling gear ratio
5�5�4 Adjust end positions
The end positions are directly set at the actuator.
Prerequisite for adjustment
■
The valve must not be jammed. Use the crank handle/hand wheel for release, if necessary. For
crank handle operation, refer to chapter “4.1 Crank handle, hand wheel“ on page 14.
■
For version with signaling gear only:
– The signaling gear should be set, refer to previous chapter "Adjust signaling gear ratio".
– If the signaling gear ratio was not set because the number of revolutions/stroke is not known,
proceed nevertheless as described in the following. Observe the note for operation step 15.
■
Abortion of end position setting
– Version with signaling gear: Once the central wheel (friction coupling) has been displaced,
abortion is no longer possible. Turn Drive Controller several times in ccw direction.
– Version without signaling gear:
The former end position setting remains unchanged unless another end position is set.
■
The end positions must not be set according to a specic sequence. The following operation
steps describe end position OPEN adjustment.
Access to the ’End position‘ menu
The ‘End position’ menu can only be accessed
in ‘Local operation’ mode (according to „Access
to the Parameter menu“ on page 28).
1. Select ‘End position’ menu: Turn Drive Con-
troller until the frame of the gear wheel sym-
bol starts to ash (g. 1). Gear wheel symbol
is shown as inverted representation.
2. Conrm selection: Hold down Drive
Controller for approx� 3 s!
Gear wheel is continuously illuminated and
– the symbol of the currently set closing
direction is blinking (g. 2).
– the OPEN symbol is blinking for 2SQ7.
Continue with step 5.
Fig� 1: Select End position menu
Fig� 2: End position menu is active, ccw
closing direction
