Sipromac 300 - Page 14

MACHINE
PART
ITEM
MAT.
CNC
DWG BY
APP. BY
DATE
DATE
QTY.
DEPT.
SIPROMAC
ST-GERMAIN DE GRANTHAM
QUEBEC CANADA
DEPT. TOL.
USINAGE
TOLERIE
SOUDAGE
METRIC
± 0.1
± 0.5
± 0. 5
INCH
± 0.004"
± 0.020"
± 0.020"
N.T.S.
NO.
005D0596
S.L.
1
M-I
300

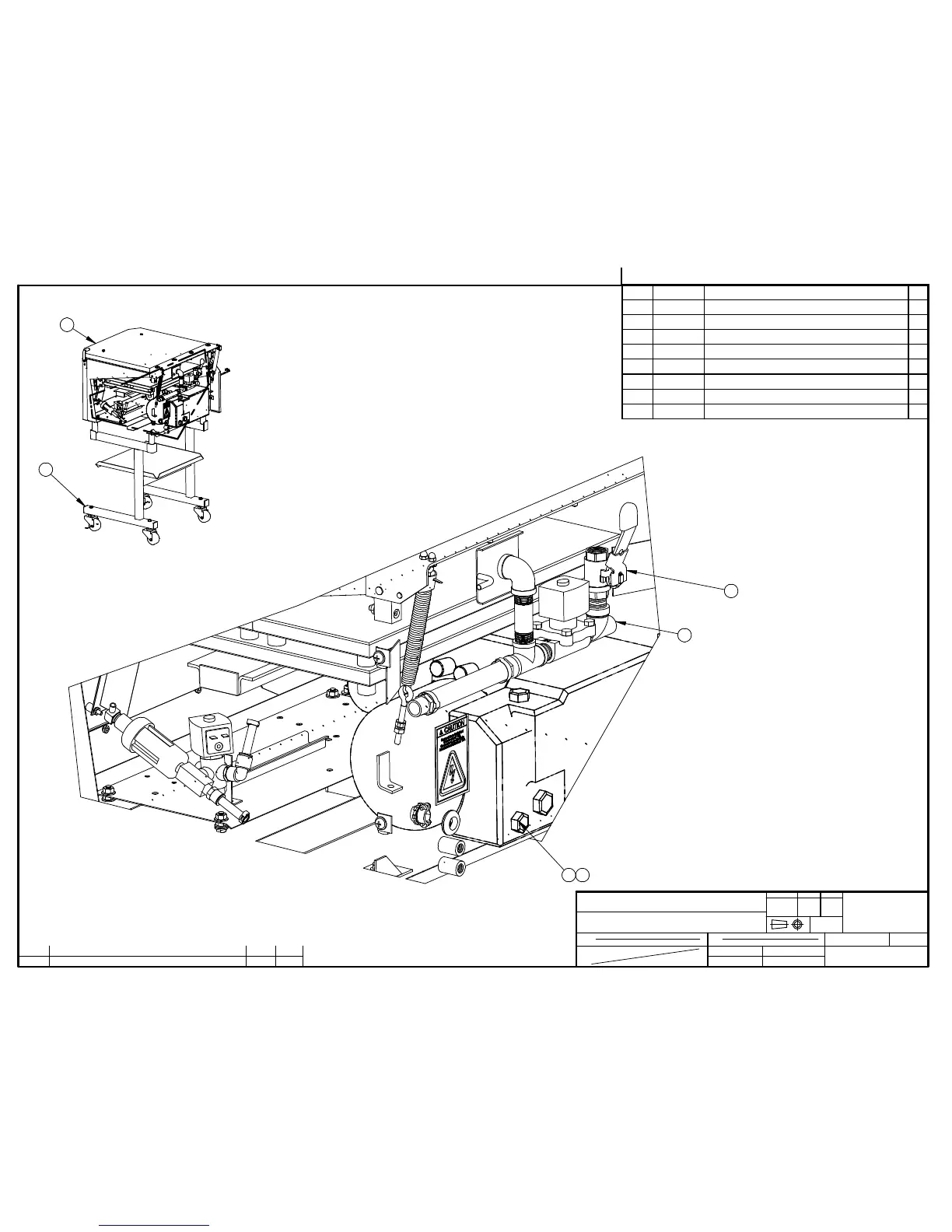

MACHINE ASSEMBLY WITH OPTION
13-11-22
005D0596
LET. MODIFICATION DATE INT.
ITEM PART # DESCRIPTION QT.
1 004A4147 MACHINE ASSEMBLY 1
2 005B1031 STAND ASSEMBLY 19" (OPTION) 1
3 125-1021 BUSCH KB-0020 220-240V/1PH/50-60HZ 1
4 114-2009 SILENCER 1/2 NPT TOPRING 1
6 005A1420 SOFT AIR OPTION 1
8 005A1355 SEAL BAR ASSEMBLY W/SUPP. TWIN SEAL 1
9 005A1356 SEAL BAR ASSEMBLY W/SUPP. BAG CUT 1
10 125-1020 BUSCH KB-0020 115V/1PH/60HZ 1
1
2
A
DETAIL A
4
6
3 10
INSTALLER SUR LA VALVE LORS
DE L'OPTION SOFT AIR
