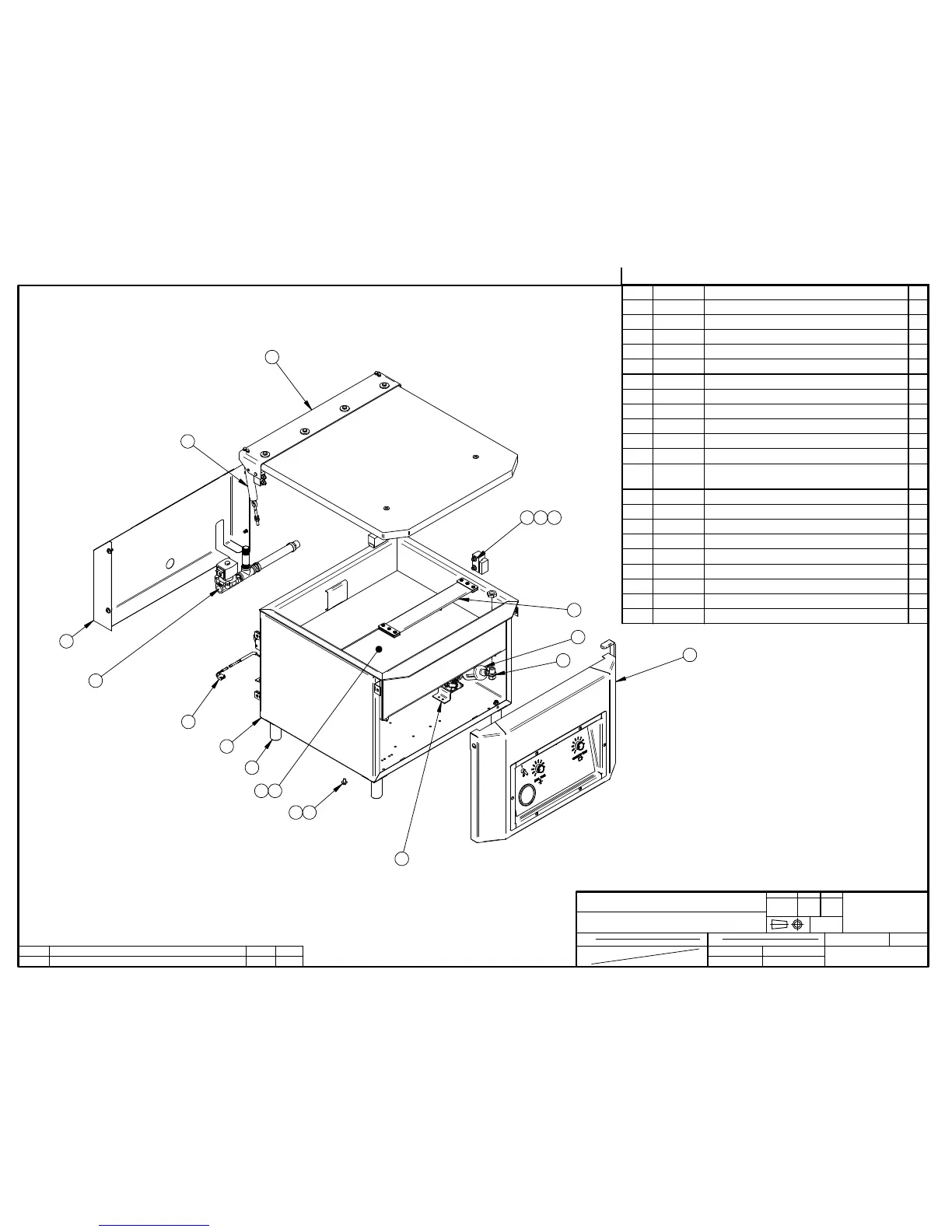

ITEM PART # DESCRIPTION QT.
1 004B0229 VACUUM PRE-ASSEMBLY 1
2 005B0266 COVER ASSEMBLY 1
3 004A1224 SPRING PRE-ASSEMBLY 2
4 005D0595 FRONT PANEL ASSEMBLY 1
6 004A4133 VALVE ASSEMBLY PUMP 1
7 004C3857 REAR PANNEL PRE-ASS'Y 1
8 051-0740 WASHER 1/4" FLAT S/S 8
9 051-0581 NUT 1/4"-20 NYLON LOCK S/S 4
10 051-0930 BOLT M6 x 10 S/S 4
11 004A4112 NSF FOOT 4
12 004A3374 LIMIT SWITCH ASS'Y 1
14 036-0400 WIRE CONNECT. 3/8'' NPT
CD09/O-RING/NUT
2
15 036-0200 GROMMET 5/8"IDx1 1/8"OD RUBBER 1
16 036-0390 CABLE CONNECT.3/8"-1/2"METAL 1
17 005-0532 BELLOWS ASSEMBLY 1
18 002-0029 LEFT SEAL BAR GUIDE BLOCK 1
19 002-0030 RIGHT SEAL BAR GUIDE BLOCK 1
20 005A0278 FILLER PLATE ASS'Y 1
21 005A0364 HALF FILLER PLATE ASS'Y 2
22 001A0564 VALVE SUPPORT 1
23 004A4144 VALVE ASSEMBLY VACCUM SENSOR 1
6
2
3
14
1998
17
108
4
23
22
21
