Sipromac 300 - Page 24

005A1356
J.G.
LIST
M-I-(M)
300, 300D, 350 & 350D

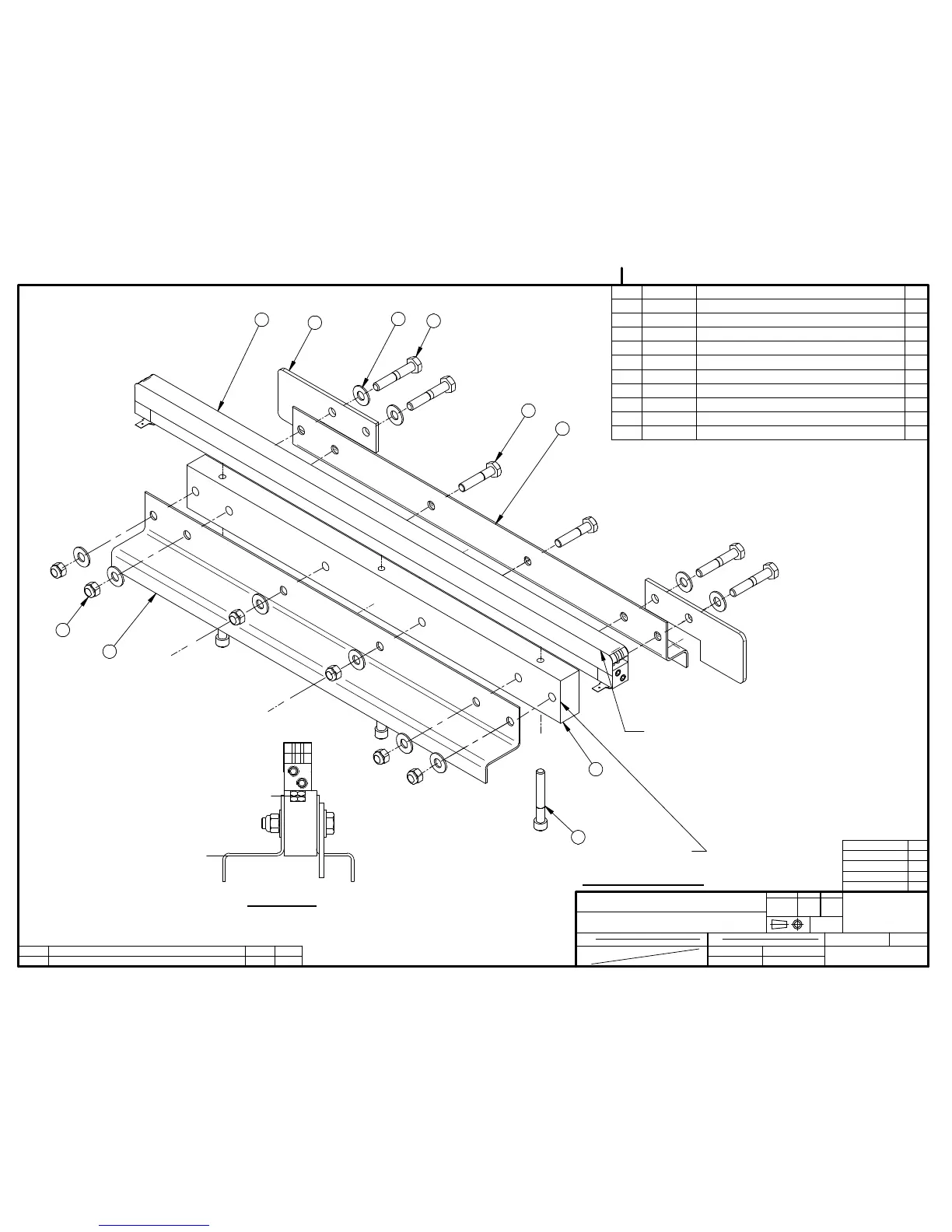

SEAL BAR ASSEMBLY W/SUPPORT
12-09-24
005A1356
MACHINE
PART
ITEM
MAT.
CNC
DWG BY
APP. BY
DATE
DATE
QTY.
DEPT.
SIPROMAC
ST-GERMAIN DE GRANTHAM
QUEBEC CANADA
DEPT. TOL.
USINAGE
TOLERIE
SOUDAGE
METRIC
± 0.1
± 0.5
± 0. 5
INCH
± 0.004"
± 0.020"
± 0.020"
N.T.S.
NO.
LET.
MODIFICATION
DATE INT.
A
REDESSINÉ ÉTAIT 005B0558
12-09-24 J.G.
QTY
MACHINE
2
350D
1
350
2
300D
1
300
ITEM PART # DESCRIPTION QT.
1 004-0355 BAG CUT SEAL BAR PRE-ASSEMBLY 1
2 002-0512 SEAL BAR SUPPORT 1
3 051-0256 BOLT 1/4"-20nc. X 1 3/4" CAP SKT S/S 3
4 001-1960 EXTERIOR BELLOWS COVER 1
5 001-1856 EXTERIOR BELLOWS COVER 1
6 001A6229 SEAL BAR GUIDE 2
7 051-0740 WASHER 1/4" FLAT S/S 10
8 051-0250 BOLT ¼"-20nc. X 1½" S/S 4
9 051-0581 NUT 1/4"-20 NYLON LOCK S/S 6
10 051-0230 HEX BOLT 1/4-20 x 1 1/4" SS 2
4
5
6
8
10
7
9
ÉLÉMENT COUPANT CE COTÉCI.
CUTTING ELEMENT THIS SIDE.
-BAG CUT OPTION-
CE COTÉ DU SUPPORT ÉGAL AVEC DE LA BARRE DE SCELLAGE.
THIS SIDE OF SUPPORT TO FIT FLUSH W/ SEAL BAR.
-END VIEW-
3
1
2
ITEM #2 ÉGAL AVEC L'ITEM #4 & #5.
ITEM #2 FLUSH WITH ITEM #4 & #5.
