Sipromac 300 - Page 32

MACHINE
PART
ITEM
MAT.
CNC
DWG BY
APP. BY
DATE
DATE
QTY.
DEPT.
SIPROMAC
ST-GERMAIN DE GRANTHAM
QUEBEC CANADA
DEPT. TOL.
USINAGE
TOLERIE
SOUDAGE
METRIC
± 0.1
± 0.5
± 0. 5
INCH
± 0.004"
± 0.020"
± 0.020"
N.T.S.
NO.
005A1420
S.L.
1
300 @ 350D
SOFT AIR OPTION
13-11-22
005A1420
LET. MODIFICATION DATE INT.
3
2
1

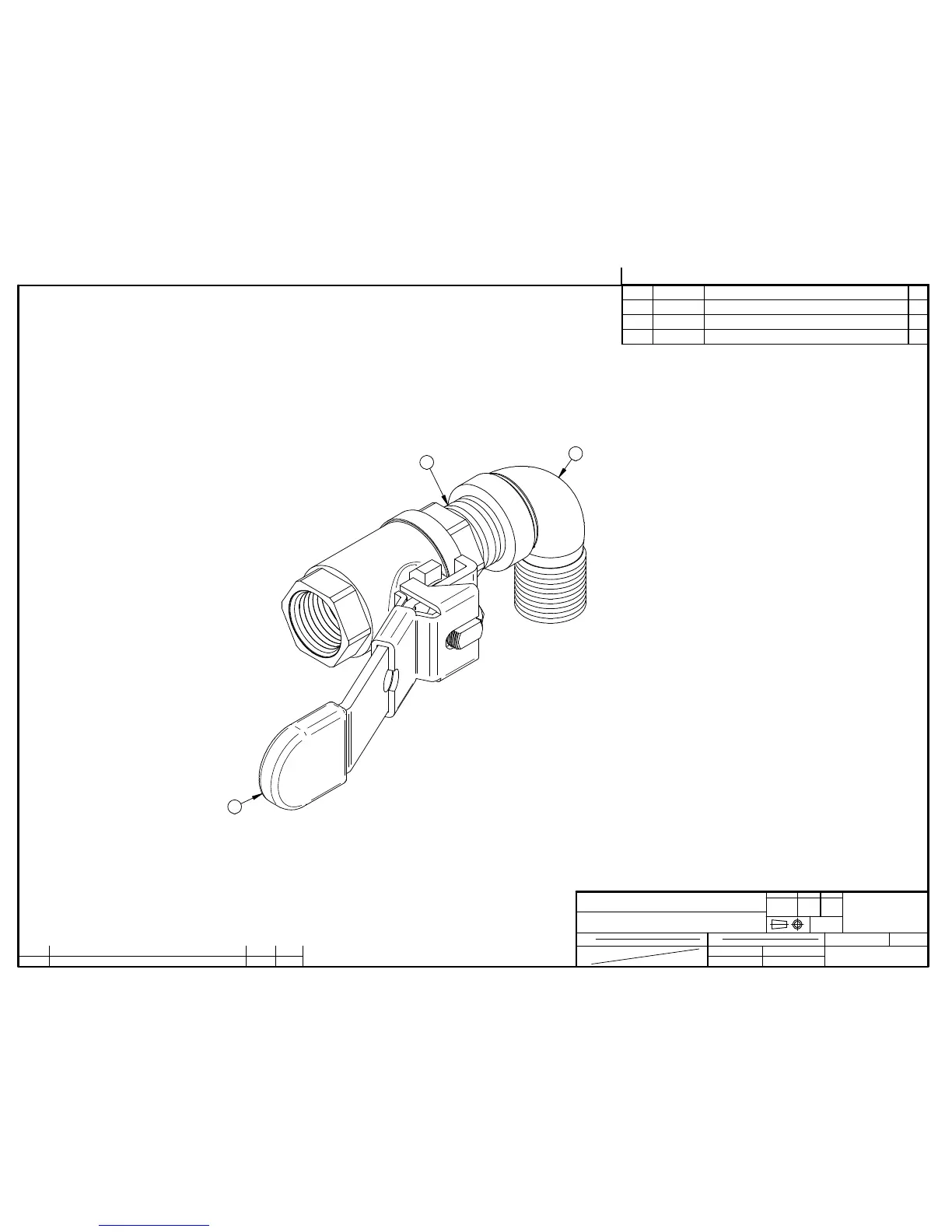

ITEM PART # DESCRIPTION QT.
1 107-0035 BALL VALVE 1/2 NPT SS WITH LOCKING 1
2 100-0230 CLOSE NIPPLE ½" npt, S/S 1
3 100-0075 STREET ELBOW 1/2" NPT SS 1
